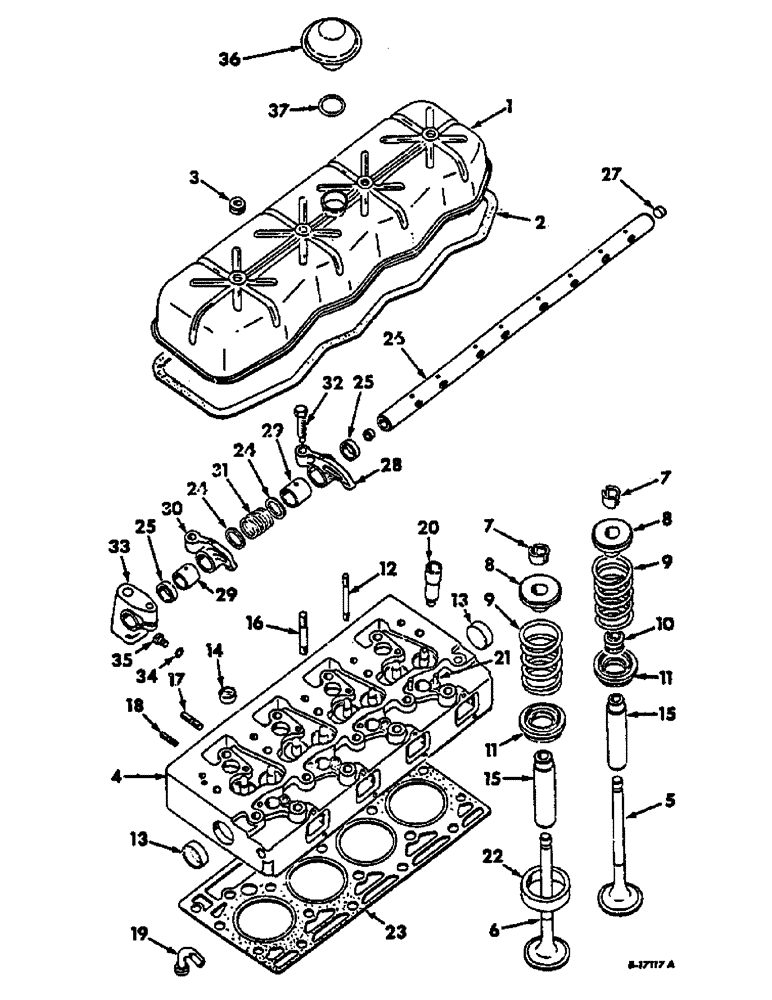

Запчасти Case IH 574 (12-036) - CYLINDER HEAD AND RELATED PARTS Power

1

3055181R1

COVER

ASSY, VALVE HOUSING

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

4шт.

3138637R1

CUP WASHER

WASHER, VALVE HOUSING COVER

4шт.

2

3138642R1

GASKET

VALVE HOUSING COVER

1шт.

3

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

VALVE HOUSING COVER

4шт.

4

3132160R96

HEAD

W/VALVES, GUIDES AND STUDS CYL, CONSISTS OF

1шт.

3055058R2

SPRING CUP

CAP

8шт.

3055057R91

ROCKER ARM COTTER

KEY

8шт.

3055367R94

CYLINDER HEAD

1шт.

3055344R1

SLEEVE

INSERT

4шт.

3055022R1

GUIDE

8шт.

933750R1

PLUG,M32, Conical

4шт.

933574R1

PLUG,M50, Conical

2шт.

3055412R1

STUD

8шт.

3055221R1

STUD

8шт.

3055663R1

STUD

8шт.

3055220R1

STUD,1/2" - 20 x 3.18"

5шт.

3055060R1

SPRING

8шт.

SEAL

8шт.

3055059R1

ROTATOR

8шт.

3055055R2

OVERSIZE INLET VALVE

4шт.

3059459R2

VALVE

4шт.

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

9/16-12 X 5 HEX HD

8шт.

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

9/16-12 X 5-3/4 HEX HD

10шт.

5

3055055R2

OVERSIZE INLET VALVE

INTAKE

4шт.

6

3059459R2

VALVE

EXHAUST

4шт.

7

3055057R91

ROCKER ARM COTTER

KEY ASSY, SPRING LOCK VALVE

1шт.

8

3055058R2

SPRING CUP

CAP, VALVE SPRING RETAINER

8шт.

9

3055060R1

SPRING

VALVE

8шт.

10

SEAL, VALVE STEM -ORDER PACKAGE 3136407R91-

8шт.

11

3055059R91

CAP

ROTATOR

8шт.

12

3132764R1

ADAPTER

4шт.

13

933574R1

PLUG,M50, Conical

EXPANSION 1.97

2шт.

14

933750R1

PLUG,M32, Conical

EXPANSION 1.26

4шт.

15

3055022R1

GUIDE

VALVE STEM

8шт.

16

3055220R1

STUD,1/2" - 20 x 3.18"

ROCKER SHAFT BRACKET

5шт.

17

3055663R1

STUD

EXHAUST MANIFOLD

8шт.

18

3055221R1

STUD

WATER COLLECTING PIPE

8шт.

19

-NOT USED-

1шт.

20

3055344R1

SLEEVE

INSERT, NOZZLE HOLDER

4шт.

21

3055412R1

STUD

NOZZLE HOLDER

8шт.

22

3132362R1

VALVE SEAT

EXHAUST VALVE SEAT .004 O/S

4шт.

22

3132361R1

INSERT

INSERT, EXHAUST VALVE SEAT .016 O/S

4шт.

23

3138959R2

GASKET

CYLINDER HEAD

1шт.

24

3055669R1

THRUST WASHER

THRUST ROCKER ARM

8шт.

25

3055068R1

BUSHING,22mm ID x 30mm OD x 6.8mm L

DISTANCE

7шт.

26

3055070R21

SHAFT HOUSING

ASSY, W/PLUG 933565R1, ROCKER ARM

1шт.

27

933565R1

PLUG,M14, Conical

EXPANSION 14MM DIN 443

2шт.

28

3055072R21

ROCKER ARM

ASSY, W/BUSHING 3132019R1, INTAKE ROCKER

4шт.

3132138R1

NUT

ROCKER ARM SHAFT

4шт.

29

3132019R1

BUSHING,21.15mm ID x 26.09mm OD x 25.4mm L

8шт.

30

3055073R21

ROCKER ARM

ASSY, W/BUSHING 3132019R1, EXHAUST ROCKER

4шт.

3132138R1

NUT

ROCKER ARM SHAFT

4шт.

31

3055075R2

SPRING

ROCKER ARM

4шт.

32

3132137R1

ADJUSTMENT SCREW

Rocker arm

8шт.

33

3144177R91

BRACKET

PACKAGE, BRACKET ROCKER ARM SHAFT

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 HEX

5шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5шт.

103320

LOCK WASHER,5/16"

5шт.

34

933087R1

PACKING RING

1шт.

35

933127R1

PLUG

1шт.

36

-NOT USED-

1шт.

37

-NOT USED-

1шт.

ref

Part No.

English Remarks

1шт.

3055370R1

STIRRUP

SHACKLE, ENGINE MTG FRONT, NOT ILLUSTRATED

1шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

3/4-10 X 1-1/8 HEX HD CAP, NOT ILLUSTRATED

1шт.

3132292R91

ROCKER

PACKAGE, INTAKE ROCKER ARM -INCLUDES REF NOS 28, 32 AND ATTACHING HARDWARE-, NOT ILLUSTRATED

1шт.

3132293R91

ARM ASSY.

PACKAGE, EXHAUST ROCKER ARM -INCLUDES REF NOS 30, 32 AND ATTACHING HARDWARE-, NOT ILLUSTRATED

1шт.

3136407R91

SEAL KIT

PACKAGE, SERVICE VALVE STEM, NOT ILLUSTRATED -CONSISTS OF

2шт.

SEAL

6шт.

SLEEVE

1шт.
