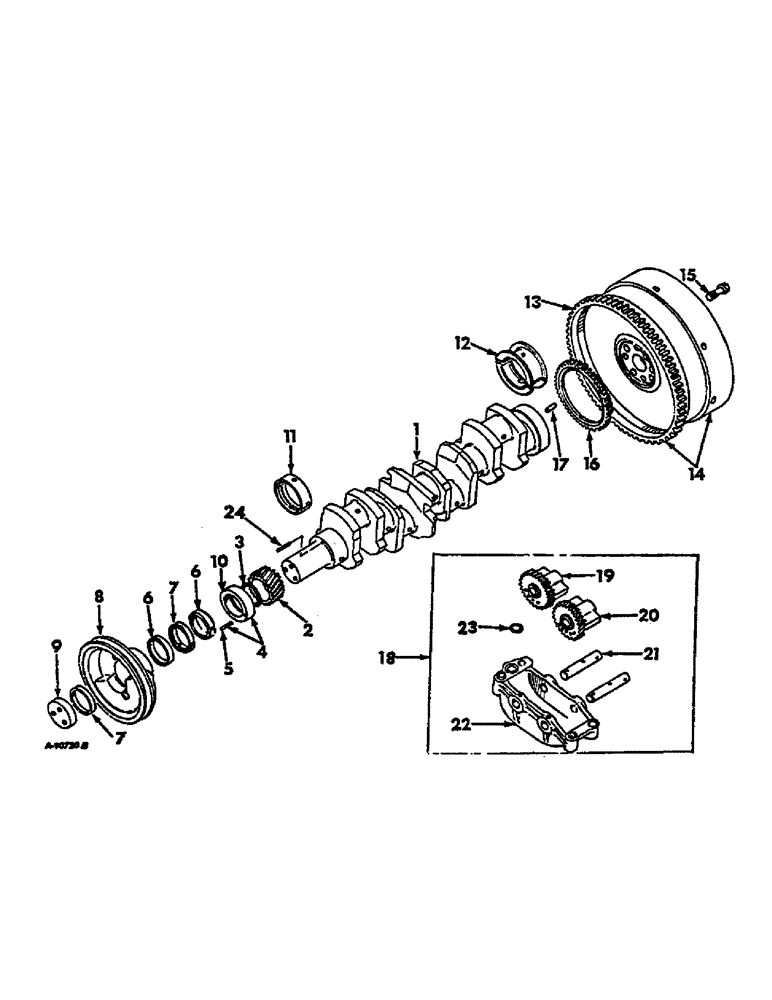

Запчасти Case IH 574 (12-034) - CRANKSHAFT, FLYWHEEL AND BEARINGS Power

1

3132982R94

CRANKSHAFT BEARING

W/BEARING STD, CONSISTS OF

1шт.

CRANKSHAFT

1шт.

3055028R1

PINION

1шт.

3136237R1

PINION

GEAR

1шт.

37-1616

DOWEL,3/8" x 1"

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3055129R21

CRANKSHAFT BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING

4шт.

3055351R91

BEARING ASSY

4шт.

2

3055028R1

PINION

GEAR, CRANKSHAFT

1шт.

3

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

4

RING ASSY, DISTANCE W/PIN -ORDER PACKAGE 3136724R91-

1шт.

5

932681R1

DOWEL,4mm OD x 24mm L

Pin, groove

1шт.

6

3055152R91

RING

ELEMENT, SPRING TIGHTENER -USED W/PULLEY 3136043R1-

2шт.

7

3138874R1

BEARING WASHER

RING

1шт.

7

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

PRESSURE -USED W/ PULLEY 3136043R1-

2шт.

8

3138838R2

PULLEY

CRANKSHAFT

1шт.

8

3136043R1

PULLEY

CRANKSHAFT -ORDER PULLEY 3138838R2 W/RING 3138874R1-

1шт.

9

3055154R1

WASHER

PRESSURE

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

10

RING, DISTANCE -ORDER PACKAGE 3136724R91-

1шт.

11

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, MAIN STD

4шт.

11

3056832R21

BEARING ASSY

ASSY, MAIN .010 UNDERSIZE

4шт.

11

3056877R21

BEARING ASSY

ASSY, MAIN .020 UNDERSIZE

4шт.

11

3055779R21

BEARING ASSY

ASSY, MAIN .030 UNDERSIZE

4шт.

12

3055129R21

CRANKSHAFT BEARING

ASSY, MAIN STD

1шт.

12

3056820R11

BEARING ASSY

ASSY, MAIN .010 UNDERSIZE

1шт.

12

3056875R11

BEARING ASSY

ASSY, MAIN .020 UNDERSIZE

1шт.

12

3055776R11

BEARING ASSY

ASSY, MAIN .030 UNDERSIZE

1шт.

13

60883H

RING GEAR

1шт.

14

3136044R11

ENGINE FLYWHEEL

ASSY

1шт.

15

3132159R2

BOLT,Hex, 1/2" - 20 x 63.5mm

FLYWHEEL

7шт.

16

3136237R1

PINION

GEAR, BALANCER DRIVE

1шт.

17

37-1616

DOWEL,3/8" x 1"

DOWEL

1шт.

18

3132874R94

HOUSING

BALANCER ASSY, W/PINS 932229R1 AND 932299R1 -LESS REF NO 23-

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 HEX HD

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

103322

LOCK WASHER,7/16"

2шт.

19

3132877R11

WEIGHT

ASSY, IDLER

1шт.

20

3132876R11

WEIGHT

ASSY, DRIVE

1шт.

21

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSY, WEIGHT

2шт.

22

3132875R41

HOUSING

ASSY

1шт.

932229R1

SPLIT PIN/SAFETY PIN

ROLL

2шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

Roll

2шт.

23

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

24

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.
