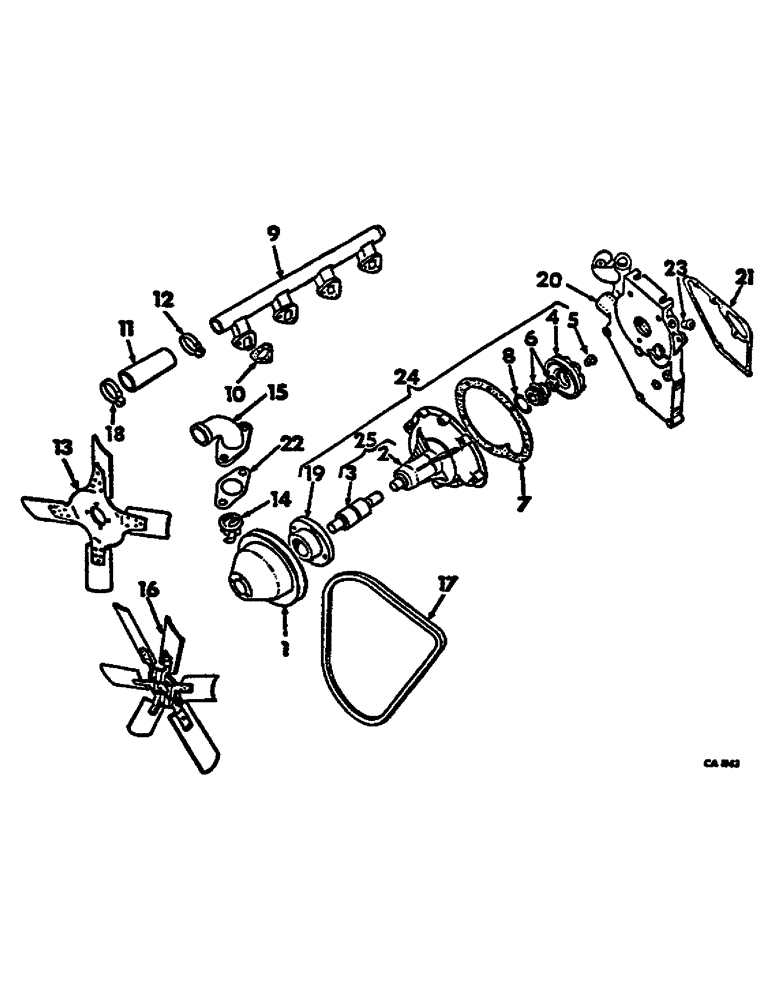

Запчасти Case IH 574 (12-026) - FAN, THERMOSTAT AND WATER PUMP Power

1

401124R1

PULLEY

WATER PUMP

1шт.

2

BODY, PUMP -NOT SERVICED SEPARATELY ORDER 3132677R21-

1шт.

3

3055191R91

BEARING ASSY

PUMP -OPTIONAL W/3055192R91-

1шт.

3

3055192R91

BEARING ASSY,38.1mm OD x 129.5mm L

PUMP -OPTIONAL W/3055191R91-

1шт.

4

3055211R2

IMPELLER

PUMP

1шт.

5

3055308R1

PLUG

CLOSING

1шт.

6

3055285R92

STRIPPER PACKAGE

WATER PUMP RECONDITIONING -CONSISTS OF

1шт.

*

RING

1шт.

*

PACKING

1шт.

*

RING

1шт.

3055177R1

GASKET

1шт.

7

3055177R1

GASKET

PUMP

1шт.

8

O-RING, SEAL -NOT SERVICED SEPARATELY ORDER PACKAGE 3055285R92-

1шт.

9

3055255R1

MANIFOLD

PIPE, WATER

1шт.

425-115

NUT,5/16"-24, G5

8шт.

933570R1

WASHER

DISC, SPRING

7шт.

933161R2

SEALING RING

RING, PACKING

1шт.

712616R1

PLUG,Hex, M14 x 1.5

Packing

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

1шт.

10

3055306R1

GASKET

WATER PIPE

4шт.

11

3132144R1

HOSE,38.60 mm ID, 50.70 mm ID x 112.00 mm

Connecting

1шт.

12

3136499R1

CLAMP

HOSE -OPTIONAL W/755023R91-

1шт.

12

755023R91

STRAP

CLAMP, HOSE -OPTIONAL W/3136499R1-

1шт.

13

527472R1

FAN

BLADE ASSY, -SYNCHROMESH DRIVE TRACTORS-

1шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

1/4-28 X 3/4 HEX HD CAP

4шт.

103319

LOCK WASHER,1/4"

4шт.

14

3059676R91

THERMOSTAT

1шт.

15

3132142R2

FLANGE

WATER OUTLET

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

16

527473R1

FAN

BLADE ASSY, -HYDROSTATIC DRIVE TRACTORS-

1шт.

443065

SCREW 1/4-28 X 3-1/2 HEX HD CAP

4шт.

103319

LOCK WASHER,1/4"

4шт.

17

527470R1

V-BELT

FAN -TRACTORS FITTED W/GNERATOR-

1шт.

17

527470R1

V-BELT

FAN -TRACTORS FITTED W/ALTERNATOR, 574, Start Serial: 11094

1шт.

17

527470R1

V-BELT

FAN -TRACTORS FITTED W/ALTERNATOR, 2500, Start Serial: 630

1шт.

17

3113342R1

BELT,0.53" W

Fan -Tractors fitted w/Alternator - 574, Serial Range: -11093

1шт.

17

3113342R1

BELT,0.53" W

Fan -Tractors fitted w/Alternator - 2500, Serial Range: -629

1шт.

18

3136501R1

CLAMP

HOSE -OPTIONAL W/755023R91-

1шт.

18

755023R91

STRAP

CLAMP, HOSE -OPTIONAL W/3136501R1-

1шт.

19

3132146R1

HUB

PULLEY -OPTIONAL W/3132148R1-

1шт.

19

3132148R1

HUB

PULLEY -OPTIONAL W/3132146R1-

1шт.

20

3136678R1

HOUSING

CARRIER, WATER PUMP

1шт.

445686

PLUG

3/8-18 AUTO HEX HD PIPE

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

1шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

5шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

.335 X .748 X .098

1шт.

21

3055999R1

GASKET

WATER PUMP CARRIER

1шт.

22

3132143R1

GASKET

WATER OUTLET

1шт.

23

444630

PLUG,Hex Hd, 1/2"-14

1/2-14 AUTO HEX HD PIPE

1шт.

24

3136053R91

WATER PUMP

ASSY

1шт.

24

3136053R92GV

WATER PUMP

Value, Water Pump Assy.

1шт.

24

735102C91

REMAN-WATER PUMP

Reman for New PN3136053R91

1шт.

24

1928123C1

CORE-WATER PUMP

Return Number

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

8шт.

3050129R1

LOCK WASHER

WASHER 5/16 MED LOCK

8шт.

25

3132677R21

BODY

ASSY

1шт.
