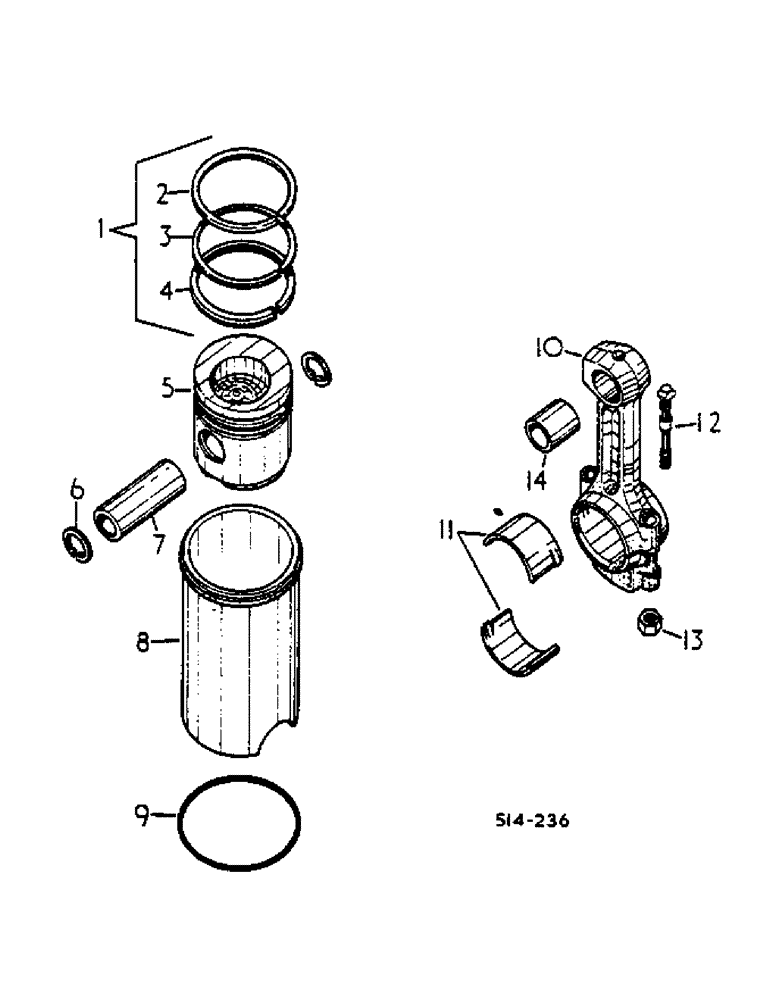

Запчасти Case IH 574 (12-024) - CONNECTING ROD, PISTON AND SLEEVE Power

1

3139594R91

PISTON RING

1шт.

1

671510R91

SET OF RINGS

PISTON -OPTIONAL -USED W/3 RING PISTONS-

1шт.

1

3059262R92

PISTON RING SET

-USED W/4 RING PISTONS-

1шт.

2

3055600R2

RING

COMPRESSION -FIRST- -USED W/4 RING PISTONS-

4шт.

2

RING, COMPRESSION FIRST -USED W/3 RING PISTONS- -ORDER SET 3139594R91 OR 671510R91-

4шт.

3

3055332R1

RING

SPARE PART PISTON COMPRESSION SECOND -USED W/4 RING PISTONS-

4шт.

3

RING, COMPRESSION -SECOND- -USED W/3 RING PISTONS- -ORDER SET 3139594R91 OR 671510R91-

4шт.

4

3055334R91

RING, COMPRESSION -FOURTH- -USED W/4 RING PISTONS-

4шт.

4

RING, COMPRESSION -THIRD- -USED W/3 RING PISTONS- -ORDER SET 3139594R91 OR 671510R91

4шт.

5

3139591R92

PISTON ASSY

W/SLEEVE -3 PISTON RING-

4шт.

5

3138882R92

PISTON

PISTON ASSY, W/SLEEVE -4 PISTON RING- -ORDER PISTON 3139591R92

4шт.

6

933327R1

SNAP RING,M36, Int

PISTON PIN RETAINER

8шт.

7

3055217R2

PISTON PIN

PISTON

4шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE, CYL

4шт.

9

3055021R2

O-RING

CYL SLEEVE PACKING

4шт.

10

3055030R24

ROD, CONNECTING

ASSY, W/TWO BOLTS AND BUSHING

4шт.

11

3055351R91

BEARING ASSY

ASSY, CONNECTING ROD

4шт.

11

3056834R11

BEARING ASSY

ASSY, .010 U/S

4шт.

11

3056879R11

BEARING ASSY

ASSY, .020 U/S

4шт.

11

3055781R11

BEARING ASSY

ASSY, CONNECTING ROD .030 U/S

4шт.

12

3055033R11

BOLT

Connecting rod w/nut

8шт.

13

NSS

NOT SOLD SEPARAT

NUT, CONNECTING ROD BOLT

8шт.

14

3132018R1

BUSHING

PISTON PIN

4шт.

ref

Part No.

English Remarks

1шт.

3055333R1

RING

COMPRESSION - THIRD - - USED W/4 RING PISTONS -, NOT ILLUSTRATED

4шт.
