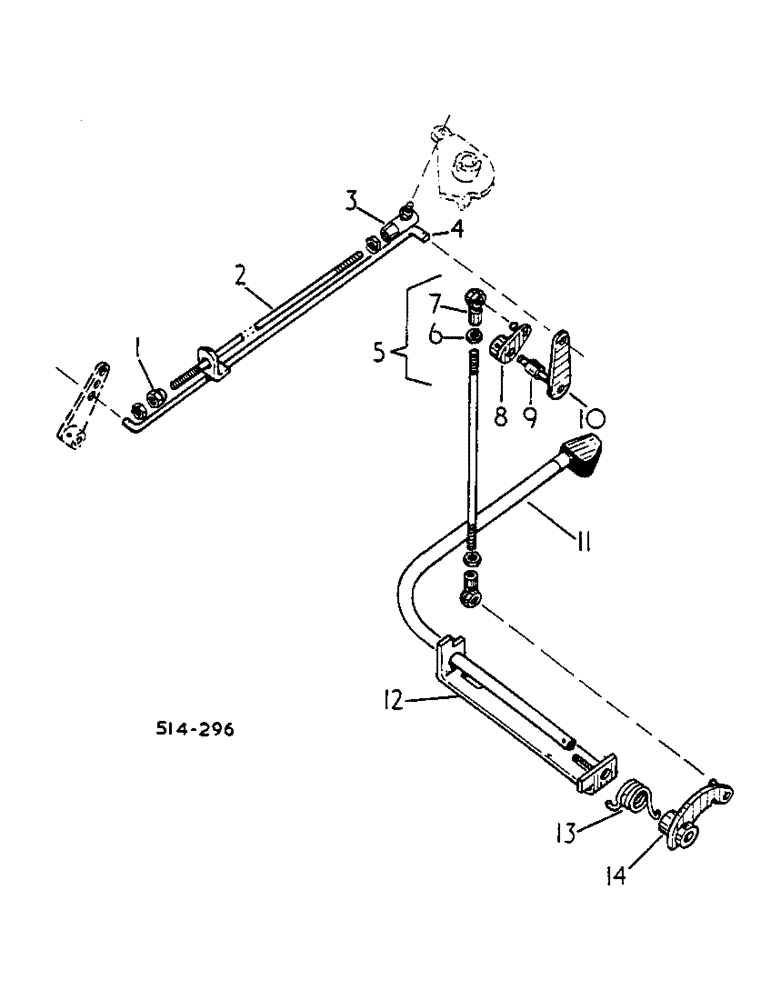

Запчасти Case IH 574 (12-020) - FOOT ACCELERATOR Power

1

528776R1

NUT

FOOT ACCELERATOR PICK-UP ROD SWIVEL

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

2

528775R1

ROD

FOOT ACCELERATOR PICK-UP

1шт.

3

109400

STEERING KNUCKLE

JOINT 1/4-28 BALL

1шт.

3

19318R1

BALL JOINT

1/4-28 -OPTIONAL-

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

103319

LOCK WASHER,1/4"

1шт.

4

528767R1

ROD ASSY.

BELLCRANK

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

2шт.

5

532106

ROD ASSY.

CONNECTING

1шт.

6

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

7

3068537R1

TRUNNION

END, CONNECTING ROD

2шт.

8

532104R1

LEVER ASSY.

BELLCRANK INNER

1шт.

9

754603R1

SPACER

1шт.

10

532100R1

ARM

ASSY, BELLCRANK

1шт.

120394

WASHER,3/8", SAE

13/32 X 13/16 X .051

2шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

11

532096R2

PEDAL ASSY.

FOOT ACCELERATOR

1шт.

12

532093R4

SUPPORT ASSY.

FOOT ACCELERATOR PEDAL

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

425-115

NUT,5/16"-24, G5

2шт.

13

532099R1

SPRING

FOOT ACCELERATOR PEDAL RETURN

1шт.

14

532102R1

LEVER ASSY.

BELLCRANK OUTER

1шт.

ref

Part No.

English Remarks

1шт.

3132955R91

SPARE PART CPTE SERVICE -INTERNATIONAL 574 TRACTORS WITH HYDROSTATIC TRANSMISSION AND BOSCH INJECTION- -CONSISTS OF ALL ENGINE PARTS EXCEPT THE FOLLOWING- GENERATOR ALTERNATOR BELT, FAN BLADE, FAN MUFFLER AND EXHAUST

1шт.

3136263R92

SPARE PART CPTE SERVICE -INTERNATIONAL 574 TRACTORS WITH SYNCHROMESH DRIVE AND BOSCH INJECTION- -CONSISTS OF ALL ENGINE PARTS EXCEPT THE FOLLOWING- GENERATOR ALTERNATOR BELT, FAN BLADE, FAN MUFFLER AND EXHAUST

1шт.

3138773R92

ENGINE, CPTE SERVICE -INTERNATIONAL 574 TRACTORS WITH HYDROSTATIC TRANSMISSION AND C.A.V. INJECTION- -CONSISTS OF ALL ENGINE PARTS EXCEPT THE FOLLOWING- GENERATOR ALTERNATOR BELT, FAN BLADE, FAN MUFFLER AND EXHAUST

1шт.

3138772R92

ENGINE, CPTE SERVICE -INTERNATIONAL 574 TRACTORS WITH SYNCHROMESH DRIVE AND C.A.V. INJECTION- -CONSISTS OF ALL ENGINE PARTS EXCEPT THE FOLLOWING- GENERATOR ALTERNATOR BELT, FAN BLADE, FAN MUFFLER AND EXHAUST

1шт.

3136263R93

SPARE PART ENGINE, CPTE, SERVICE -INTERNATIONAL 574 TRACTOR W/ SYNCHROMESH DRIVE AND BOSCH INJECTION CR PUMP, Start Serial: 069908

1шт.

3144470R92

ENGINE ASSEMBLY

ENGINE ASSY ENGINE, CPTE, SERVICE -INTERNATIONAL 574 TRACTOR W/ HYDROSTATIC DRIVE AND BOSCH INJECTION CR PUMP, Start Serial: 105487

1шт.

ref

Part No.

English Remarks

1шт.

3136799R95

GASKET KIT

PACKAGE, CYLINDER HEAD, SERVICE -CONSISTS OF

1шт.

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

INJECTION NOZZLE

4шт.

3053133R1

SEALING RING,M8 x 11.5 x 1

PACKING

8шт.

3138642R1

GASKET

VALVE HOUSING

1шт.

3055278R1

MANIFOLD GASKET

INTAKE MANIFOLD -OPTIONAL W/3055398R1-

1шт.

3055398R1

GASKET

INTAKE MANIFOLD -OPTIONAL W/3055278R1-

1шт.

3055306R1

GASKET

WATER COLLECTING PIPE

4шт.

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

DISC VALVE HOUSING COVER

4шт.

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING, PACKING

4шт.

3132143R1

GASKET

WATER OUTLET THERMOSTAT

1шт.

3138959R2

GASKET

CYLINDER HEAD

1шт.

3132434R1

MANIFOLD GASKET,0.5mm Thk

EXHAUST MANIFOLD-

1шт.

3136813R92

GASKET KIT

PACKAGE, CRANK CASE GASKET -CONSISTS OF

1шт.

172602

SUPPORT

EXPANSION

1шт.

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

710097R2

SEALING RING,14mm ID x 18mm OD x 1.5mm Thk

Packing

1шт.

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

714868R1

SEALING STRIP

SEALING

2шт.

717222R1

O-RING

1шт.

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

Packing

1шт.

933609R1

RING

1шт.

3138687R1

RING

PACKING

1шт.

3055295R91

NUT

RING, TACHOMETER DRIVE SEAL

1шт.

3055021R2

O-RING

CYLINDER SLEEVE

4шт.

3138640R1

GASKET

INJECTION PUMP COVER

1шт.

3055161R1

GASKET

OIL PAN

1шт.

3055177R1

GASKET

WATER PUMP

1шт.

3055187R91

SEAL

VALVE STEM

8шт.

3055199R1

O-RING

OIL SUCTION PIPE

9шт.

3055215R1

GASKET

CRANKSHAFT SEAL RETAINER

1шт.

3055237R1

GASKET

OIL FILTER BASE

1шт.

3055239R1

GASKET

FRONT PLATE

1шт.

3138639R1

GASKET

CRANKCASE BREATHER

1шт.

3055359R1

GASKET

CRANKCASE BREATHER

1шт.

3055384R1

GASKET

FUEL INJECTION PUMP

1шт.

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.

3055393R2

GASKET

SIDE COVER -OPTIONAL W/3136173R1

1шт.

3136173R1

GASKET

SIDE COVER -OPTIONAL W/3055393R2

1шт.

3055952R2

O-RING

OIL PUMP SEALING

2шт.

3055961R1

GASKET

OIL PUMP

1шт.

3055994R1

GASKET

CRANKCASE FRONT COVER

1шт.

3055999R1

GASKET

WATER PUMP CARRIER

1шт.

3132541R1

GASKET

CLOSING COVER

1шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing

4шт.

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

3шт.
