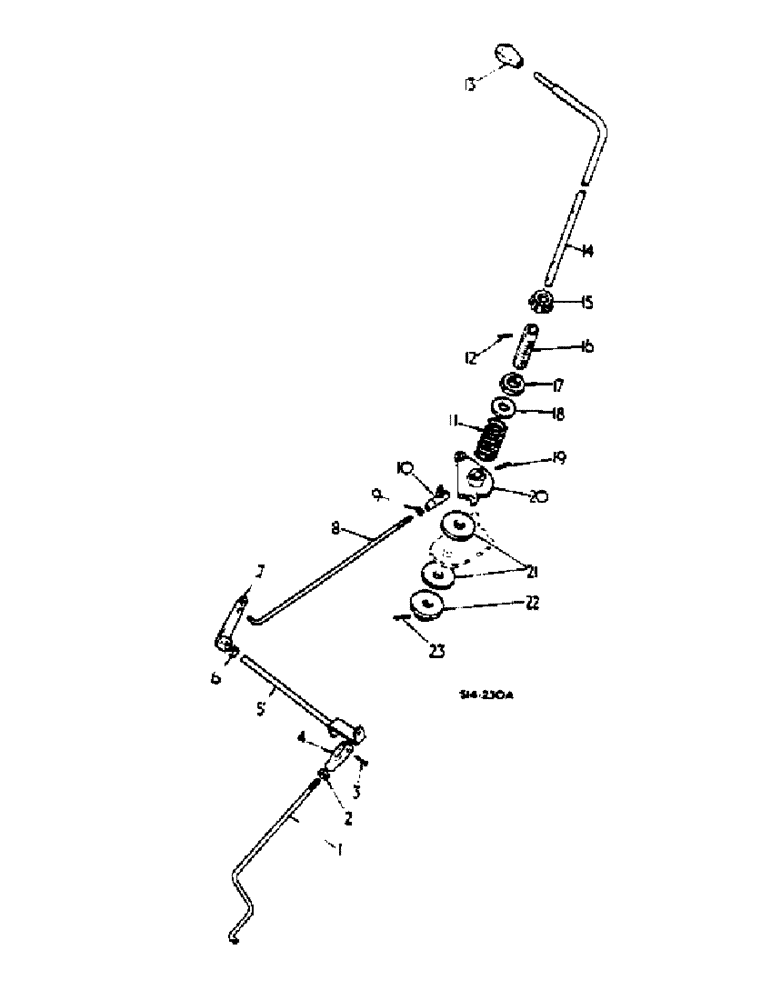

Запчасти Case IH 574 (12-018) - GOVERNOR CONTROLS, BOSCH Power

1

528334R3

ROD

FRONT GOVERNOR CONTROLS

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

3

114783

PIN

1/4 X .766 ROD END

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

Short adj rod end

1шт.

5

528325R2

ARM

ASSY, GOVERNOR CONTROL IDLER

1шт.

6

Q1597

WASHER

13/32 X 3/4 X 16 GA PLAIN

1шт.

6

20285H

WASHER

13/32 X 3/4 X 11 GA PLAIN -OPTIONAL-

1шт.

7

528328R2

LEVER

ASSY, IDLER ARM

1шт.

7

539572R1

LEVER

ASSY, IDLER ARM -BOSCH CR PUMPS-

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

21309R2

WASHER 13/32 X 7/8 X 7 GA

1шт.

8

528336R2

ROD

REAR GOVERNOR CONTROL

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 5/32 X 7/8 HV COILED SPRING

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

109400

STEERING KNUCKLE

JOINT 1/4-28 BALL

1шт.

10

19318R1

BALL JOINT

1/4-28

1шт.

10

531713R1

BALL JOINT

1/4-28 -OPTIONAL-

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 HEX

1шт.

103319

LOCK WASHER,1/4"

1шт.

11

65344C1

SPRING

GOVERNOR FRICTION CONTROL -ADJUSTABLE FRICTION THROTTLE CONTROL-

1шт.

11

401663R1

SPRING

GOVERNOR FRICTION CONTROL -FIXED FRICTION THROTTLE CONTROL-

1шт.

12

19313R1

PIN,5/32" x 7/8", Coiled

5/32 X 1 HV coiled spring, Adjustable friction throttle control

1шт.

12

19368R1

PIN,5/32" x 1", Coiled

5/32 X 7/8 HV COILED SPRING -FIXED FRICTION THROTTLE CONTROL-

1шт.

13

402584R1

BUTTON

KNOB, GOVERNOR CONTROL HANDLE

1шт.

14

528288R1

ROD

SPARE PART GOVERNOR CONTROL HANDLE

1шт.

15

528290R1

GUIDE RING

COLLAR, GOVERNOR CONTROL HANDLE

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

8-32 X 3/8 HEX SOC HD F. PT

1шт.

16

65345C1

SPACER

ADJUSTABLE -ADJUSTABLE FRICTION THROTTLE CONTROL-

1шт.

17

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 ZND HEX JAM -ADJUSTABLE FRICTION THROTTLE CONTROL-

1шт.

18

467750R1

WASHER

25/32 X 1-1/2 X .120 ZND -ADJUSTABLE FRICTION THROTTLE CONTROL-

1шт.

18

495-11053

WASHER,1/2", SAE

17/32 X 1-1/16 X .074 C-Z -FIXED FRICTION THROTTLE CONTROL-

1шт.

19

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

20

528291R2

ARM

ASSY, GOVERNOR CONTROL ROD

1шт.

21

394716R1

DISC

GOVERNOR CONTROL FRICTION

2шт.

22

528294R1

PLATE ASSY.

GOVERNOR CONTROL FRICTION

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

23

19313R1

PIN,5/32" x 7/8", Coiled

1шт.
