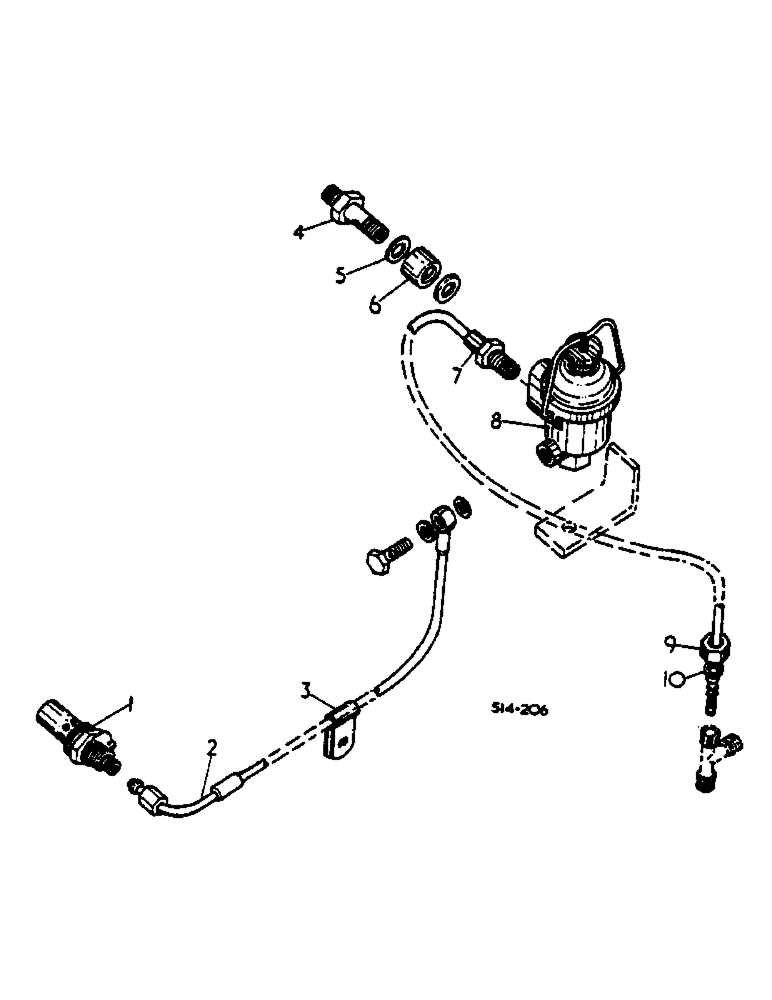

Запчасти Case IH 574 (12-010) - THERMOSTART, BOSCH INJECTION CR PUMP Power

1

3112805R91

THERMOSTART

SCREW-PLUG, THERMOSTART TYPE 357-15

1шт.

2

3112816R92

PIPE

ASSY, ELEMENT FEED

1шт.

3

3112817R1

CLAMP

ELEMENT FEED

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

1шт.

4

3112810R1

ADAPTER

SPARE PART RESERVOIR FEED

1шт.

5

3113045R1

WASHER

BANJO SEALING

2шт.

6

3113700R1

SPACER

1шт.

7

3112812R1

PIPE

ASSY, RESERVOIR OVERFLOW

1шт.

8

3112813R92

RESERVOIR

-CONSISTS OF-

1шт.

3116085R1

BODY

1шт.

3116084R1

BOWL

GLASS

1шт.

3116083R91

CLAMP

RETAINER BAIL

1шт.

705886R1

SEAL

GASKET

1шт.

9

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

COUPLING

1шт.

10

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

CUTTING

1шт.
