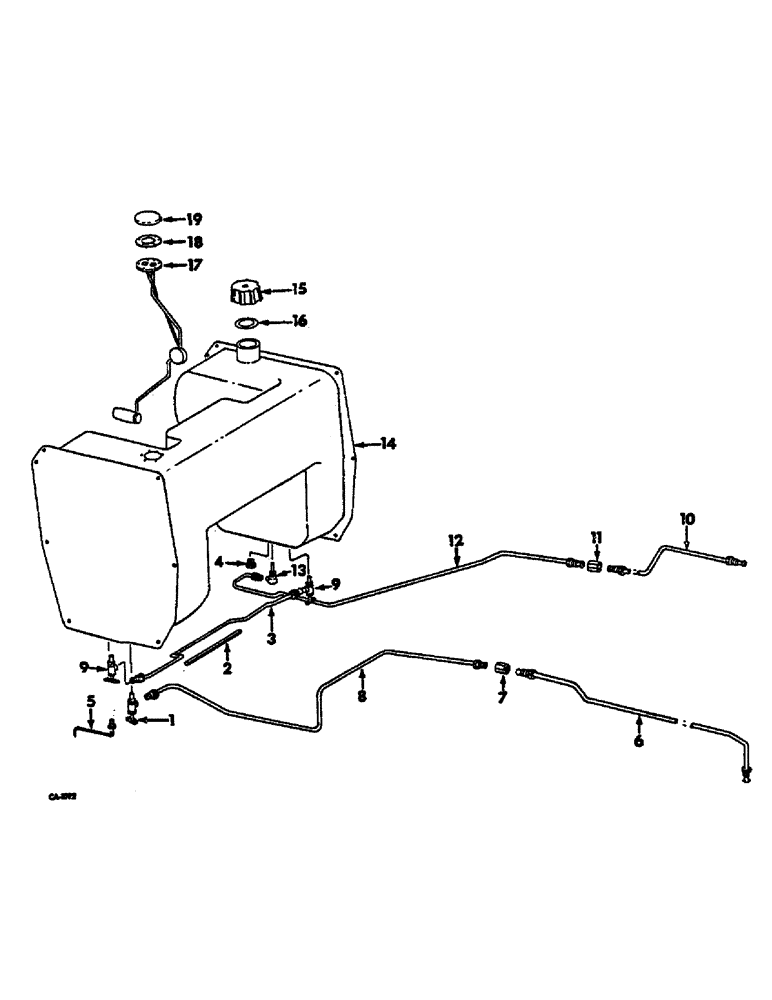

Запчасти Case IH 574 (12-005) - FUEL TANK SUPPORTS AND PIPING, BOSCH INJECTION Power

1

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSY, SHUTOFF

1шт.

2

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer

1шт.

3

528931R1

TUBE

ASSY, BALANCE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

4

145475

HYD CONNECTOR

1/8 PT X 5/16 INVERTED FLARED TUBE -OPTIONAL W/137406-

1шт.

4

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

CONNECTOR, 1/8 PT X 5/16 INVERTED FLARED TUBE -OPTIONAL W/145475- -USED W/UNDERSLUNG EXHAUST ATT-

1шт.

5

528923R1

TUBE

ASSY, TANK BREATHER

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427- -USED W/UNDERSLUNG EXHAUST-

2шт.

6

537539R1

TUBE

ASSY, UNION TO DIESEL FILTER

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

7

222-1054

HYD CONNECTOR,5/16" Inv Fl

5/16 INVERTED FLARED TUBE -OPTIONAL W/189951-

1шт.

7

189951

NUT

5/16 INVERTED FLARED TUBE -OPTIONAL W/137414-

1шт.

8

537537R1

TUBE

ASSY, UNION TO SHUTOFF VALVE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

9

536002R1

VALVE

ASSY, SHUTOFF

2шт.

10

536006R1

FUEL TUBE

ASSY, FUEL RETURN -OVERFLOW TO UNION

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

11

222-1054

HYD CONNECTOR,5/16" Inv Fl

5/16 INVERTED FLARED TUBE -OPTIONAL W/18995R1-

1шт.

11

18995R1

HYD CONNECTOR

UNION, 5/16 INVERTED FLARED TUBE -OPTIONAL W/137414-

1шт.

12

537538R1

TUBE ASSY.

FUEL RETURN -UNION TO CHECK VALVE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE-OPTIONAL W/142427-

2шт.

13

528929R1

CHECK VALVE

ASSY

1шт.

14

529371R91

FUEL TANK

ASSY, W/FILLER CAP

1шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

102635

NUT,3/8"-16, G5

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

8шт.

103321

LOCK WASHER,3/8"

2шт.

15

529370R1

FILLER CAP

ASSY, FUEL TANK

1шт.

16

23977DB

GASKET

FUEL TANK FILLER

1шт.

17

529790R1

SENDER UNIT

FUEL GAUGE SENDING

1шт.

18

528359R1

GASKET

SENDING UNIT

1шт.

19

528360R1

CAP

COVER, SENDING UNIT

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

10-24 X 1/2 C-Z HEX HD MACH

5шт.

533199R1

SEALING WASHER

SENDING UNIT COVER

4шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

10-24 X 3/8 PAN HD MACH

1шт.

796002R1

COPPER WASHER

SENDING UNIT COVER SEALING

1шт.

536009R1

FUEL HOSE,0.31" ID x 2.50"

Fuel Line, Used W/REF 6, 10, 12, Not illustrated

3шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP NOT ILLUSTRATED

3шт.
