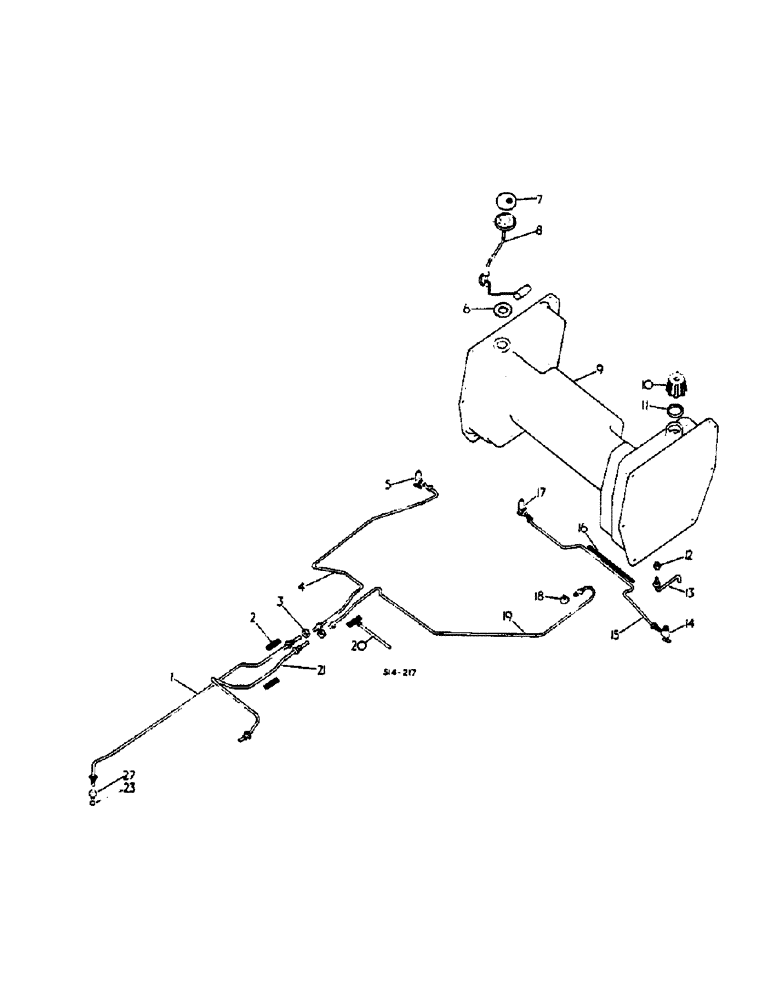

Запчасти Case IH 574 (12-003) - FUEL TANK SUPPORTS AND PIPING Power

1

3113614R1

PIPE ASSY.,39.1, 5.2" Length

UNION TO FILTER -BOSCH INJECTION CR PUMP

1шт.

1

3112789R1

PIPE

SPARE PART ASSY, UNION TO PUMP -CAV INJECTION-

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

2

536009R1

FUEL HOSE,0.31" ID x 2.50"

Fuel Line

3шт.

3

222-1054

HYD CONNECTOR,5/16" Inv Fl

5/16 INVERTED FLARED TUBE -OPTIONAL W/189951-

1шт.

3

189951

NUT

5/16 INVERTED FLARED TUBE -OPTIONAL W/137414-

1шт.

4

537537R1

TUBE

ASSY, UNION TO SHUTOFF VALVE

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSY, SHUTOFF

1шт.

6

528359R1

GASKET

SENDING UNIT

1шт.

7

528360R1

CAP

COVER SENDING UNIT

1шт.

8

529790R1

SENDER UNIT

FUEL GAUGE SENDING

1шт.

443874

BRACKET

10-24 X 1/2 HEX HD CAP

5шт.

159908

GASKET

10-24 X 3/8 CR-REC-PAN

1шт.

533199R1

SEALING WASHER

SENDING UNIT COVER SEALING

4шт.

796002R1

COPPER WASHER

SENDING UNIT COVER SEALING

1шт.

9

536035R92

NO LONGER SERVICED

TANK ASSY, FUEL W/FILLER CAP

1шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

102635

NUT,3/8"-16, G5

4шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

10шт.

103321

LOCK WASHER,3/8"

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

10

536845R1

PLUG

CAP ASSY, FUEL TANK FILLER

1шт.

11

23977DB

GASKET

FUEL TANK FILLER CAP

1шт.

12

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

CONNECTOR, 1/8 PT X 5/16 INVERTED FLARED TUBE -USED W/UNDERSLUNG EXHAUST-

1шт.

13

528923R1

TUBE

ASSY, TANK BREATHER -USED W/UNDERSLUNG EXHAUST ATT-

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

14

536002R1

VALVE

ASSY, SHUTOFF

1шт.

15

528931R1

TUBE

ASSY, CROSSOVER

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

16

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer

1шт.

17

536002R1

VALVE

ASSY, SHUTOFF

1шт.

18

137422

ELBOW

INVERTED FLARE 90 DEG

1шт.

19

537538R1

TUBE ASSY.

ASSY, FUEL RETURN REAR

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

1шт.

20

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

3шт.

21

3112790R1

PIPE

ASSY, FUEL RETURN FRONT

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/137398-

2шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

1/2-20 INVERTED FLARED TUBE -OPTIONAL W/142427-

2шт.

22

3056600R1

ADAPTER

ADAPTER FILTER -BOSCH INJECTION-

1шт.

23

936610

ARTICULATED SHAFT

RING, PACKING -BOSCH INJECTION-

1шт.

538393R1

FILLER CAP

PLUG, FUEL TANK VENT PIPE FLANGE-USED W/VERTICAL EXHAUST-, NOT ILLUSTRATED

1шт.
