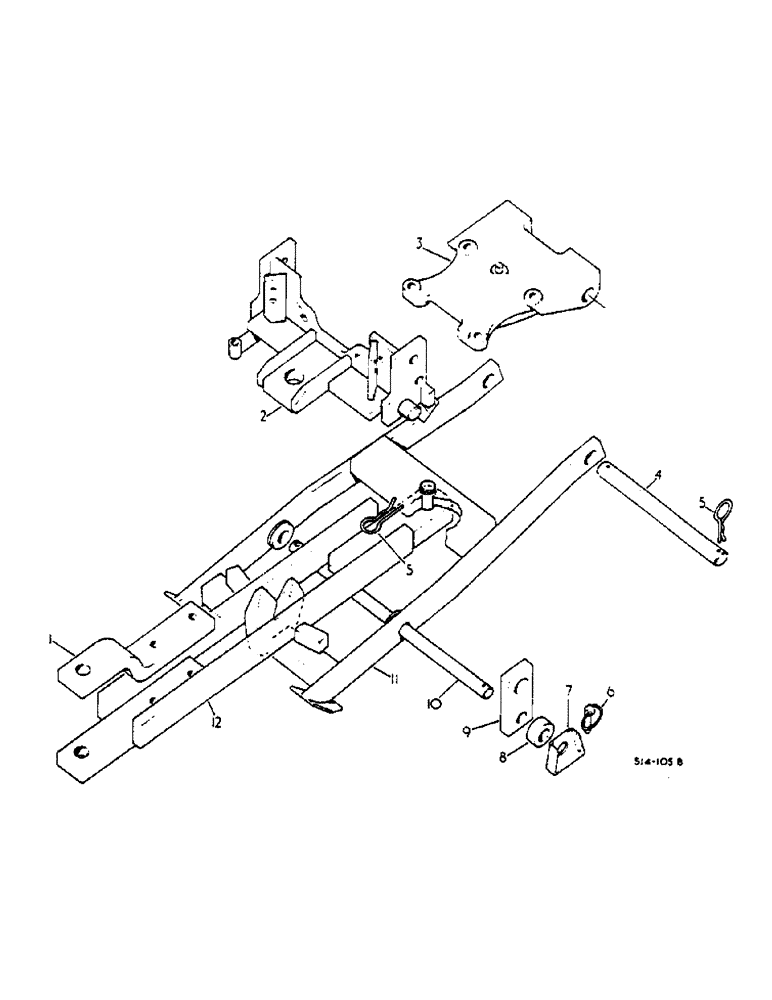

Запчасти Case IH 574 (09-020) - THREE POSITION DRAWBAR (12) - FRAME

ATTACHMENT, THREE POSITION DRAWBAR -FOR TRACTORS NOT EQUIPPED W/AUTOMATIC HITCH-

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2-3/4 X 5/8 UNC HEX HD CAP

2шт.

102639

NUT,5/8"-11, G5

574, Start Serial: 101691

2шт.

102639

NUT,5/8"-11, G5

2500, Start Serial: 100026

2шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW HEX HD CAP 5/8-11 X 3-3/4, Course Threads

2шт.

102639

NUT,5/8"-11, G5

574, Serial Range: -101690

2шт.

102639

NUT,5/8"-11, G5

2500, Serial Range: -100025

2шт.

2

533881R2

SUPPORT

ASSY, DRAWBAR

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

HEX HD CAP 5/8-11 X 1-1/2

6шт.

3

533865R1

SUPPORT

SPARE PART ASSY, DRAWBAR PIVOT

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

HEX HD CAP 1/2-13 X 1-5/8

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HEX HD CAP 1/2-13 X 2-1/2

2шт.

103323

LOCK WASHER,1/2"

4шт.

4

529541R1

SHAFT

SHAFT, DRAWBAR PIVOT SUPPORT CROSS

1шт.

5

700387R1

CLIP, SPRING

DRAWBAR PIVOT CROSS SHAFT

3шт.

6

704212R91

COTTER PIN

ASSY, IMPLEMENT COTTER

2шт.

7

404787R1

SHIELD

LINCH PIN

2шт.

Q123

WASHER

1-1/32 X 2-1/2 X 26 GA PLAIN

2шт.

8

3111986R1

SPACER

DRAWBAR FRAME SUPPORT

2шт.

9

3111985R1

SUPPORT

BAR, DRAWBAR FRAME

2шт.

10

533908R1

SHAFT

LIFT ROD CROSS

1шт.

11

533884R2

SPARE PART

HOOK ASSY, TRAILER

1шт.

533883R1

BUSHING

HOOK FRAME -USED W/HOOK 533884R1-, 574, Serial Range: -101690

2шт.

ORDER HOOK ASSY 3116495R1 W/HITCH ASSY 3116498R1 AND 1 COTTER PIN 700387R1.

1шт.

533883R1

BUSHING

HOOK FRAME -USED W/HOOK 533884R1-, 2500, Serial Range: -100025

2шт.

ORDER HOOK ASSY 3116495R1 W/HITCH ASSY 3116498R1 AND 1 COTTER PIN 700387R1.

1шт.

11

3116495R1

HOOK

ASSY, 574, Start Serial: 101691

1шт.

11

3116495R1

HOOK

ASSY, 2500, Start Serial: 100026

1шт.

12

533915R1

SPARE PART

HITCH ASSY, 574, Serial Range: -101690

1шт.

ORDER HOOK ASSY 3116495R1 W/HITCH ASSY 3116498R1 AND 1 COTTER PIN 700387R1.

1шт.

W/HITCH ASSY 3116498R1 AND 1 COTTER PIN 700387R1-, PARTS NOT ILLUSTRATED

1шт.

12

533915R1

SPARE PART

HITCH ASSY, 2500, Serial Range: -100025

1шт.

ORDER HOOK ASSY 3116495R1 W/HITCH ASSY 3116498R1 AND 1 COTTER PIN 700387R1.

1шт.

12

3116498R1

BAR

HITCH ASSY, 574, Start Serial: 101691

1шт.

12

3116498R1

BAR

HITCH ASSY, 2500, Start Serial: 100026

1шт.

3064334R1

ARM

SPARE PART DRAWBAR CLEVIS W/HITCH ASSY 3116498R1 AND 1 COTTER PIN 700387R1-, 574, NOT ILLUSTRATED, Serial Range: -101690

1шт.

3064334R1

ARM

SPARE PART DRAWBAR CLEVIS W/HITCH ASSY 3116498R1 AND 1 COTTER PIN 700387R1-, 2500, NOT ILLUSTRATED, Serial Range: -100025

1шт.
