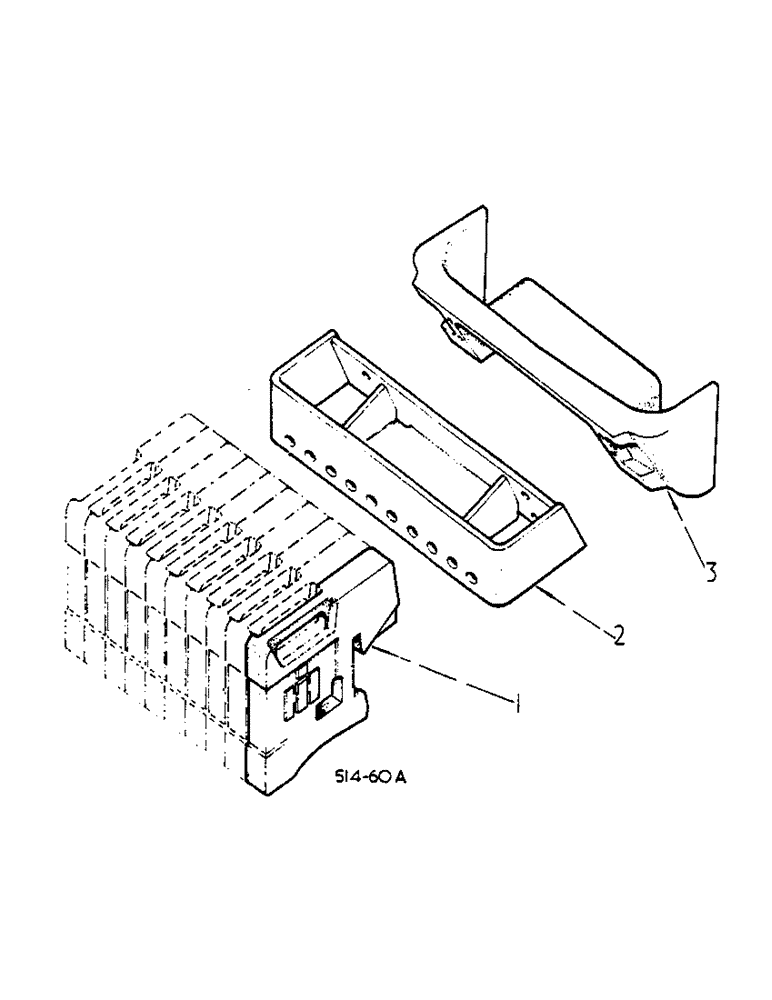

Запчасти Case IH 574 (09-017) - FRONT END WEIGHTS (12) - FRAME

1

383392R2

WEIGHT

FRONT

1шт.

125536

SQUARE NUT

SQ. 1/2

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

HEX-HD CAP 1/2 X 4

1шт.

2

534364R1

BRACKET

ASSY, FRONT CLEVIS

1шт.

21452R1

BOLT,Hex, 3/4" - 10 x 2", Gr 8

SCREW HEX-HD. CAP 3/4 X 2

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

4шт.

3

527437R3

WEIGHT

FRONT END BUMPER

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

HEX-HD CAP 3/4 X 5 , Course threads

2шт.

271780

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5

SCREW HEX-HD CAP 3/4 X 4-1/4

2шт.

NLS

NO LONGER SERVICED

13/16 X 1-1/2 X .134

4шт.
