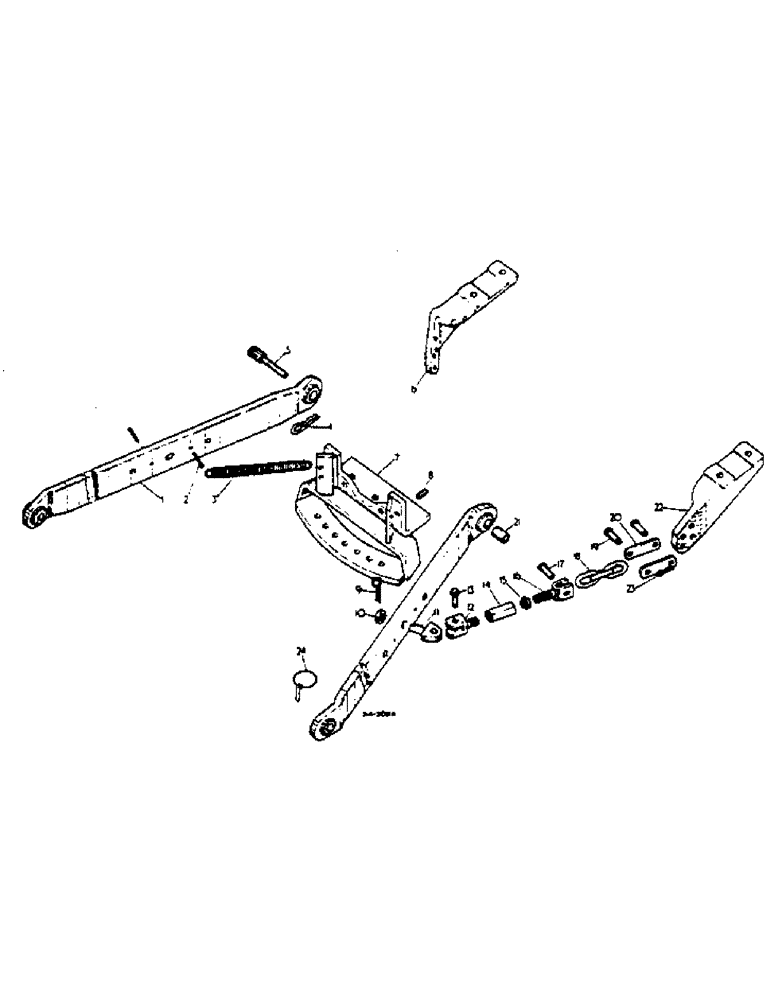

Запчасти Case IH 574 (09-009) - LOWER LINKS, THREE POINT HITCH, 574 S/N 102265 & UP, 2500 S/N 100027 & UP, W/OUTSIDE CHECK CHAINS (12) - FRAME

1

529872R1

LINK

ASSY, LOWER

2шт.

2

32-2024

COTTER PIN,5/16" x 1 1/2"

4шт.

3

662632R1

SPRING

CHECK CHAIN RESTRAINING

2шт.

4

538406R1

COTTER PIN

PIN, QUICK ATTACHABLE COTTER

2шт.

5

530825R1

PIN,31.75mm OD x 119.84mm L

LOWER LINK

2шт.

6

529874R1

SUPPORT

BRACKET, CHECK CHAIN L.H.

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

103325

LOCK WASHER,5/8"

2шт.

7

527973R1

DRAWBAR SUPPORT

ASSY, SWINGING

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 HEX HD CAP

5шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

8

19904R1

DOWEL,1/2" x 1"

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

9

529895R1

CLIP

PIN, SPRING

2шт.

10

536658R1

WASHER

GROOVES

2шт.

11

3113599R1

BOLT,7/8" - 14 x 1.90"

EYE, STAB REAR

2шт.

12

3113597R1

YOKE

UNIVERSAL JOINT YOKE CLEVIS ASSY, LIMITER CHAIN L.H. THD

2шт.

13

528112R1

PIN

LIMITER CHAIN

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

14

3113596R1

NUT

ADJUSTMENT

2шт.

15

219754R1

NUT

7/8-14 HEX JAM

2шт.

16

403039R1

CLEVIS COUPLING

ASSY, LIMITER CHAIN

2шт.

17

403037R1

PIN

LIMITER CHAIN

2шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

18

3113595R1

CHAIN,139.7mm L

LIMITED

2шт.

19

528112R1

PIN

LIMITER CHAIN

4шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

20

3113594R1

PLATE

STRAP, CHECK CHAIN ADJ

4шт.

21

530826R1

BUSHING

LOWER LINK

2шт.

22

529875R1

SUPPORT

BRACKET, CHECK CHAIN R.H.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 HEX HD CAP

2шт.

103325

LOCK WASHER,5/8"

2шт.

23

720631

COTTER PIN

ADJ STRAP

2шт.

24

533189R1

PIN

ASSY, LOWER LINK DRAWBAR

2шт.
