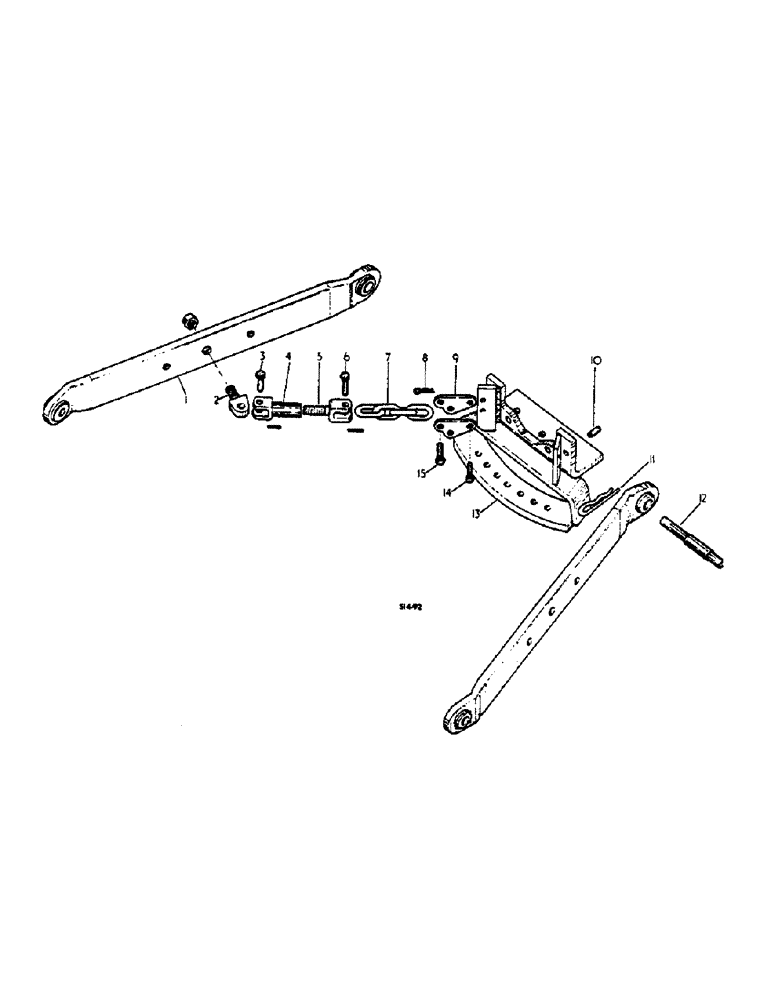

Запчасти Case IH 574 (09-007) - LOWER LINKS,THREE POINT HITCH, W/INSIDE CHECK CHAINS (12) - FRAME

1

527956R1

LINK

ASSY, LOWER

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

2

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT, EYE

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

19853R1

LOCK NUT,7/8"-14

7/8-14 NYLON INSERT

2шт.

3

528112R1

PIN

LIMITER CHAIN

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

4

527978R1

YOKE,7/8" - 14

UNIVERSAL JOINT YOKE ASSY, LIMITER CHAIN

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

5

403039R1

CLEVIS COUPLING

ASSY, LIMITER CHAIN

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

6

403037R1

PIN

LIMITER CHAIN

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

108630

COTTER PIN,1/8" x 7/8"

2шт.

7

403038R1

CHAIN (AG)

LATERAL LIMITER

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

8

460047R1

CLIP, SPRING

PIN, QUICK ATTACHABLE COTTER

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

9

527984R1

STRAP

SPARE PART LIMITER CHAIN ADJ

4шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

10

19904R1

DOWEL,1/2" x 1"

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

11

538406R1

COTTER PIN

PIN, QUICK ATTACHABLE COTTER

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

12

402656R1

PIN

LOWER LINK

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

13

527973R1

DRAWBAR SUPPORT

ASSY, SWINGING

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11X 1-1/2 HEX HD CAP

5шт.

14

403043R1

PIN

LIMITER CHAIN FRONT

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

720631R1

LINCH PIN

ADJ STRAP COTTER

2шт.

15

403037R1

PIN

LIMITER CHAIN

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.
