Запчасти Case IH 574 (12-002) - AIR CLEANER AND CONNECTIONS Power

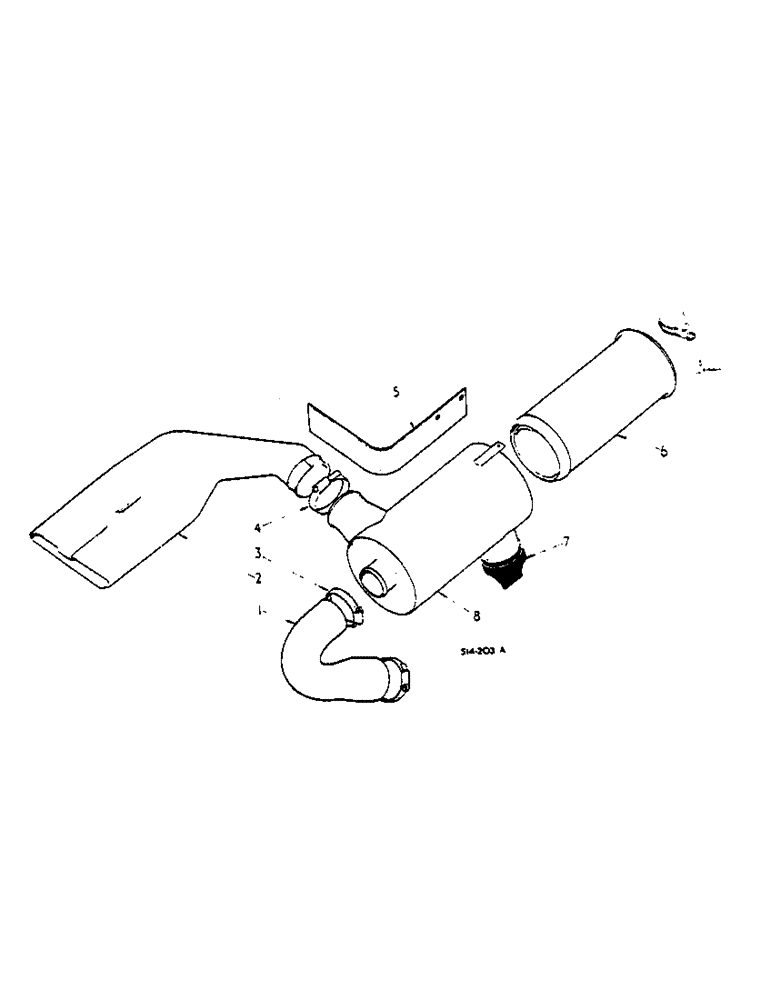

Схема запчастей Case IH 574 - (12-002) - AIR CLEANER AND CONNECTIONS Power
3
1
6
8
2
7
5
4

Артикул

Название

Примечание

Количество

1

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

Air Cleaner Outlet

1шт.

2

529864R1

DUCT

AIR INLET

1шт.

3

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

NO. 44 HOSE

2шт.

4

21423R1

CLAMP

HOSE 3-5/16

1шт.

4

539994R1

CLAMP

3-5/16 HOSE -OPTIONAL-

1шт.

5

67290C1

BRACKET

AIR CLEANER MOUNTING

1шт.

6

529854R2

AIR FILTER

ASSY

1шт.

7

529855R1

VALVE

DUST UNLOADER

1шт.

8

402612R92

AIR CLEANER

ASSY, -CONSISTS OF REF NOS 6 AND 7

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

Выбрано товаров: 12
