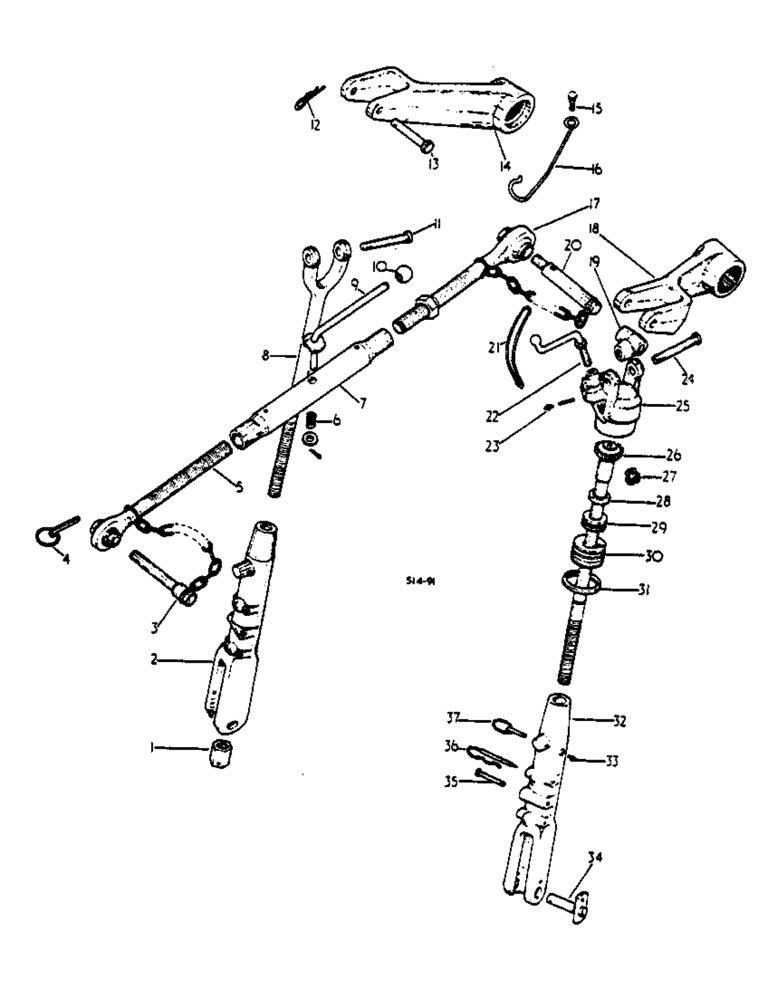

Справочник запчастей Case IH 574 (09-004) - THREE POINT HITCH (12) - FRAME со схемами

1

527937R1

NUT

LIFT LINK

2шт.

2

402635R3

HOUSING

LIFT LINK YOKE

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS WITHOUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAIN.

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS WITH AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAIN.

1шт.

2

402643R2

HOUSING

LIFT LINK YOKE

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS FITTED W/ OUTSIDE CHECK CHAINS, AUSTRALIAN MARKET.

1шт.

3

528081R1

PIN ASSY.

UPPER LINK CAT I

1шт.

4

704212R91

COTTER PIN

ASSY, IMPLEMENT

1шт.

5

527996R1

SCREW

SCREW ASSY, RH THD UPPER

1шт.

6

899896R1

SPRING

TURNBUCKLE ROD

1шт.

7

528003R1

TURNBUCKLE

1шт.

425-1418

JAM NUT,Jam, 1 1/8"-7, G5

HEX LOCK 1-1/8-7

1шт.

8

527948R91

CLEVIS,7/8" - 9

YOKE ASSY, LIFT LH

1шт.

8

527948R91GV

LEVELLING DEVICE

Value, Yoke Assy.

1шт.

9

527991R1

ROD

ASSY, TURNBUCKLE

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 X 1-1/16 X .074 PLAIN

1шт.

10

3048296R1

BUTTON

KNOB, TURNBUCKLE ROD

1шт.

11

3044309R1

5/8 X 3-3/8

1шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

12

720631R1

LINCH PIN

ROCKSHAFT ARM COTTER

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS.

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS FITTED W/ OUTSIDE CHECK CHAINS, AUSTRALIAN MARKET.

1шт.

13

3044309R1

ROCKSHAFT ARM HD

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS.

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS FITTED W/ OUTSIDE CHECK CHAINS, AUSTRALIAN MARKET.

1шт.

14

402634R2

ROCKER ARM

ROCKSHAFT

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS.

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS FITTED W/ OUTSIDE CHECK CHAINS, AUSTRALIAN MARKET.

1шт.

15

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

Shoulder

1шт.

16

530050R3

CLIP,ELECTRICAL

UPPER LINK STORAGE

1шт.

23042R1

WASHER

17/32 X 1 X .030 FLAT C-Z

1шт.

17

527994R1

SCREW

ASSY, LH THD UPPER

1шт.

19791R1

PIN,1/4" x 1 1/8", Coiled

1/4" x 1 1/8", Coiled

2шт.

18

402634R2

ROCKER ARM

ROCKSHAFT

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS.

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS FITTED W/ OUTSIDE CHECK CHAINS, AUSTRALIAN MARKET.

1шт.

19

704207R3

PIVOT

SWIVEL, LEVELLING SCREW

2шт.

20

528084R11

ASSY, UPPER LINK CAT II

1шт.

530049R1

CLIP, SPRING

PIN, QA COTTER

1шт.

21

3072424R1

SPRING

LEVELING SCREW HANDLE

1шт.

22

527943R1

CRANK

HANDLE, LEVELING SCREW

1шт.

23

109461

LUBE NIPPLE,1/8"-27 x .66 lg

PTF

1шт.

24

3069069R1

5/8 X 3-3/4

1шт.

25

3072422R2

HOUSING

LEVELING SCREW

1шт.

26

527951R1

NO LONGER SERVICED

SCREW, LEVELING ROD

1шт.

27

3069063R1

GEAR

PINION

1шт.

142506

LATCH

3/16" x 3/4", Type A

1шт.

28

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

LEVELING LIFT ROD

1шт.

29

3044346R91

BALL BEARING

LEVELING SCREW -OPTIONAL W/3044347R91, 3044348R91 AND 3068049R91-

1шт.

29

3044347R91

THRUST BEARING

LEVELING SCREW -OPTIONAL W/3044346R91, 3044348R91 AND 3068049R91-

1шт.

29

3044348R91

BEARING, THRUST

LEVELING SCREW -OPTIONAL W/3044346R91, 3044347R91 AND 3068049R91-

1шт.

29

3068049R91

BALL BEARING

LEVELING SCREW -OPTIONAL W/3044346R91, 3044347R91 AND 3044348R91-

1шт.

30

3069064R1

BEARING

BEARING, LEVELING SCREW

1шт.

31

3069065R1

LOCK NUT

LEVELING SCREW BEARING

1шт.

32

402635R3

HOUSING

LIFT LINK YOKE

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS.

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS WITH AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAIN.

1шт.

32

402643R2

HOUSING

LIFT LINK YOKE

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS FITTED W/ OUTSIDE CHECK CHAINS, AUSTRALIAN MARKET.

1шт.

33

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

34

527952R1

PIN ASSY.

LIFT LINK PIVOT

2шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAINS.

1шт.

FOR TRACTORS W/OUT AUTOMATIC HITCH AND W/ INSIDE CHECK CHAIN.

1шт.

FOR TRACTORS W/ AUTOMATIC HITCH AND WITH INSIDE CHECK CHAIN.

1шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS WITH AUTOMATIC HITCH AND WITH OUTSIDE CHECK CHAIN.

1шт.

34

402645R91

PIN, LIFT LINK PIVOT

2шт.

UP TO 574/102264, UP TO 2500/100026, FOR TRACTORS FITTED W/ OUTSIDE CHECK CHAINS, AUSTRALIAN MARKET.

1шт.

720631R1

LINCH PIN

LIFT PIVOT PIN

2шт.

35

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

FLOAT STOP

2шт.

107762

WASHER,3/32" x 5/8"

2шт.

36

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

ASSY, LIFT LINK LOCK

2шт.

37

533189R1

ASSY, LOWER LINK DRAWBAR

2шт.

528079R91

UPPER LINK

ASSY, UPPER, NOT ILLUSTRATED

1шт.

Запчасти Case IH 574 (09-004) - THREE POINT HITCH (12) - FRAME
