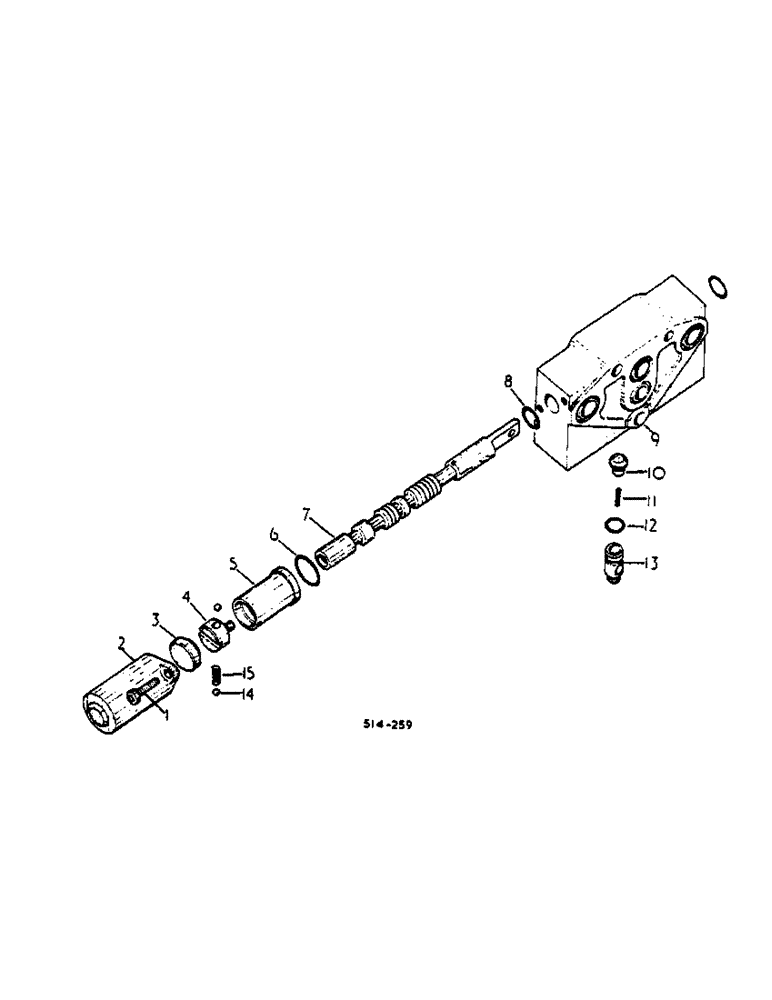

Запчасти Case IH 574 (10-045) - DOUBLE ACTING AUXILIARY HYDRAULIC VALVE, 574 S/N 010992 AND UP, 2500 S/N 000630 AND UP (07) - HYDRAULICS

3116056R92

HYDRAULIC VALVE

ASSY DOUBLE ACTING AUX

1шт.

ON ORDERS FOR VALVE 3116055R91 FURNISH R92 W/TWO O-RINGS 392385R1, FOUR O-RINGS 384578R1 AND TWO O-RINGS 393349R1.

1шт.

1

3113064R1

SCREW

2шт.

2

3113058R1

CYLINDER END CAP

EXTENDED

1шт.

3

3116059R1

STOP

SPOOL

1шт.

4

3116057R1

CARRIER

DETENT

1шт.

5

3116060R1

CAGE

DETENT

1шт.

6

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 X 1 X 1/16

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

379181R1

O-RING,0.614" ID x 0.07" Width

5/8 X 3/4 X 1/16

2шт.

9

NSS

NOT SOLD SEPARAT

1шт.

10

3113068R1

VALVE POPPET

1шт.

11

3113069R1

SPRING

CHECK VALVE

1шт.

12

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 X 9/16 X 1/16

1шт.

13

3113070R1

GUIDE

CHECK VALVE

1шт.

14

17008C1

BALL 1/4 DIA STEEL

2шт.

15

3113065R1

SPRING

DETENT

1шт.
