Запчасти Case IH 574 (10-039) - INTEGRAL HYDROSTATIC STEERING VALVE, ROSS STEERING (07) - HYDRAULICS

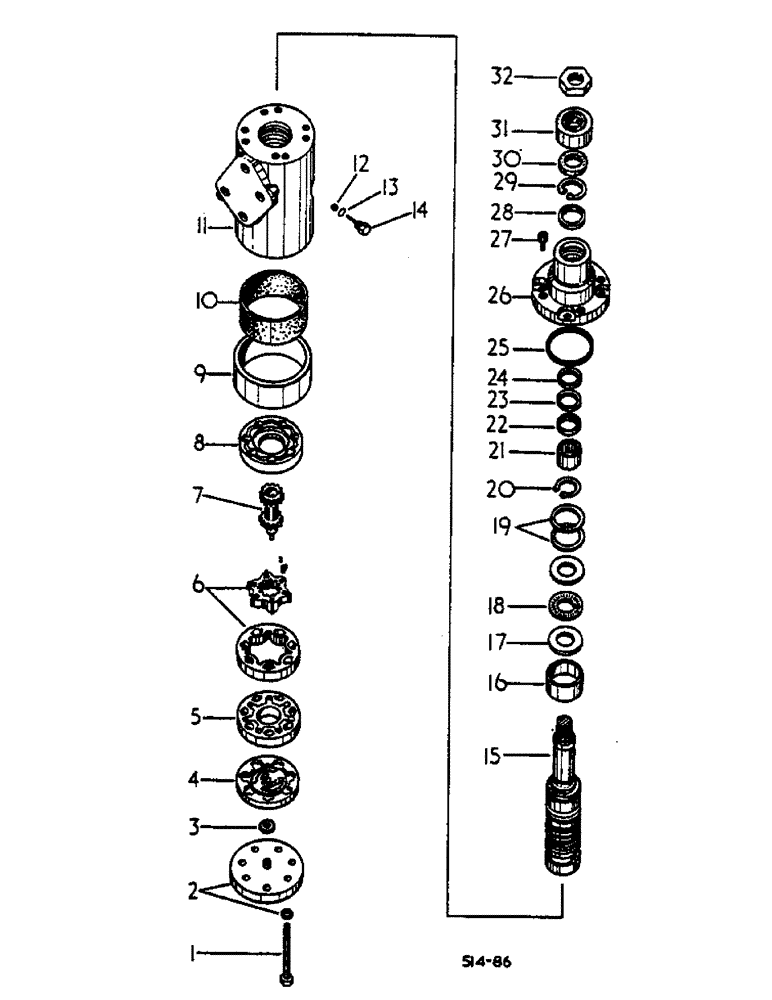

Схема запчастей Case IH 574 - (10-039) - INTEGRAL HYDROSTATIC STEERING VALVE, ROSS STEERING (07) - HYDRAULICS
16
30
21
25
17
14
26
22
5
2
28
6
4
15
32
23
27
7
20
18
1
29
19
3
11
12
10
8
31
24
9
13

Артикул

Название

Примечание

Количество

527326R91

LOCK VALVE

ASSY, INTEGRAL P/S

1шт.

1

535102R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.50", Gr 5

REAR COVER

7шт.

2

535101R1

COVER

ASSY, END

1шт.

3

535100R1

THRUST WASHER

1шт.

4

535097R1

ROTOR

ASSY

1шт.

5

535096R1

MANIFOLD

1шт.

6

535095R1

ROTOR ASSY.

SET

1шт.

7

535094R1

NO LONGER SERVICED

DRIVE LINK

1шт.

8

535093R1

SPACER

1шт.

9

535099R1

RETAINER

SEAL

1шт.

10

535098R1

BUSHING,77.57mm ID x 82.8mm OD x 39.62mm L

ROTOR

1шт.

11

BODY -NOT SERVICED-

1шт.

12

16008R1

BALL,1/4" Dia, Steel

1/4 DIA STEEL

1шт.

13

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

Boss plug

1шт.

14

379901R91

PLUG

ROLL PIN ASSY

1шт.

15

DRIVE SHAFT -NOT SERVICED-

1шт.

16

535086R1

SPACER

1шт.

17

535087R1

THRUST WASHER

THRUST

2шт.

18

535088R1

BEARING

SPARE PART THRUST

1шт.

19

535089R1

SHIM

-AS REQUIRED-

1шт.

20

454331R1

SNAP RING,#87, Ext

1шт.

21

BEARING -NOT SERVICED-

1шт.

22

379725R1

SPARE PART

BLOCK, VEE PACKING

1шт.

23

373005R1

RING

PUMP SHAFT BACK-UP

1шт.

24

379780R1

RING

PUMP SHAFT

1шт.

25

535091R1

RING

SEAL

1шт.

26

535090R1

COVER

ASSY, UPPER

1шт.

27

24481R1

SCREW

COVER

1шт.

28

379786R1

WASHER

PUMP SHAFT

1шт.

29

383878R1

SNAP RING,1.25, Int, #125

1.25", Int, #125

1шт.

30

376481R1

GASKET

BUSHING, FELT

1шт.

31

535092R1

SHIELD

PUMP SHAFT

1шт.

32

F19646

LOCK NUT,13/16"-20, Thin

HEX 13/16-20

1шт.

379782R92

SERVICE KIT

PACKAGE, H/S STEERING, NOT ILLUSTRATED, CONSISTS OF

1шт.

376481R1

GASKET

BUSHING

1шт.

379725R1

SPARE PART

BLOCK

1шт.

373005R1

RING

1шт.

379780R1

RING

1шт.

405790R91

PACKAGE

VALVE AND SPRING, NOT ILLUSTRATED

1шт.

Выбрано товаров: 39
