(10-037) - UNLOADING AND FLOW CONTROL VALVE

Запчасти Case IH 574 (10-037) - UNLOADING AND FLOW CONTROL VALVE (07) - HYDRAULICS

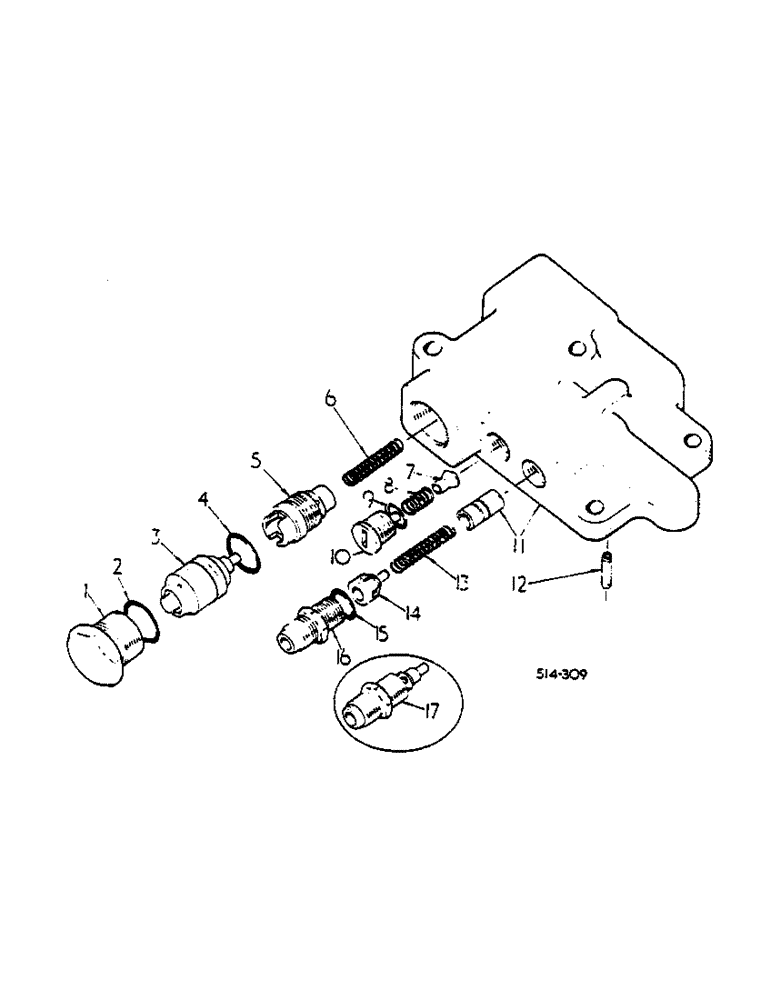

Схема запчастей Case IH 574 - (10-037) - UNLOADING AND FLOW CONTROL VALVE (07) - HYDRAULICS
6
10
1
9
7
5
14
8
12
15
4
17
13
2
3
11
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

59098C92

CONTROL VALVE

ASSY, UNLOADING AND FLOW, 574, Start Serial: 100885

1шт.

59098C92

CONTROL VALVE

ASSY, UNLOADING AND FLOW, 2500, Start Serial: 100005

1шт.

400001R91

CONTROL VALVE

ASSY, UNLOADING AND FLOW, 574 - ORDER VALVE 59098C92 W/O-RING 59099C1 -, Serial Range: -100884

1шт.

400001R91

CONTROL VALVE

ASSY, UNLOADING AND FLOW, 2500, - ORDER VALVE 59098C92 W/O-RING 59099C1 -, Serial Range: -100004

1шт.

1

545494R1

PLUG

UNLOADING VALVE

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 IN O.D. TUBE

1шт.

3

376762R11

PISTON ASSY.

UNLOADING VALVE

1шт.

4

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

13/16 X 1-1/16 X 1/8

1шт.

5

530138R1

BODY

ASSY, UNLOADING VALVE

1шт.

6

530141R1

SPRING

UNLOADING

1шт.

7

389587R3

CHECK VALVE

CHECK POPPET

1шт.

8

535547R1

SPRING

CHECK POPPET

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 O.D. TUBE

1шт.

10

399851R1

PLUG

CHECK VALVE

1шт.

11

BODY AND SPOOL, UNLOADING AND FLOW CONTROL VALVE - NOT SERVICED -

1шт.

12

617057R1

PIN,1/4" x 1", Coiled

574, Start Serial: 100885

1шт.

12

617057R1

PIN,1/4" x 1", Coiled

2500, Start Serial: 100005

1шт.

12

399854R1

SHAFT

RETAINING

1шт.

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

574 - ORDER PIN 617057R1 W/ O-RING 59099C1 -, Serial Range: -1000884

1шт.

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

2500 - ORDER PIN 617057R1 W/ O-RING 59099C1 -, Serial Range: -100004

1шт.

13

530142R1

SPRING

FLOW CONTROL VALVE

1шт.

14

58367R1

GUIDE, SPRING, 574, Start Serial: 101862

1шт.

14

58367R1

GUIDE, SPRING, 2500, Start Serial: 100027

1шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 O.D. TUBE

1шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4 - 16 ZND 37 DEG. HYD. FLARED TUBE SHORT SWIVEL, 574, Start Serial: 101862

1шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4 - 16 ZND 37 DEG. HYD. FLARED TUBE SHORT SWIVEL, 2500, Start Serial: 100027

1шт.

17

527910R1

FITTING

FLOW CONTROL, 574, Serial Range: -101861

1шт.

17

527910R1

FITTING

FLOW CONTROL, 2500, Serial Range: -100026

1шт.
