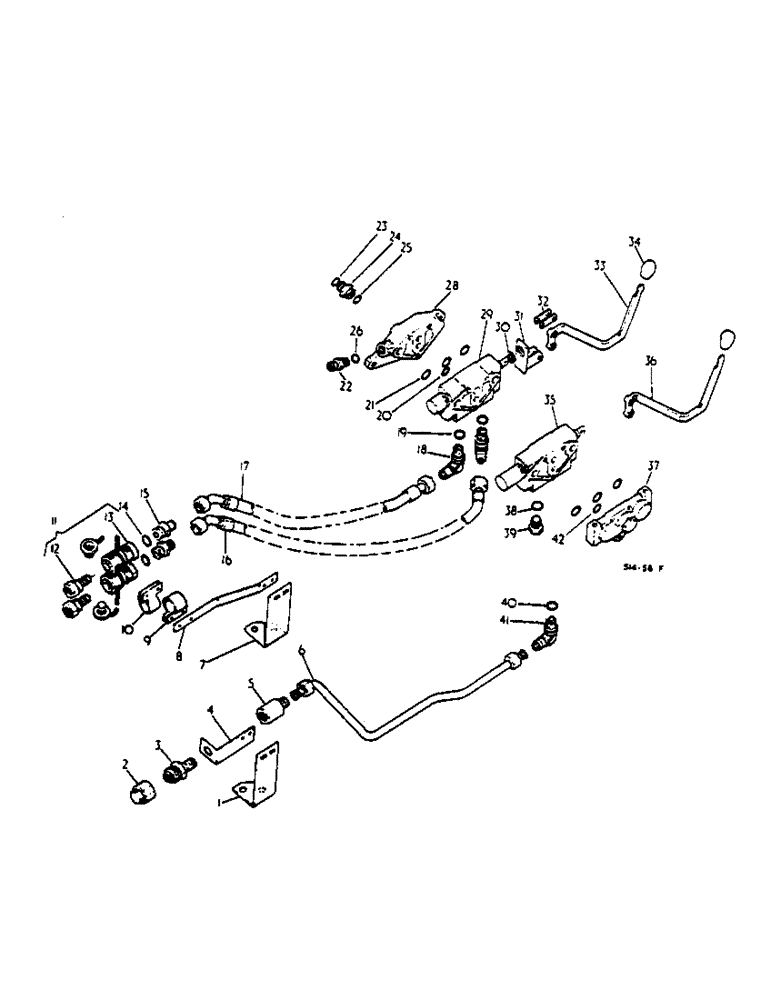

Запчасти Case IH 574 (10-020) - AUXILIARY VALVES (07) - HYDRAULICS

529688R91

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE, SINGLE ACTING VALVE AND SELF, SEALING COUPLING, FIRST BANK, CONSISTS OF ALL UMARKED PARTS AND THOSE MARKED UNIT A

1шт.

529690R91

SPARE PART ATTACHMENT, SINGLE AUXILIARY HYDRAULIC, DOUBLE ACTING VALVE AND TWO SELF-SEALING COUPLINGS, FIRST BANK, CONSISTS ALL UNMARKED PARTS ANDTHOSE MARKED UNIT B

1шт.

529692R91

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE -SINGLE ACTING VALVE AND MUST BE USED IN CONJUNCTION W/FIRST BANK SINGLE AUXILIARY HYDRAULIC VALVE ATTACHMENT- -SECOND BANK- -CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT C-

1шт.

529694R91

SPARE PART ATTACHMENT, SINGLE AUXILIARY HYDRAULIC -DOUBLE ACTING VALVE AND MUST BE USED IN CONJUNCTION W/FIRST BANK SINGLE AUXILIARY HYDRAULIC VALVE ATTACHMENT- -SECOND BANK- -CONSISTS OF ALL UNMARKED PARTS. AND THOSE MARKED UNIT D-

1шт.

535960R91

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE -SINGLE ACTING VALVE AND ONE SELF SEALING BREAKAWAY COUPLING -FIRST BANK- -CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT E-

1шт.

537490R91

ATTACHMENT, SINGLE AUXILIARY HYDRAULIC VALVE W/SINGLE ACTING VALVE -SPECIAL FEATURE SCANDINAVIA- -CONSIST OF ALL UNMARKED PARTS AND THOSE MARKED UNIT F-

1шт.

537216R92

ATTACHMENT, SINGLE AUXILIARY HYD VALVE W/DOUBLE ACTING VALVE -FIRST BANK- -SPECIAL FEATURE- -AUSTRALIAN MARKET- -CONSISTS OF ALL UNMARKED PARTS AND THOSE MARKED UNIT G-

1шт.

1

3533139R1

BRACKET ASSY, BREAKAWAY COUPLING - UNIT A -

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 HEX-HD CAP

2шт.

2

705578R1

CYLINDER END CAP

SCREWED SELF-SEALING COUPLING DUST -UNIT A- -OPTIONAL W/3041963R1-

1шт.

2

3041963R1

CAP

SCREWED SELF-SEALING COUPLING DUST -UNIT A- -OPTIONAL W/705578R1-

1шт.

3

705579R1

COUPLING

SCREWED SELF-SEALING -UNIT A- -OPTIONAL W/3041962R1-

1шт.

3

3041962R1

COUPLING, SELF-SEALING -UNIT A- -OPTIONAL W/705579R1-

1шт.

4

533140R1

BRACKET

SCREW COUPLING - UNIT A -

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 X 7/8

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

2шт.

5

529708R1

ADAPTER

AUX VALVE TO COUPLING TUBE -UNIT A-

1шт.

704337R1

SEALING WASHER

VALVE TO COUPLING TUBE ADAPTOR

2шт.

6

533138R1

TUBE ASSY.

W/SLEEVE AND NUTS, AUX VALVE TO COUPLING -UNIT A-

1шт.

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

7/8-14 C-Z 37 DEG HYD FLARED TUBE

2шт.

9403451

SLEEVE,37 Degree, 5/8" Tube

5/8 C-Z 37 DEG HYD FLARED TUBE

2шт.

7

3113436R91

SUPPORT

BRACKET ASSY, SELF-SEALING COUPLING W/MOULDING - UNIT B, E AND G -

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 HEX-HD CAP

2шт.

103323

LOCK WASHER,1/2"

2шт.

113437R1

SPARE PART EDGE MOULDING

1шт.

8

533143R1

BAR

BREAKAWAY COUPLING BRACKET- - UNIT B, E AND G -

1шт.

NLS

NO LONGER SERVICED

1/4-20 X 7/8 HEX HD

2шт.

103319

LOCK WASHER,1/4"

2шт.

95-11028

WASHER,1/4"

PLAIN

2шт.

109084

NUT,1/4"-20, G5

2шт.

9

3114106R1

CLAMP

COUPLING -UNIT B AND E-

1шт.

9

371114R1

CLAMP

COUPLING -UNIT B

1шт.

ON ORDERS FOR 371114R1 OR 371115R1, FURNISH 2 OFF 3114106R1, 179818 AND 102634

1шт.

9

3063989R1

CLAMP

COUPLING -UNIT E

1шт.

ON ORDERS FOR 3063988R1, OR 3063989R1, FURNISH 1 OFF 3114106R1, 2 OFF 179818 AND 2 OFF 102634

1шт.

10

3114106R1

CLAMP

COUPLING -UNIT B-

1шт.

10

371115R1

CLAMP

COUPLING - UNIT B

1шт.

ON ORDERS FOR 371114R1 OR 371115R1, FURNISH 2 OFF 3114106R1, 179818 AND 102634

1шт.

10

3063988R1

CLAMP

COUPLING - UNIT E

1шт.

ON ORDERS FOR 3063988R1, OR 3063989R1, FURNISH 1 OFF 3114106R1, 2 OFF 179818 AND 2 OFF 102634

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

11

3067991R91

BREAKER POINTS

SELF-SEALING -UNIT 2B AND E-

1шт.

12

3067992R91

COUPLING, BREAK AWAY

SELF-SEALING-MALE- UNIT 2B AND E-

1шт.

9410360

PLUG

7/8-14 C-Z STR THD O-RING BOSS- UNIT 2B, E AND 2G -

2шт.

13

3067993R91

COUPLING, BREAK AWAY

SELF-SEALING -FEMALE- UNIT 2B AND E -

1шт.

3115783R1

O-RING

1шт.

3115782R1

BACK-UP RING

BACK UP

1шт.

373220R1

PLUG

SEAL, BREAKAWAY COUPLING DUST

1шт.

401757R1

PLUG, BREAKAWAY COUPLING DUST

1шт.

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

BREAKAWAY COUPLING DUST - UNIT 2B AND E -

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT 2B E AND 2G -

1шт.

15

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED - UNIT 2B E AND 2G -

1шт.

16

533141R2

HOSE

AUX VALVE TO COUPLING LONG HYD - UNIT B, E AND G -

1шт.

17

533142R2

HOSE,12.7mm ID x 610mm L

AUX VALVE TO COUPLING SHORT HYD - UNIT B AND G -

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD O-RING 90 DEG - UNIT 2B, E AND 2G -

1шт.

19

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT 2B, E AND 2G -

1шт.

20

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 X 13/16 X 1/16 - VALVE S/ACTING -, 574, Serial Range: -102357

1шт.

20

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 X 13/16 X 1/16 - VALVE S/ACTING -, 2500, Serial Range: -100026

1шт.

20

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 X 13/16 X 1/16 - VALVE D/ACTING -, 574, Serial Range: -103326

1шт.

20

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 X 13/16 X 1/16 - VALVE D/ACTING -, 2500, Serial Range: -100044

1шт.

20

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

VALVE S/ACTING - 574, UNITS C AND D, 2 UNITS A, B, E, F, AND G, Start Serial: 102358

1шт.

20

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

VALVE S/ACTING - 2500, UNITS C AND D, 2 UNITS A, B, E, F, AND G, Start Serial: 100027

1шт.

20

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

VALVE D/ACTING - 574, UNITS C AND D, 2 UNITS A, B, E, F, AND G, Start Serial: 103327

1шт.

20

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

VALVE D/ACTING - 2500, UNITS C AND D, 2 UNITS A, B, E, F, AND G, Start Serial: 100045

1шт.

21

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - FOR UNIT C AND D -

1шт.

21

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - UNIT A, B, E, F AND G -

4шт.

22

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 C-Z 37 DEG HYD FLARED TUBE, 574, Start Serial: 100955

1шт.

22

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 C-Z 37 DEG HYD FLARED TUBE, 2500, Start Serial: 100005

1шт.

22

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD O-RING 90 DEG, 574 - UNIT A, B, E, F AND G -, Serial Range: -100954

1шт.

22

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD O-RING 90 DEG, 2500 - UNIT A, B, E, F AND G -, Serial Range: -100004

1шт.

23

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 X 3/4 X 3/32 - UNIT A, B, E, F AND G -

1шт.

24

529705R1

UNION

CONNECTOR, AUX VALVE - UNIT A, B, E, F AND G -

1шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT A, B, E, F AND G -

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT A, B, E, F AND G -

1шт.

27

NOT APPLICABLE

1шт.

28

3116012R1

BLOCK

AUX VALVE CONTROL LEVER ADAPTOR, 574, Start Serial: 100955

1шт.

28

3116012R1

BLOCK

AUX VALVE CONTROL LEVER ADAPTOR, 2500, Start Serial: 100005

1шт.

28

529704R2

BLOCK

AUX VALVE CONTROL LEVER ADAPTOR, 574 - UNIT A, B, E, F AND G -, Serial Range: -100954

1шт.

28

529704R2

BLOCK

AUX VALVE CONTROL LEVER ADAPTOR, 2500 - UNIT A, B, E, F AND G -, Serial Range: -100004

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

29

VALVE ASSY, DOUBLE ACTING AUX HYD - UNIT B, D AND G - -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF DOUBLE ACTING AUX HYD VALVE ASSY-

1шт.

30

529698R1

SEALING RING,15.88mm ID x 23.8mm OD x 7.54mm Thk

AUX HYD VALVE WIPER

1шт.

31

529699R1

BRACKET

ASSY, AUX VALVE CONTROL LEVER

1шт.

3061228R91

LOCK NUT

1/4-20 NYLON INSERT LOCK

1шт.

186923

HEX SOC SCREW,1/4"-20 x 5/8"

SCREW 1/4-20 X 5/8 HEX-SOC-HD CAP

2шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

32

529702R1

LINK

CONTROL LEVER CONNECTING

2шт.

102776H

CLEVIS PIN,1/4" x 11/16"

Rod end

2шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

2шт.

33

530369R1

LEVER

ASSY, AUX VALVE CONTROL - UNIT A, B, E, F AND G -

1шт.

34

400072R1

BUTTON

KNOB, AUX VALVE CONTROL LEVER

1шт.

35

VALVE ASSY, SINGLE ACTING AUX HYD -UNIT A, C, E, AND F - -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF SINGLE ACTING AUX HYD VALVE ASSY-

1шт.

36

3112577R1

LEVER

ASSY, AUX VALVE END -UNIT C AND D-

1шт.

37

529697R2

PLATE

AUX HYD VALVE END - UNIT A, B, E, F AND G -

1шт.

ON ORDERS FOR PLATE 529697R1, FURNISH R2 W/TWO O-RINGS 392385R1, FOUR O-RINGS 384578R1 AND TWO O-RINGS 393349R1

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 HEX-HD CAP - 2 FOR UNIT A, B, E, F AND G -

2шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8-16 X 4-1/4 HEX-HD CAP - UNIT A, B, E, F AND G -

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

3/8-16 X 4-1/2 HEX-HD CAP -UNITS C AND D-

1шт.

103321

LOCK WASHER,3/8"

3шт.

22344R1

BOLT,Hex, 3/8" - 16 x 5 3/4", Gr 5

3/8-16 X 5-3/4 HEX-HD CAP - UNIT C AND D

1шт.

38

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT C AND F, 2 FOR UNIT D AND G

1шт.

39

9410360

PLUG

7/8-14 C-Z STR THD-O-RING BOSS - UNIT C AND F

1шт.

39

9410360

PLUG

7/8-14 C-Z STR THD-O-RING BOSS - UNIT D AND G

2шт.

40

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE - UNIT A -

1шт.

41

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD O-RING 90 DEG - UNIT A -

1шт.

42

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - VALVE S/ACTING -, 574, Serial Range: -102357

1шт.

42

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - VALVE S/ACTING -, 2500, Serial Range: -100026

1шт.

42

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - VALVE D/ACTING -, 574, Serial Range: -103326

1шт.

42

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 X 15/16 X 1/16 - VALVE D/ACTING -, 2500, Serial Range: -100044

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

7/8 X 1 X 1/16 - VALVE S/ACTING -, 574 - UNIT C AND D - - 2 UNIT A, B, E, F AND G -, Start Serial: 102358

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

7/8 X 1 X 1/16 - VALVE S/ACTING -, 2500 - UNIT C AND D - - 2 UNIT A, B, E, F AND G -, Start Serial: 100027

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

7/8 X 1 X 1/16 - VALVE D/ACTING -, 574 - UNIT C AND D - - 2 UNIT A, B, E, F AND G -, Start Serial: 103327

1шт.

42

393349R1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

7/8 X 1 X 1/16 - VALVE D/ACTING -, 2500 - UNIT C AND D - - 2 UNIT A, B, E, F AND G -, Start Serial: 100045

1шт.

537080R1

DECAL

PRODUCT-GRAPHIC, CONTROL HANDLE, NOT ILLUSTRATED

1шт.

529706R1

TUBE

ASSY W/SLEEVE AND NUTS, AUX VALVE RETURN, 574, NOT ILLUSTRATED, Serial Range: -100954

1шт.

529706R1

TUBE

ASSY W/SLEEVE AND NUTS, AUX VALVE RETURN, 2500, NOT ILLUSTRATED, Serial Range: -100004

1шт.
