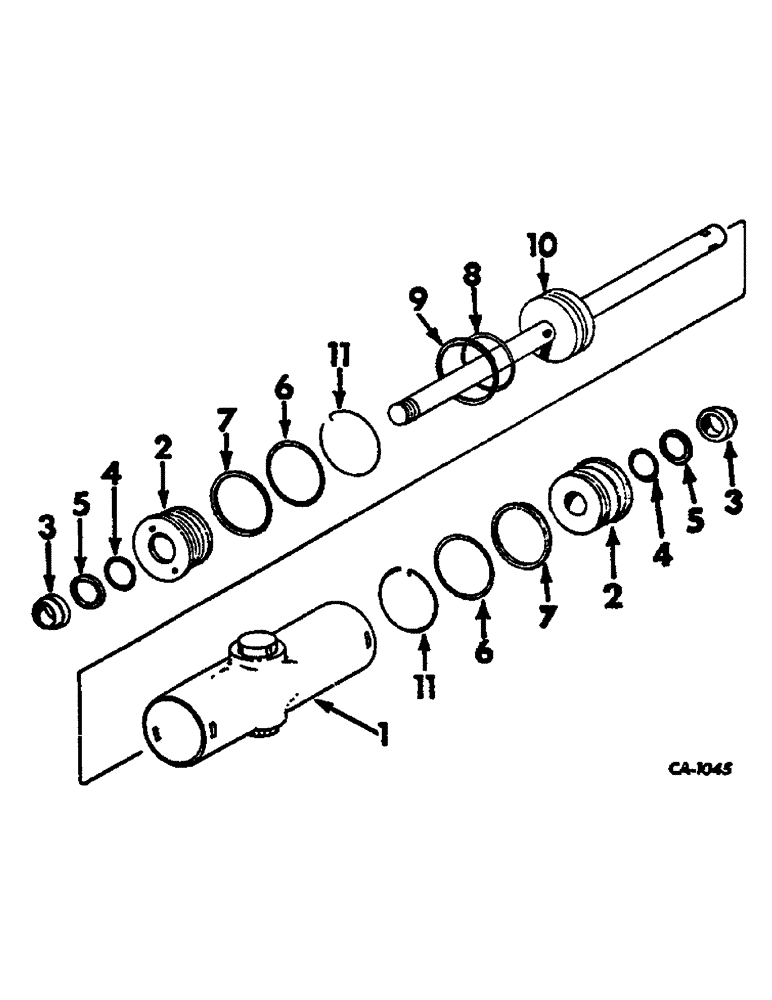

Запчасти Case IH 574 (10-010) - POWER STEERING CYLINDER (07) - HYDRAULICS

549667R91

STEERING CYLINDER

HYD POWER

1шт.

84336125R

REMAN-HYD CYLINDER

2500, 574 Both (EUROPE) (1/71-12/77), Reman for New P/N 549667R91

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

400566R91

O-RING

CYLINDER, HYD POWER STEERING -ORDER 549667R91 W/CLEVIS 549670R1 AND O-RING 570828R1-

1шт.

84336125R

REMAN-HYD CYLINDER

2500, 574 Both (EUROPE) (1/71-12/77), Reman for New P/N 400566R91

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

400587R1

HYD CYL SLEEVE

BODY ASSY

1шт.

84336125R

REMAN-HYD CYLINDER

2500, 574 Both (EUROPE) (1/71-12/77), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

400591R1

HEAD

REAR

2шт.

3

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER, PISTON ROD

2шт.

4

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 X 1-1/4 X 1/8

2шт.

5

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

PISTON ROD BACK-UP

2шт.

6

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 X 2-1/2 X 1/8 REAR HEAD

2шт.

7

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

REAR HEAD BACK-UP

2шт.

8

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2-1/16 X 2-1/4 X 3/32 PISTON SEAL

1шт.

9

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL, PISTON

1шт.

10

549668R1

PISTON ROD

ASSY

1шт.

10

400592R1

O-RING

ROD ASSY, PISTON -ORDER ROD 549668R1 W/CLEVIS 549670R1 AND O-RING 570828R1-

1шт.

11

385133R1

RETAINING WIRE

RING, RETAINING

2шт.

55355C91

GASKET KIT

SEAL FOR CYLINDER, NOT ILLUSTRATED, CONSISTS OF

1шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

379961R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

379959R1

RING,Square, 3.17mm Thk x 58mm ID

1шт.

385153R1

RING

1шт.

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

2шт.

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

2шт.

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER

2шт.
