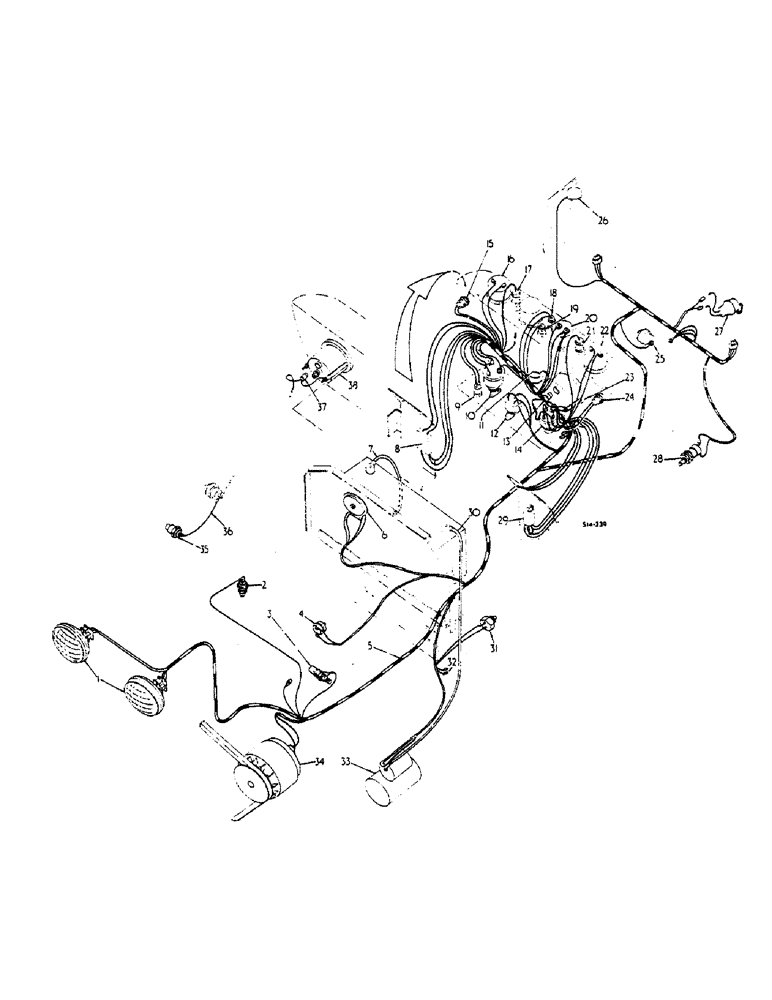

Запчасти Case IH 574 (08-52A) - MAIN CABLE HARNESS AND CONNECTIONS, WITH ALTERNATOR (06) - ELECTRICAL

1

LIGHT, HEAD R. H. AND L. H. - SEE HEADLIGHT -

1шт.

2

TRANSMITTER, HEAT INDICATOR - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

3

GLOW-PLUG - SEE THERMOSTART -

1шт.

4

SWITCH, BRAKE LIGHT - SEE BRAKE LIGHT SWITCH AND BRACKET -DELUXE-

1шт.

5

3116902R91

HARNESS

ASSY, MAIN CABLE

1шт.

6

HORN, ATTACHMENT - SEE HORN ATTACHMENT -

1шт.

7

3116906R1

CABLE

BATTERY NEG TO EARTH

1шт.

8

HOUSING, FUSE - SEE ENGINE CONTROLS AND SWITCHES -

1шт.

9

BUTTON, HORN - SEE ENGINE CONTROLS AND SWITCHES -

1шт.

10

SWITCH, KEY - SEE ENGINE CONTROLS AND SWITCHES -

1шт.

11

894348H1

WARNING LIGHT

ALTERNATOR

1шт.

894350H1

BULB

LAMP, 12V 2.2W MCC

1шт.

3119789R1

BULB

LAMP, 12V 2W 8.8MM TUBULAR - OPTIONAL -

1шт.

3074997R91

CAP

SCREWED W/LENS

1шт.

12

SWITCH, FLASHER - SEE FLASHER INSTRUMENTS -

1шт.

13

HOLDER, TACHOMETER

1шт.

LAMP, 12V 3W CAPLESS - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

14

SWITCH, LIGHT - SEE ENGINE CONTROL AND SWITCHES -

1шт.

15

LIGHT, TRAILER WARNING - SEE FLASHER INSTRUMENTS -

1шт.

16

INDICATOR, HEAT - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

17

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

705757R91

LAMP

PANEL 12V 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL 12V 6W MCC - OPTIONAL -

1шт.

18

3117436R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

3041099R1

LAMP

TRANS OIL PRESSURE WARNING 12V 2.2 MES

1шт.

19

3117435R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

3041099R1

LAMP

PARK BRAKE WARNING 12V 2.2 MES

1шт.

20

AMMETER - SEE INSTRUMENT PANEL GAUGES -

1шт.

21

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

705757R91

LAMP

PANEL 12V 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL 12V 6W MCC

1шт.

22

GAUGE, FUEL - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

23

TACHOMETER - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

24

LIGHT, TRACTOR WARNING - SEE FLASHER INSTRUMENTS -

1шт.

25

376855R2

SWITCH ASSY, TRANS. OIL PRESSURE WARNING LIGHT

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, OIL PRESSURE SWITCH

1шт.

26

TRANSMITTER, FUEL GAUGE - SEE FUEL TANK SUPPORTS AND PIPING -

1шт.

27

705271R1

SOCKET

POWER 2 PIN

1шт.

709237R2

BRACKET

POWER SOCKET -NOT REQUIRED WHEN DE-LUXE LIGHTING FITTED -

1шт.

28

529461R91

IGNITION SWITCH

PARKING BRAKE WARNING

1шт.

534351R1

COVER

WARNING LIGHT

1шт.

29

FLASHER, UNIT - SEE FLASHER INSTRUMENTS -

1шт.

30

528301R1

CABLE ASSY.

BATTERY TO SOL SWITCH

1шт.

31

SWITCH, SAFETY START - SEE NEUTRAL SAFETY SWITCH -

1шт.

32

CONNECTION, WINDSCREEN WIPER - SEE SAFETY CAB -

1шт.

33

STARTER - SEE STARTER MOTOR -

1шт.

34

ALTERNATOR - SEE ALTERNATOR AND CONNECTIONS -

1шт.

35

65425C1

SWITCH

TRANS OIL TEMP

1шт.

120614

NUT,Hex, #10 - 32

1шт.

120217

LOCK WASHER,#10

Hydrostatic Drive Tractors

1шт.

36

3113489R1

CABLE ASSY, FLYING LEAD

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL - HYDROSTATIC DRIVE TRACTORS -

1шт.

37

HOLDER, SPEEDOMETER LAMP 12V 3W CAPLESS - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

38

SPEEDOMETER - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

537025R1

CLIP

MAIN HARNESS, NOT ILLUSTRATED

1шт.

3070930R1

CLIP

MAIN HARNESS, NOT ILLUSTRATED

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Not illustrated

1шт.

103321

LOCK WASHER,3/8"

Not Illustrated

2шт.

3067819R1

SPARE PART MAIN HARNESS - ON GRILL HSG BRKT-, NOT ILLUSTRATED

1шт.

537024R1

CLIP

SAFETY START CABLE - ON BATTERY TRAY SUPPORT -, NOT ILLUSTRATED

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP SOLENOID, NOT ILLUSTRATED

2шт.

3116240R1

CLIP

BATTERY, NOT ILLUSTRATED

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

NO 8 x 3/8, NOT ILLUSTRATED

1шт.

225-10108

NUT,#8-32

Not Illustrated

1шт.

492-11008

LOCK WASHER,#8

Not Illustrated

1шт.

3113817R1

CLAMP, HORN CABLE, NOT ILLUSTRATED

1шт.

109084

NUT,1/4"-20, G5

Not Illustrated

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY, NOT ILLUSTRATED

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY, NOT ILLUSTRATED

4шт.

708115R1

PLATE ASSY.

CLIP, TEMP SENDING UNIT CABLE, NOT ILLUSTRATED

1шт.

539015R1

CLIP

MAIN CABLE HARNESS, NOT ILLUSTRATED

2шт.

708114R1

SPARE PART MAIN CABLE HARNESS, NOT ILLUSTRATED

1шт.

179812

GEAR

5/16-18 x 1/2 HEX HD CAP, NOT ILLUSTRATED

1шт.

103320

LOCK WASHER,5/16"

Not Illustrated

1шт.

708115R1

PLATE ASSY.

CLIP, MAIN CABLE HARNESS, NOT ILLUSTRATED

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Not illustrated

2шт.

103321

LOCK WASHER,3/8"

Not Illustrated

2шт.

289862R1

STRAP, FUEL LINE, NOT ILLUSTRATED

2шт.

3116908R1

CLIP,ELECTRICAL

SAFETY START CABLE, NOT ILLUSTRATED

1шт.

3116908R1

CLIP,ELECTRICAL

REAR HARNESS, NOT ILLUSTRATED

2шт.

366460R1

CABLE CLIP

INJECTION PUMP COVER, NOT ILLUSTRATED

2шт.
