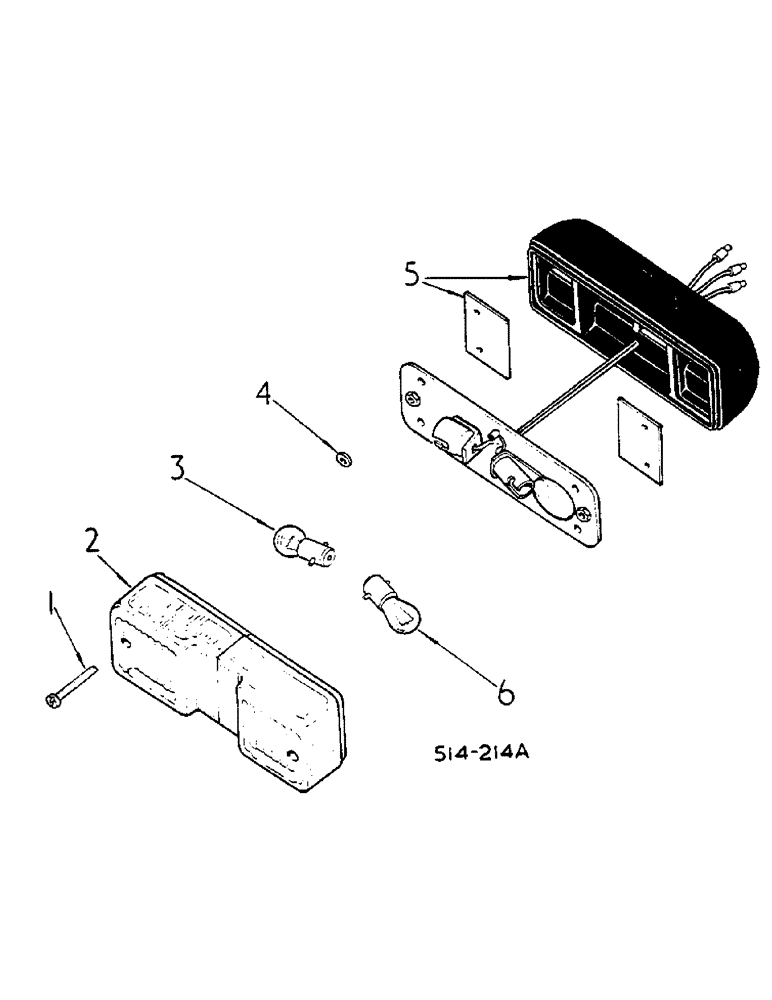

Запчасти Case IH 574 (08-50) - FENDER WIRING SIDE & FLASHER LIGHTS, DE-LUXE LIGHTING , FOR MACHINES W/ SAFETY CAB OR FRAME ONLY (06) - ELECTRICAL

3113666R92

LAMP

LIGHT, SIDE AND FLASHER L.H.

1шт.

3113667R92

LAMP BASE

LIGHT, SIDE AND FLASHER R.H.

1шт.

145193

BATTERY

NO. 10-16 X 1/2 S/TAP

8шт.

1

3112785R1

SCREW

4BA, X 1-1/2 ZINC PLTD

4шт.

2

3113395R1

LENS

CLEAR/ AMBER

2шт.

3

3113360R1

SPARE PART

LAMP 14/7W BULB

2шт.

4

3112786R1

WASHER

RING, RETAINING

4шт.

5

CUSHION, BLACK RUBBER R.H.

2шт.

5

CUSHION, BLACK RUBBER L.H.

2шт.

6

3025210R1

BULB

LAMP 12V 21W SCC

2шт.

3113658R91

HARNESS

FENDER L.H., NOT ILLUSTRATED

1шт.

3113659R91

HARNESS

FENDER R.H., NOT ILLUSTRATED

1шт.

708114R1

SPARE PART CABLE, NOT ILLUSTRATED

2шт.

530043R1

GROMMET

FENDER HARNESS, NOT ILLUSTRATED

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY L.H. FENDER, NOT ILLUSTRATED

7шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY R.H. FENDER, NOT ILLUSTRATED

9шт.
