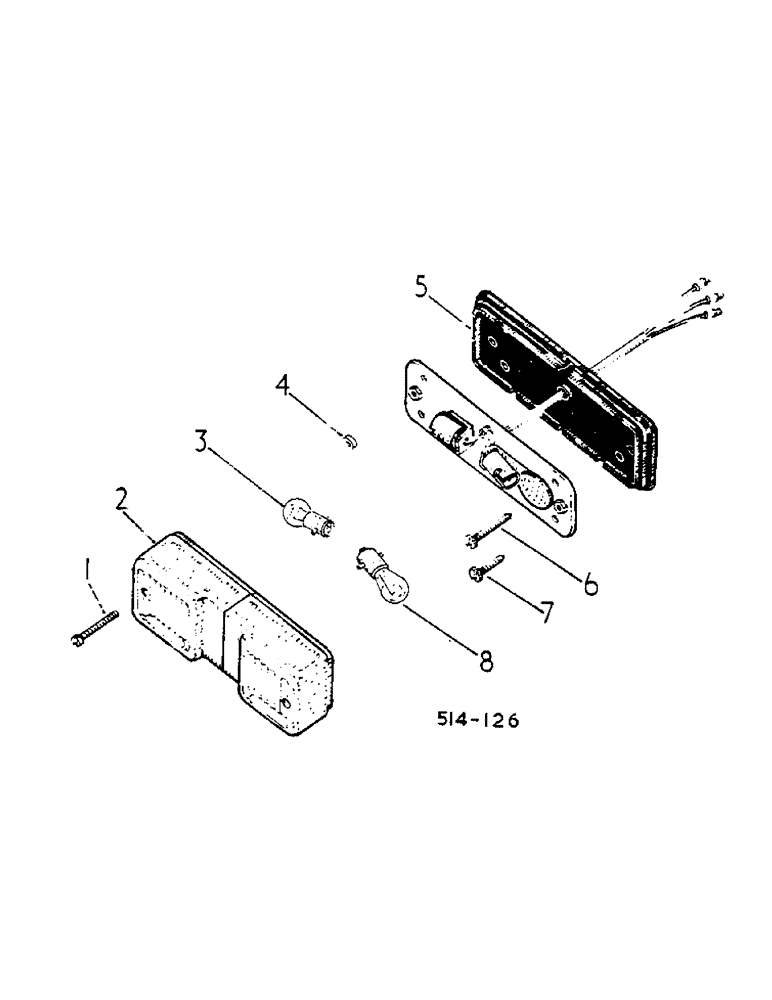

Запчасти Case IH 574 (08-49) - FENDER WIRING AND SIDE/FLASHER LIGHTS, DE-LUXE LIGHTING, FOR MACHINES W/ FLAT TOP FENDER ONLY (06) - ELECTRICAL

3112877R93

INDICATOR LIGHT

SIDE AND FLASHER

2шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

NO. 10-16 X 1/2 SELF TAP

2шт.

1

3112785R1

SCREW

4BA X 1-1/2 ZINC PLTD

4шт.

2

3113395R1

LENS

CLEAR/ AMBER

2шт.

3

3113360R1

SPARE PART

LAMP 14V/7W BULB

1шт.

4

3112786R1

WASHER

RING, RETAINING

4шт.

5

CUSHION, BLACK RUBBER -VERTICAL-

2шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

4шт.

7

24247R1

SCREW

NO. 10-16 X 7/8 PAN HD STD

4шт.

8

3025210R91

BULB

LAMP 12V 21W SCC

2шт.

3113658R91

HARNESS

FENDER L.H., NOT ILLUSTRATED

1шт.

3113659R91

HARNESS

FENDER R.H., NOT ILLUSTRATED

1шт.

708114R1

SPARE PART CABLE, NOT ILLUSTRATED

2шт.

530043R1

GROMMET

FENDER HARNESS, NOT ILLUSTRATED

2шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY R.H. FENDER, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY R.H. FENDER, NOT ILLUSTRATED

1шт.
