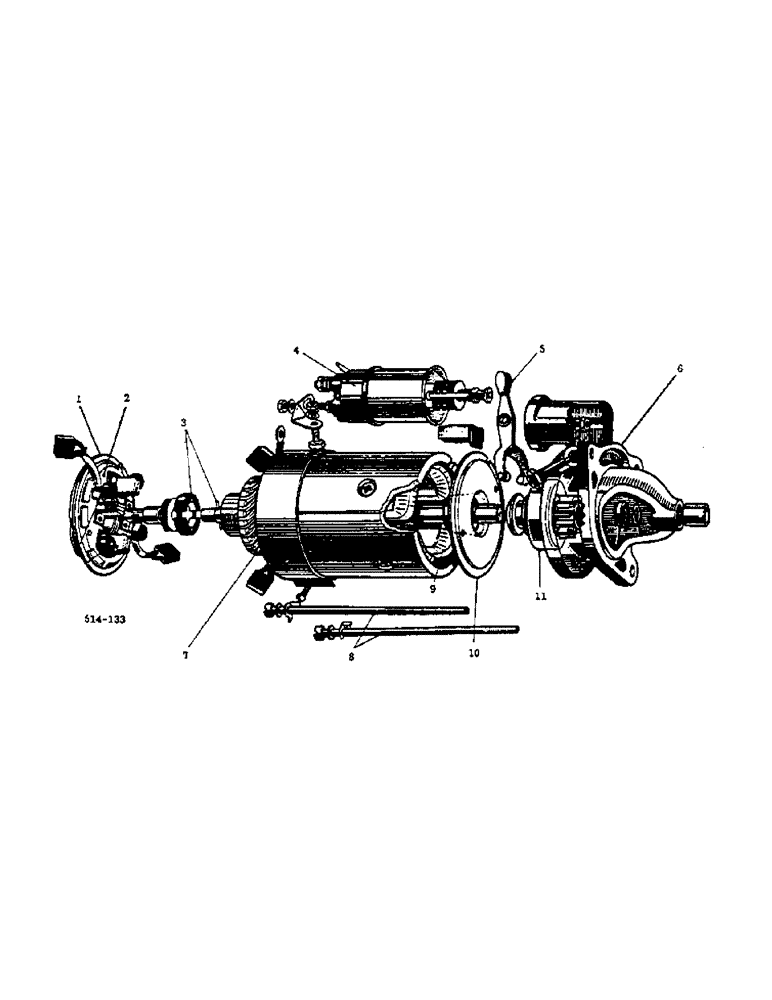

Запчасти Case IH 574 (08-45) - STARTER MOTOR, LUCAS (06) - ELECTRICAL

537140R91

STARTER MOTOR

CPTE -LUCAS M50-, Serial Range: -26336

1шт.

1

3113025R91

KIT

CE BRACKET ASSY

1шт.

2

3113026R91

PLATE ASSY.

BRUSH MOUNTING

1шт.

3113037R91

BRUSH SET

KIT

1шт.

3043618R91

VALVE SPRING

KIT, BRUSH SPRINGS

1шт.

3

3113030R91

KIT

BRAKES

1шт.

4

3113035R91

COVER

ASSY, SOLENOID END

1шт.

5

3113032R91

LINK

ASSY, SOLENOID

1шт.

6

3113039R91

BRACKET

ASSY, DE

1шт.

7

3113038R91

ARMATURE

ASSY

1шт.

8

3113036R91

BOLT

ASSY, THROUGH

1шт.

9

3113027R91

KIT

FIELD COILS

1шт.

10

3113028R91

BRACKET

ASSY, INTERMEDIATE

1шт.

11

3116471R91

DRIVE ASSY.

1шт.

11

3113033R91

DRIVE

ASSY

1шт.

3113029R91

BUSHING

KIT, NOT ILLUSTRATED

1шт.

3113031R91

KIT

SEALING, NOT ILLUSTRATED

1шт.

3206529R91

KIT

SUNDRY PARTS, NOT ILLUSTRATED

1шт.

3113034R91

SWITCH

ASSY, SOLENOID, NOT ILLUSTRATED, Serial Range: -26336

1шт.
