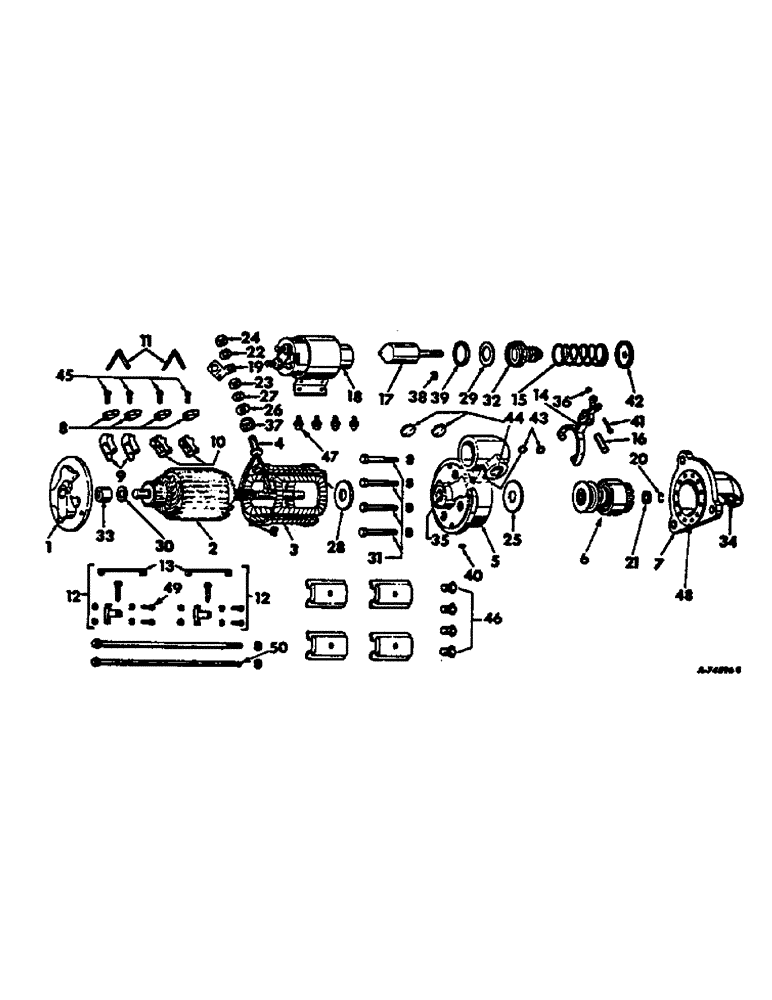

Запчасти Case IH 574 (08-40) - STARTER MOTOR, DELCO-REMY, DIESEL ENGINE TRACTORS (06) - ELECTRICAL

1113690

STARTING MOTOR

CPTE -DELCO REMY- -HYDROSTATIC DRIVE TRACTORS-

1шт.

1

1945617

HOLDER

FRAME, COMMUTATOR END

1шт.

1916439

WICK

COMMUTATOR END

1шт.

810819

PLUG

END

1шт.

2

1967045

ARMATURE

-USED W/MOTOR ASSY 1113690-

1шт.

3

1946386

COIL ASSY.

FIELD -4 COILS- -USED W/MOTOR ASSY 1113690-

1шт.

1914873

INSULATOR

FIELD COIL

2шт.

4

1933879

TERMINAL CONNECTOR

TERMINAL

1шт.

5

1942241

HOUSING

LEVER. CONSISTS OF

1шт.

1933999

BUSHING

1шт.

9411375

PLUG

2шт.

9419572

PLUG

1шт.

1947350

WICK

1шт.

6

1941157

MOTOR HOUSING

ASSY, DRIVE

1шт.

7

1947803

HOUSING

DRIVE

1шт.

1916439

WICK

DRIVE END

1шт.

8

1906987

BRUSH

4шт.

9

1940477

HOLDER

BRUSH GROUND

2шт.

10

1950546

HOLDER

BRUSH INSULATED

2шт.

11

1945620

SPRING

BRUSH

2шт.

12

1945923

PACKAGE

BRUSH SUPPORT -USED W/MOTOR ASSY 1113690-

2шт.

13

1930694

CABLE

WIRE, GROUND

2шт.

14

1942245

LEVER

SHIFT

1шт.

15

1948521

SPRING

LEVER

1шт.

16

-NOT USED-

1шт.

17

1942250

PLUNGER

1шт.

18

1115510

SOLENOID SWITCH

ASSY

1шт.

1917084

SCREW

SWITCH

4шт.

19

1946394

CONNECTOR, ELEC

CONNECTOR SWITCH -USED W/MOTOR ASSY 1113690-

1шт.

20

1928022

SNAP RING

PINION STOP RETAINER

1шт.

21

1928021

COLLAR

PINION STOP

1шт.

22

-NOT USED-

1шт.

23

805258

NUT

TERMINAL STUD -5/32 IN THICK-

1шт.

24

-NOT USED-

1шт.

25

NLS

NO LONGER SERVICED

BRAKE

1шт.

26

1950029

WASHER

INSULATING TERMINAL STUD

1шт.

27

9421425

WASHER

TERMINAL STUD -USED W/MOTOR ASSY 1113690-

1шт.

28

1946395

WASHER

SPACE -USED W/MOTOR ASSY 1113690-

1шт.

29

1942259

WASHER

RETAINER, SPRING

1шт.

30

1914842

WASHER

COMMUTATOR END SPACE

1шт.

31

122077

PLUG

DRIVE HOUSING ATTACHING

4шт.

32

1949618

BOOT

PLUNGER -USED W/MOTOR ASSY 1113690-

1шт.

33

1872678

BUSHING

COMMUTATOR END

1шт.

34

1955994

BUSHING

DRIVE END

1шт.

35

1933999

BUSHING

LEVER HOUSING

1шт.

36

1938376

RING, SNAP

RING SNAP LEVER ATTACHING PIN

1шт.

37

1931783

INSULATOR

BUSHING, TERMINAL STUD

1шт.

38

9415235

RING, SNAP

RING SNAP RETAINER

1шт.

39

1942256

RETAINER

SPRING 1-13/64 IN HOLE

1шт.

40

1947350

WICK

LEVER HOUSING

1шт.

41

1942253

PIN

LEVER ATTACHING

1шт.

42

1942282

PIN

SPRING 13/32 IN HOLE

1шт.

43

1419572

PLUG

1/2 IN DIAMETER LEVER HOUSING

2шт.

44

9411375

PLUG

1-3/16 DIAMETER LEVER HOUSING

2шт.

45

-NOT USED-

1шт.

46

1968396

SCREW

POLE SHOE -USED W/MOTOR ASSY 1113690-

8шт.

47

-NOT USED-

1шт.

48

-NOT USED-

1шт.

49

-NOT USED-

1шт.

50

1883865

BOLT

COMMUTATOR END THROUGH -USED W/MOTOR ASSY 1113690-

2шт.
