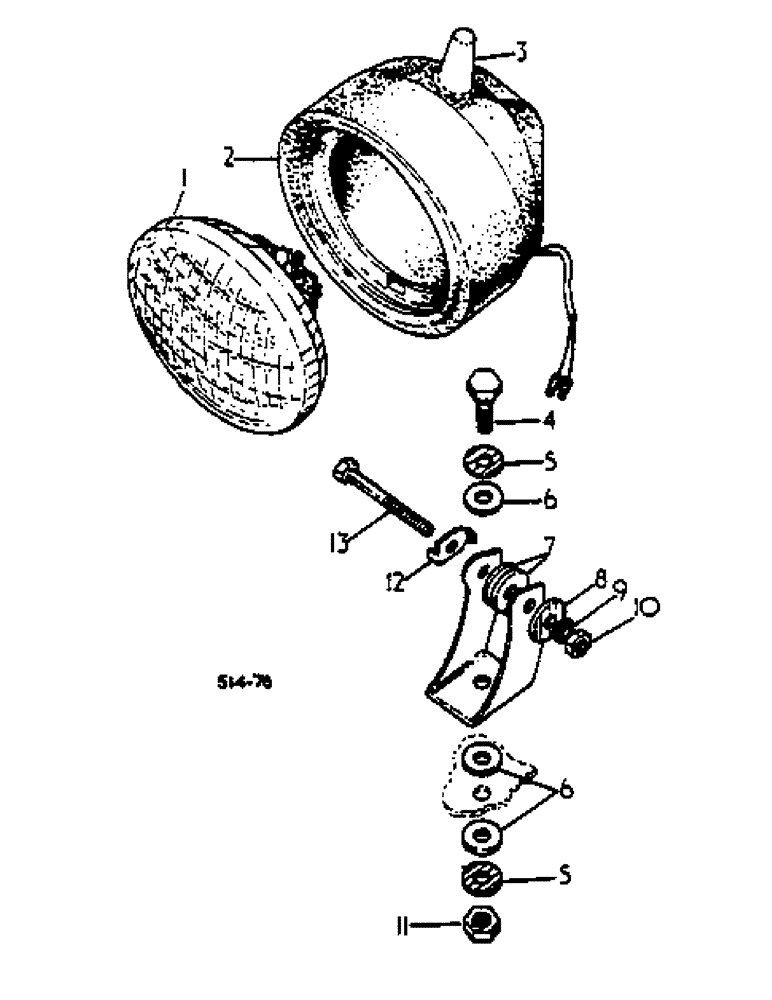

Запчасти Case IH 574 (08-36) - PLOUGH LIGHT (06) - ELECTRICAL

527696R91

LIGHT, PLOUGH -TRACTORS W/CROWN FENDERS-

1шт.

ORDER LIGHT 3112400R91, W/BRACKET 3108515R1, SCREW 120394 AND THREE WASHER 3112401R1

1шт.

531622R91

NO LONGER SERVICED

LIGHT, PLOUGH -TRACTORS W/FLAT TOP FENDERS-, 574, Serial Range: -101684

1шт.

531622R91

NO LONGER SERVICED

LIGHT, PLOUGH -TRACTORS W/FLAT TOP FENDERS-, 2500, Serial Range: -100016

1шт.

1

535850R1

LAMP

SEALED BEAM

1шт.

2

BODY -NOT SERVICED SEPARATELY-

1шт.

3112688R1

SWITCH

1шт.

3112699R1

SCREWDRIVER

NUT

1шт.

3

3112689R1

COVER

SWITCH

1шт.

4

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

5

446548

WASHER,0.38" ID x 0.75" OD x 0.05" Thk

3/8 FLAT STEEL

2шт.

6

3112401R1

WASHER

NYLON

3шт.

7

3112690R1

WASHER

NYLON

2шт.

8

16559R1

WASHER,1/4"

17/64 X 5/8 FLAT

1шт.

9

492-11025

LOCK WASHER,1/4"

1шт.

10

120367

NUT,Hex, 1/4" - 28, Gr 5

HEX 1/4 VNF

1шт.

11

231-1446

NUT,3/8" - 16, Gr 5

1шт.

12

3072945R1

WASHER

TAB

1шт.

13

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT HEX HD 1/4 VNF X 2

1шт.

W/BRACKET 3108515R1, SCREW 120394 AND THREE WASHER 3112401R1

1шт.
