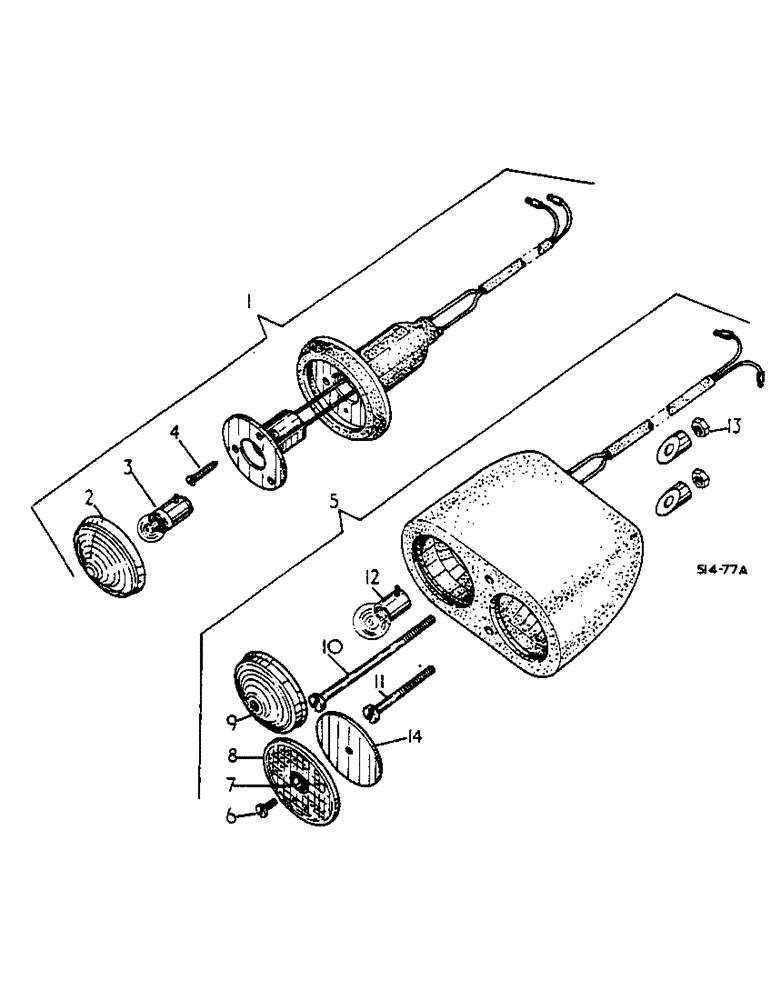

Запчасти Case IH 574 (08-30) - FENDER WIRING & LIGHTS, TRACTORS W/FLAT TOP FENDERS, 574 UP TO S/N 101684, 2500 UP TO S/N 100016 (06) - ELECTRICAL

1

527691R93

LIGHT ASSY.

SIDE

2шт.

2

3112638R1

LENS

CLEAR

2шт.

3

3113360R1

SPARE PART

LAMP 12V/6W BULB

2шт.

4

NLS

NO LONGER SERVICED

NO 6 X 1/2 SLT PAN HD TAP

6шт.

5

531623R93

LIGHT

LH TAIL -ILLUSTRATED-

1шт.

5

531624R93

LAMP

LIGHT, RH TAIL

1шт.

6

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

2шт.

7

3112698R1

WASHER

CUP NYLON

2шт.

8

3112697R91

REFLECTOR

CPTE -RED-

2шт.

9

3112696R1

LENS

-RED-

2шт.

9

3074003R1

LENS

-RED- -USED W/531623R91 AND 531624R91-

2шт.

10

25945R1

SCREW

SPARE PART 1/4 X 4 CROSS RECESS ZINC PLATED

2шт.

3112700R1

WASHER

1шт.

11

445998

SCREW

SPARE PART 1/4 X 2 CROSS RECESS ZINC PLATED

2шт.

3112700R1

WASHER

1шт.

12

894878H1

BULB

LAMP 12V 21/5W BULB

2шт.

13

86625061

NUT,1/4"-20, GB

W/Nylon insert

4шт.

14

3115981R1

PLATE

REFLECTOR BACKING

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR TWO WAY, NOT ILLUSTRATED

5шт.

531625R1

GROMMET

FENDER HARNESS, NOT ILLUSTRATED

1шт.

531620R1

HARNESS

LH FENDER, NOT ILLUSTRATED

1шт.

531621R1

HARNESS

RH FENDER - TRACTORS W/FLAT TOP FENDERS FITTED W/CAB -, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY, NOT ILLUSTRATED

12шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY, NOT ILLUSTRATED

1шт.

117957

GROMMET,1/4" ID x 5/8" x .062"

CABLE ENTRY, NOT ILLUSTRATED

1шт.

3112398R91

HARNESS

R.H. FENDER, NOT ILLUSTRATED

1шт.

3112397R91

HARNESS

SPARE PART L.H. FENDER, NOT ILLUSTRATED

1шт.

3112399R1

PLUG, FLASHER LAMP, NOT ILLUSTRATED

2шт.

3067818R1

CLIP, CABLE ENTRY, NOT ILLUSTRATED

2шт.
