Запчасти Case IH 574 (08-26) - ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL

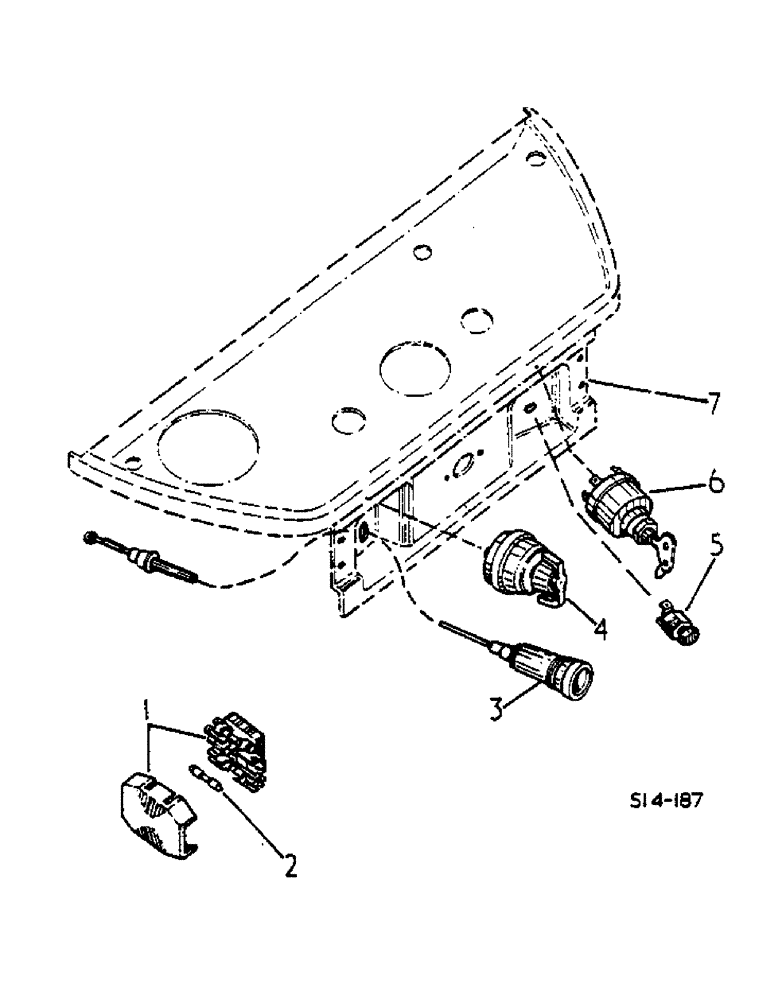

Схема запчастей Case IH 574 - (08-26) - ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL
3
4
2
6
1
5
7

Артикул

Название

Примечание

Количество

1

3113098R1

HOLDER

HOUSING, FUSE -TRACTORS FITTED W/ALTERNATOR-

1шт.

3116646R1

SCREW 8-32 UNC X 5/8 PAN HD

1шт.

3116647R1

SCREW 10-32 UNF X 1/2 PAN HD

1шт.

1

528358R1

HOLDER

HOUSING, FUSE -TRACTORS FITTED W/GENERATOR-

1шт.

2

707887R1

NO LONGER SERVICED

FUSE, CARTRIDGE -OPTIONAL W/700166R1-

2шт.

2

700166R1

FUSE

CARTRIDGE -OPTIONAL W/707887R1- -ONE REQUIRED FOR TRACTORS FITTED W/GENERATOR-

2шт.

2

3113048R1

FUSE

50 AMP -TRACTORS FITTED W/ALTERNATOR-

2шт.

3

528991R91

CIGAR LIGHTER

1шт.

3113870R91

HEATER

UNIT

1шт.

707887R1

NO LONGER SERVICED

FUSE, 25 AMP -OPTIONAL W/700166R1-

1шт.

700166R1

FUSE

FUSE, 25 AMP -OPTIONAL W/707887R1-

1шт.

4

528357R1

LIGHT SWITCH

LIGHT

1шт.

5

530909R1

SWITCH

SPARE PART ASSY, HORN

1шт.

6

3107556R92

SWITCH ASSY

ASSY, IGNITION KDY -C.A.V. INJECTION-

1шт.

6

529800R91

SWITCH ASSY

ASSY, IGNITION KEY W/KEYS NUT AND WASHER -BOSCH INJECTION-

1шт.

534211R1

SPRING WASHER

SPRING

1шт.

3110259R1

KEY

IGNITION

2шт.

371486R1

SPARE PART 5/8-32 HEX

1шт.

538389R1

TERMINAL CONNECTOR

-TRACTORS FITTED W/GENERATOR-

1шт.

7

PANEL ASSY, INSTRUMENT -REFER TO INSTRUMENT PANEL AND GAUGES LISTING, SECTION 11-

1шт.

Выбрано товаров: 20
