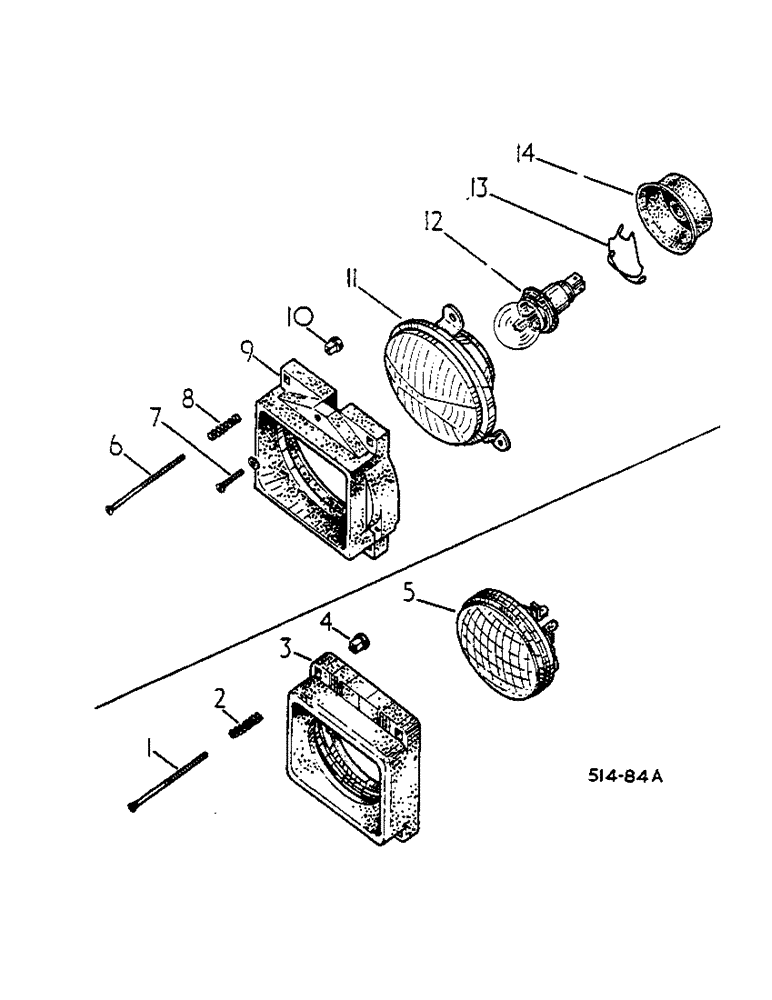

Запчасти Case IH 574 (08-21) - HEADLIGHT (06) - ELECTRICAL

1

530179

SCREW, HEADLIGHT MOUNTING, DOMESTIC

8шт.

21870R1

WASHER

17/64 X 3/4 X 16 GA C-Z, DOMESTIC

8шт.

2

528533R1

SPRING

HEADLIGHT HOUSING, DOMESTIC

8шт.

3

537013R1

HOUSING

HEADLIGHT UNIT, DOMESTIC

2шт.

4

537014R1

INSERT

HEADLIGHT HOUSING, DOMESTIC

8шт.

5

3072947R91

HEADLIGHT

UNIT, DOMESTIC

2шт.

6

530179R1

SCREW

HEADLIGHT MOUNTING, EUROPEAN, Start Serial: 001876

8шт.

21870R1

WASHER

17/64 X 3/4 X 16 GA C-Z, EUROPEAN, Start Serial: 001876

8шт.

7

537774R1

SCREW

HEADLIGHT UNIT MOUNTING, EUROPEAN, Start Serial: 001876

6шт.

933187R1

NUT,M5, Cl 8

HEX, EUROPEAN, Start Serial: 001876

6шт.

395-31022

WASHER,#10

WASHER 13/64 X 15/32 X .36, EUROPEAN, Start Serial: 001876

6шт.

8

528533R1

SPRING

HEADLIGHT HOUSING, EUROPEAN, Start Serial: 001876

8шт.

9

537773R1

HOUSING

HEADLIGHT UNIT, EUROPEAN, Start Serial: 001876

2шт.

10

537014R1

INSERT

HEADLIGHT HOUSING, EUROPEAN, Start Serial: 001876

8шт.

11

3115606R1

HEADLIGHT

UNIT -AUTEROCHE-, EUROPEAN, Start Serial: 001876

2шт.

11

537777R1

LIGHT

HEAD UNIT -HELLA- -ILLUSTRATED-, EUROPEAN, Start Serial: 001876

2шт.

11

537780R1

LIGHT, HEAD UNIT -BOSH-, EUROPEAN, Start Serial: 001876

2шт.

537781R1

CLIP, HEADLIGHT MOUNTING -BOSH-, EUROPEAN, Start Serial: 001876

3шт.

12

537775R1

LAMP

12V 45/40W WHITE BULB, EUROPEAN, Start Serial: 001876

2шт.

12

537776R1

LAMP

12V 45/40W YELLOW BULB, EUROPEAN, Start Serial: 001876

2шт.

13

537778R1

CLIP

HEADLIGHT BULB MOUNTING - HELLA-, EUROPEAN, Start Serial: 001876

1шт.

13

537782R1

CLIP, HEADLIGHT BULB MOUNTING -BOSH-, EUROPEAN, Start Serial: 001876

1шт.

14

537779R1

CAP

HEADLIGHT BULB SEALING -HELLA-, EUROPEAN, Start Serial: 001876

1шт.

14

537783R1

CAP, HEADLIGHT BULB SEALING -BOSH-, EUROPEAN, Start Serial: 001876

1шт.

14

3115607R1

HEADLIGHT

CAP, RUBBER - AUTEROCHE, EUROPEAN, Start Serial: 001876

2шт.

537771R91

LIGHT

ASSY, HEADLIGHT -HELLA-, NOT ILLUSTRATED, -CONSISTS OF

2шт.

537779R1

CAP

NOT ILLUSTRATED

1шт.

537778R1

CLIP

NOT ILLUSTRATED

1шт.

537777R1

LIGHT

NOT ILLUSTRATED

1шт.

537772R91

SPARE PART

LIGHT ASSY, HEADLIGHT -BOSH-, NOT ILLUSTRATED, -CONSISTS OF

2шт.

537783R1

CAP, NOT ILLUSTRATED

1шт.

537782R1

CLIP, NOT ILLUSTRATED

1шт.

537781R1

CLIP, NOT ILLUSTRATED

3шт.

537780R1

LIGHT, NOT ILLUSTRATED

1шт.

3115602R91

HEADLIGHT

LIGHT ASSY HEADLIGHT -AUTEROCHE-, NOT ILLUSTRATED, -CONSISTS OF-, Serial Range: 000881-001875

1шт.

3115607R1

HEADLIGHT

CAP, NOT ILLUSTRATED, Serial Range: 000881-001875

1шт.

3115606R1

HEADLIGHT

NOT ILLUSTRATED, Serial Range: 000881-001875

1шт.

4317117R1

BRACKET, CPTE HEADLAMP, NOT ILLUSTRATED

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

Not Illustrated

8шт.

NLS

NO LONGER SERVICED

10-24 X 1 OVAL HD MACH, NOT ILLUSTRATED

8шт.

120217

LOCK WASHER,#10

Not Illustrated

8шт.

21870R1

WASHER

NOT ILLUSTRATED

2шт.

3057536R91

HEADLAMP

CPTE, LH, NOT ILLUSTRATED

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

Not Illustrated

2шт.

80681

LOCK WASHER,5/16"

RSL, Not Illustrated

2шт.

3057539R1

LIGHT CPTE, HEAD RH, NOT ILLUSTRATED

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

Not Illustrated

2шт.

80681

LOCK WASHER,5/16"

RSL, Not Illustrated

2шт.

3076115R1

BULB,Halogen, 12V, 40W

LAMP 12V 45/40W WHITE BULB, NOT ILLUSTRATED

2шт.

3050198R1

LAMP 12V 45/40W YELLOW BULB, NOT ILLUSTRATED

2шт.
