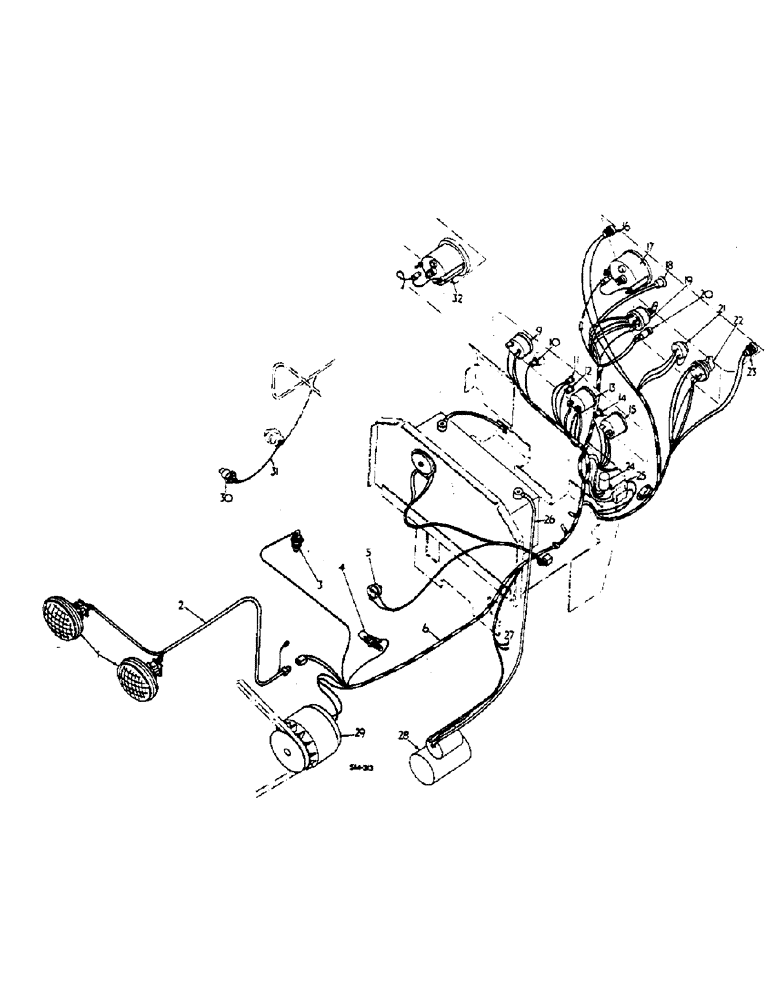

Запчасти Case IH 574 (08-16) - MAIN PANEL HARNESS AND CONNECTIONS, W/ALTERNATOR (06) - ELECTRICAL

1

LIGHT, HEAD R.H. AND L.H. - SEE HEADLIGHT -

1шт.

2

3113095R1

HARNESS

ASSY, HEADLIGHT

1шт.

3

TRANSMITTER, HEAT INDICATOR - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

4

GLOW-PLUG - SEE THERMOSTART -

1шт.

5

SWITCH, BRAKE LIGHT - SEE BRAKE LIGHT SWITCH AND BRACKET -DE-LUXE-

1шт.

6

3113701R91

HARNESS

ASSY, MAIN PANEL, 574, Start Serial: 101685

1шт.

6

3113701R91

HARNESS

ASSY, MAIN PANEL, 2500, Start Serial: 100017

1шт.

6

3113330R91

HARNESS

ASSY, MAIN PANEL, 574, Serial Range: -101684

1шт.

6

3113330R91

HARNESS

ASSY, MAIN PANEL, 2500, Serial Range: -100016

1шт.

7

HORN - SEE HORN -

1шт.

8

3113066R1

CABLE

BATTERY NEGATIVE TO EARTH - SYNCHROMESH DRIVE TRACTORS -

1шт.

8

529967R1

CABLE

BATTERY NEGATIVE TO EARTH - HEAVY DUTY BATTERY ATT. - - HYDROSTATIC DRIVE TRACTORS -

1шт.

9

INDICATOR, HEAT - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

10

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

1шт.

705757R91

LAMP

PANEL 12V 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL, 12V 6W MCC - OPTIONAL -

1шт.

11

3117436R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

1шт.

3041099R1

LAMP

TRANS. OIL PRESSURE WARNING 12V 2.2 MES

1шт.

12

3117435R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

1шт.

3041099R1

LAMP

PARK BRAKE WARNING 12V 2.2 MES

1шт.

13

AMMETER - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

14

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

1шт.

705757R91

LAMP

PANEL 12V 5W MCC

1шт.

751467R1

BULB

LAMP, PANEL 12V 6W MCC

1шт.

15

GAUGE, FUEL - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

16

LIGHT, TRAILER WARNING - SEE FLASHER INSTRUMENTS -

1шт.

17

SPEEDOMETER - SEE INSTRUMENT PANEL AND GAUGES - - HYDROSTATIC DRIVE TRACTORS -

1шт.

18

894348H1

WARNING LIGHT

LAMP, ALTERNATOR

1шт.

19

SWITCH, KEY - SEE ENGINE CONTROLS AND SWITCHES -

1шт.

20

BUTTON, HORN - SEE ENGINE CONTROLS AND SWITCHES -

1шт.

21

SWITCH, FLASHER - SEE FLASHER INSTRUMENTS -

1шт.

22

SWITCH, LIGHT - SEE ENGINE CONTROL AND SWITCHES -

1шт.

23

LIGHT, TRACTOR WARNING - SEE FLASHER INSTRUMENTS -

1шт.

24

FLASHER, UNIT - SEE FLASHER INSTRUMENTS -

1шт.

25

HOUSING, FUSE - SEE ENGINE CONTROLS AND SWITCHES -

1шт.

26

528301R1

CABLE ASSY.

BATTERY TO STARTER B TERM

1шт.

27

CONNECTOR, WINDSCREEN WIPER - SEE SAFETY CAB -

2шт.

28

STARTER - SEE STARTER MOTOR -

1шт.

29

ALTERNATOR - SEE ALTERNATOR AND CONNECTIONS -

1шт.

30

65425C1

SWITCH

TRANS OIL TEMPERATURE

1шт.

120614

NUT,Hex, #10 - 32

1шт.

120217

LOCK WASHER,#10

Hydrostatic Drive Tractors

1шт.

31

3113489R1

CABLE, ASSY, FLYING LEAD

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL - HYDROSTATIC DRIVE TRACTORS -

1шт.

32

TACHOMETER - SEE INSTRUMENT PANEL AND GAUGES -

1шт.

535305R1

CLIP

PANEL HARNESS, NOT ILLUSTRATED

2шт.

537025R1

CLIP

PANEL HARNESS, NOT ILLUSTRATED

1шт.

3070930R1

CLIP

MAIN HARNESS, NOT ILLUSTRATED

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Not illustrated

1шт.

103321

LOCK WASHER,3/8"

Not Illustrated

2шт.

3067819R1

SPARE PART HEADLIGHT HARNESS, NOT ILLUSTRATED

1шт.

535303R1

CABLE CLIP

EDGE, NOT ILLUSTRATED

1шт.

537024R1

CLIP

SAFETY START CABLE - ON BATTERY TRAY SUPPORT -, NOT ILLUSTRATED

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP SOLENOID, NOT ILLUSTRATED

3шт.

366460R1

CABLE CLIP

FUEL SENDER, NOT ILLUSTRATED

1шт.

537024R1

CLIP

BRAKE LIGHT CABLE - ON BATTERY TRAY SUPPORTS -, NOT ILLUSTRATED

1шт.

3116240R1

CLIP

BATTERY CABLE, NOT ILLUSTRATED

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

NO. 8 X 3/8, NOT ILLUSTRATED

1шт.

225-10108

NUT,#8-32

Not Illustrated

1шт.

492-11008

LOCK WASHER,#8

Not Illustrated

1шт.

3112817R1

CLAMP

HORN CABLE, NOT ILLUSTRATED

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

Not illustrated

1шт.

109084

NUT,1/4"-20, G5

Not Illustrated

1шт.

103319

LOCK WASHER,1/4"

Not Illustrated

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY PANEL HARNESS, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY PANEL HARNESS, NOT ILLUSTRATED

2шт.

708115R1

PLATE ASSY.

CLIP, TEMP SENDING UNIT CABLE, NOT ILLUSTRATED

1шт.
