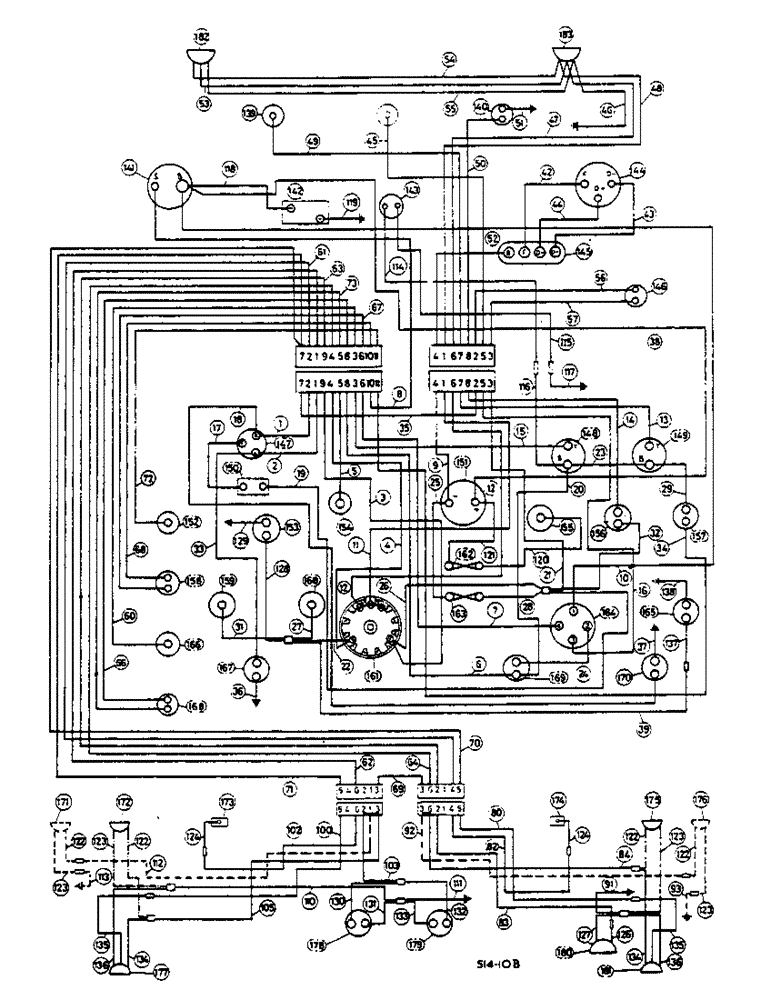

Запчасти Case IH 574 (08-03) - STARTING AND LIGHTING, TRACTORS FITTED W/GENERATOR (06) - ELECTRICAL

528304R3

HARNESS ASSY, INSTRUMENT PANEL CABLE - ORDER HARNESS PACKAGE 3113092R91 -

1шт.

3113088R1

HARNESS

ASSY, INSTRUMENT PANEL CABLE -CONSISTS OF REF NOS 1 TO 39-

1шт.

1

CABLE, CONNECTOR 11 WAY LH PIN 2 TO FLASHER SWITCH TERM R -GREEN/WHITE-

1шт.

2

CABLE, CONNECTOR 11 WAY LH PIN 1 TO FLASHER SWITCH TERM L -GREEN/RED-

1шт.

3

CABLE, CONNECTOR 11 WAY LH PIN 9 TO LIGHT SWITCH TERM 4 -RED/WHITE-

1шт.

4

CABLE, CONNECTOR 11 WAY LH PIN 4 TO LIGHT SWITCH TERM 8 -RED-

1шт.

5

CABLE, CONNECTOR 11 WAY LH PIN 7 TO PARKING BRAKE WARNING LIGHT -PURPLE/RED-

1шт.

6

CABLE, CONNECTOR 11 WAY LH PIN 8 TO AUXILIARY FUSE OUT TERM -GREEN-

1шт.

7

CABLE, CONNECTOR 11 WAY LH PIN 6 TO KEY SWITCH TERM 4 -RED/BLACK-

1шт.

8

CABLE, CONNECTOR 11 WAY LH PIN 10 TO STARTER MOTOR S TERM -WHITE/RED-

1шт.

9

CABLE, AMMETER NEGATIVE TERM TO CONNECTOR 8 WAY RH PIN 4 -BROWN/WHITE-

1шт.

10

CABLE, STARTER MOTOR B TERM TO KEY SWITCH TERM 1 -RED-

1шт.

11

CABLE, LIGHT SWITCH TERM 13 TO CONNECTOR 8 WAY RH PIN 1 -BLUE/YELLOW-

1шт.

12

CABLE, LIGHT SWITCH TERM 12 TO CONNECTOR 8 WAY RH PIN 6 -BLUE/RED-

1шт.

13

CABLE, HEAT INDICATOR TERM T TO CONNECTOR 8 WAY RH PIN 7 -GREEN/BLUE-

1шт.

14

CABLE, HORN PUSH TO CONNECTOR 8 WAY RH PIN 8 -PURPLE/BLACK-

1шт.

15

CABLE, CONNECTOR 11 WAY LH PIN 3 TO FUEL GAUGE TERM T -GREEN/BLACK-

1шт.

16

CABLE, KEY SWITCH TERM 3 TO CONNECTOR 8 WAY RH PIN 5 -BROWN/RED-

1шт.

17

CABLE, FLASHER UNIT TO FLASHER SWITCH TERM F -LIGHT GREEN/BROWN-

1шт.

18

CABLE, FLASHER WARNING LIGHT RH TO FLASHER SWITCH TERM R -GREEN/WHITE-

1шт.

19

CABLE, FLASHER UNIT TO NO 1 LINE FUSE CONNECTOR -GREEN-

1шт.

20

CABLE, FUEL GAUGE TERM B TO AUXILIARY FUSE OUT TERM -GREEN-

1шт.

21

CABLE, NO 1 LINE FUSE CONN TO CONNECTOR 11 WAY RH PIN 3 -GREEN-

1шт.

22

CABLE, LIGHT SWITCH TERM 8 TO PANEL LIGHTS CONN -RED-

1шт.

23

CABLE, FUEL GAUGE TERM 8 TO HEAT INDICATOR TERM B -GREEN-

1шт.

24

CABLE, KEY SWITCH TERM 2 TO AUXILIARY FUSE IN TERM -WHITE-

1шт.

25

CABLE, AMMETER NEGATIVE TERM TO NO 1 LINE FUSE -BROWN/BLUE-

1шт.

26

CABLE, LIGHT SWITCH TERM 4 TO NO 1 LINE FUSE CONN -BROWN/BLUE-

1шт.

27

CABLE, PANEL LIGHT NO 2 TO PANEL LIGHTS CONN -RED-

1шт.

28

CABLE, NO 1 LINE FUSE TO NO 1 LINE FUSE CONN -BROWN/BLUE-

1шт.

29

CABLE, HEAT INDICATOR TERM B TO TRANS OIL PRESSURE WARNING LIGHT -GREEN-

1шт.

30

-NOT USED-

1шт.

31

CABLE, PANEL LIGHT NO 1 TO PANEL LIGHT CONN -RED-

1шт.

32

CABLE, HORN PUSH TO NO 1 LINE FUSE CONN -PURPLE-

1шт.

33

CABLE, FLASHER SWITCH TERM L TO FLASHER WARNING LIGHT LH -GREEN/RED-

1шт.

34

CABLE, TRANS OIL PRESSURE WARNING LIGHT TO CONNECTOR 11 WAY LH PIN 11 -BLACK/RED-

1шт.

35

CABLE, CONNECTOR 8 WAY RH PIN 2 TO CONNECTOR 11 WAY LH PIN 7 -GREEN/PURPLE-

1шт.

36

CABLE, FLASHER WARNING LIGHT LH TO EARTH -BLACK-

1шт.

37

CABLE, FLASHER WARNING LIGHT RH TO EARTH -BLACK-

1шт.

38

CABLE, STARTER MOTOR B TERM TO AMMETER POSITIVE TERM -RED-

1шт.

39

CABLE, SPEEDOMETER CONN TO PANEL LIGHT CONN -RED-

1шт.

528302R2

HARNESS ASSY, MAIN CABLE - ORDER HARNESS PACKAGE 3113092R91 -

1шт.

3113089R1

WIRE HARNESS

HARNESS ASSY, MAIN CABLE -CONSISTS OF REF NOS 40 TO 59-

1шт.

40

-NOT USED-

1шт.

41

-NOT USED-

1шт.

42

CABLE, GENERATOR TERM F TO REGULATOR TERM F -BROWN/GREEN-

1шт.

43

CABLE, GENERATOR TERM D NEGATIVE TO REGULATOR TERM D NEGATIVE -BLACK-

1шт.

44

CABLE, GENERATOR TERM D POSITIVE TO REGULATOR TERM D POSITIVE -BROWN/YELLOW-

1шт.

45

CABLE, CONNECTOR 8 WAY RH PIN 5 TO MANIFOLD HEATER -BROWN/RED-

1шт.

46

CABLE, RH HEADLAMP CONN TO EARTH -BLACK-

1шт.

47

CABLE, CONNECTOR 8 WAY RH PIN 6 TO RH HEADLAMP MAIN CONN -BLUE/RED-

1шт.

48

CABLE, CONNECTOR 8 WAY RH PIN 1 TO RH HEADLAMP DIP CONN -BLUE-YELLOW-

1шт.

49

CABLE, CONNECTOR 8 WAY RH PIN 7 TO RH HEAT INDICATOR TRANSMITTER -GREEN-BLUE-

1шт.

50

CABLE, CONNECTOR 8 WAY RH PIN 8 TO RH HORN FEED TERM -PURPLE/BLACK-

1шт.

51

CABLE, EARTH TO HORN EARTH TERM -BLACK-

1шт.

52

CABLE, CONNECTOR 8 WAY RH PIN 4 TO RH REGULATOR TERM B -BROWN/WHITE-

1шт.

53

CABLE, HEADLAMP LH CONN MAIN TO HEADLAMP RH CONN MAIN -BLUE-RED-

1шт.

54

CABLE, HEADLAMP LH DIP CONN TO HEADLAMP RH DIP CONN -BLUE/YELLOW-

1шт.

55

CABLE, HEADLAMP LH EARTH CONN TO HEADLAMP RH EARTH CONN -BLACK-

1шт.

56

CABLE, CONNECTOR 8 WAY RH PIN 2 TO RH BRAKE LIGHT SWITCH -GREEN/PURPLE-

1шт.

57

CABLE, CONNECTOR 8 WAY RH PIN 3 TO RH BRAKE LIGHT SWITCH -GREEN-

1шт.

58

-NOT USED-

1шт.

59

-NOT USED-

1шт.

528303R1

SPARE PART HARNESS ASSY, SIDE AND TAIL LIGHT - ORDER HARNESS PACKAGE 3113092R91 -

1шт.

3113090R1

WIRE HARNESS

HARNESS ASSY, SIDE AND TAIL LIGHT -CONSISTS OF REF NOS 60 TO 73-

1шт.

60

CABLE, CONNECTOR 11 WAY LH PIN 3 TO FUEL TRANSMITTER -GREEN/BLACK-

1шт.

61

CABLE, CONNECTOR 11 WAY LH PIN 2 TO CONNECTOR 6 WAY RH PIN 4 -GREEN/WHITE-

1шт.

62

CABLE, CONNECTOR 11 WAY LH PIN 1 TO CONNECTOR 6 WAY LH PIN 6 -GREEN/RED-

1шт.

63

CABLE, CONNECTOR 11 WAY LH PIN 9 TO CONNECTOR 6 WAY RH PIN 2 -RED/WHITE-

1шт.

64

CABLE, CONNECTOR 11 WAY LH PIN 4 TO CONNECTOR 6 WAY RH PIN 6 -RED-

1шт.

65

-NOT USED-

1шт.

66

CABLE, CONNECTOR 11 WAY LH PIN 8 TO PARKING BRAKE SWITCH -GREEN-

1шт.

67

CABLE, CONNECTOR 11 WAY LH PIN 6 TO SAFETY START SWITCH -RED/BLACK-

1шт.

68

CABLE, CONNECTOR 11 WAY LH PIN 10 TO SAFETY START SWITCH -WHITE/RED-

1шт.

69

CABLE, CONNECTOR 6 WAY LH PIN 3 TO CONNECTOR 6 WAY RH PIN 3 -RED-

1шт.

70

CABLE, CONNECTOR 11 WAY LH PIN 7 TO CONNECTOR 6 WAY RH PIN 5 -GREEN/PURPLE-

1шт.

71

CABLE, CONNECTOR 11 WAY LH PIN 7 TO CONNECTOR 6 WAY LH PIN 5 -GREEN/PURPLE-

1шт.

72

CABLE, CONNECTOR 11 WAY LH PIN 11 TO TRANSMISSION OIL PRESSURE SWITCH -BLACK/RED-

1шт.

73

CABLE, CONNECTOR 11 WAY LH PIN 5 TO PARKING BRAKE SWITCH -PURPLE/RED-

1шт.

74

- NOT USED -

1шт.

75

- NOT USED -

1шт.

76

- NOT USED -

1шт.

77

- NOT USED -

1шт.

78

- NOT USED -

1шт.

79

- NOT USED - HARNESS, RH FENDER -CONSISTS OF REF NOS 80 TO 91-

1шт.

80

CABLE, CONNECTOR 6 WAY RH PIN 5 TO RH STOP LAMP CONN -GREEN/PURPLE-

1шт.

81

- NOT USED -

1шт.

82

CABLE, CONNECTOR 6 WAY PIN 4 TO RH FLASHER LIGHT CONN -GREEN/WHITE-

1шт.

83

CABLE, CONNECTOR 6 WAY RH PIN 2 TO PLOUGH LAMP CONN -RED/WHITE-

1шт.

84

CABLE, CONNECTOR 6 WAY RH PIN 6 TO RH SIDE AND TAIL LAMP CONN -RED-

1шт.

85

- NOT USED -

1шт.

86

- NOT USED -

1шт.

87

- NOT USED -

1шт.

88

- NOT USED -

1шт.

89

- NOT USED -

1шт.

90

- NOT USED -

1шт.

91

CABLE, EARTH TO SIDE AND TAIL LAMP AND PLOUGH LAMP EARTH CONN -BLACK- CABLE IN RH FENDER W/SAFETY CAB - CONSISTS OF REF NOS 92 AND 93 -

1шт.

92

CABLE, CONNECTOR 6 WAY RH PIN 3 TO RH SIDE LIGHT CONN -RED-

1шт.

93

CABLE, EARTH CONN TO EARTH -BLACK-

1шт.

94

NOT USED

1шт.

95

- NOT USED -

1шт.

96

- NOT USED -

1шт.

97

- NOT USED -

1шт.

98

- NOT USED -

1шт.

99

- NOT USED - HARNESS, LH FENDER -CONSISTS OF REF NOS 100 TO 111-

1шт.

100

CABLE, CONNECTOR 6 WAY LH PIN 5 TO STOP LAMP CONN LH -GREEN/PURPLE-

1шт.

101

-NOT USED-

1шт.

102

CABLE, CONNECTOR 6 WAY LH PIN 6 TO LH FLASHER CONN -GREEN/RED-

1шт.

103

CABLE, CONNECTOR 6 WAY LH PIN 2 TO POWER SOCKET CONN -RED-

1шт.

104

-NOT USED-

1шт.

105

CABLE, CONNECTOR 6 WAY LH PIN 3 TO SIDE AND TAIL LAMP CONN LH -RED-

1шт.

106

- NOT USED -

1шт.

107

- NOT USED -

1шт.

108

- NOT USED -

1шт.

109

- NOT USED -

1шт.

110

CABLE, SIDE AND TAIL LIGHT EARTH CONN LH TO POWER SOCKET CONN -BLACK-

1шт.

111

CABLE, EARTH TO POWER SOCKET CONN -BLACK- CABLE ASSY, CABLES IN LH FENDER WITH SAFETY CAB -CONSISTS OF REF NOS 112 AND 113-

1шт.

112

CABLE, CONNECTOR 6 WAY LH PIN 1 TO LH SIDE LIGHT CONN -RED-

1шт.

113

CABLE, EARTH TO LH SIDE LIGHT CONN -BLACK- CABLE ASSY, WINDSCREEN WIPER FLYING LEAD -CONSISTS OF REF NOS 114 AND 115-

1шт.

114

CABLE, WINDSCREEN WIPER TO CONNECTOR -GREEN-

1шт.

115

CABLE, WINDSCREEN WIPER TO CONNECTOR -BLACK- CABLE ASSY, WINDSCREEN WIPER FLYING LEAD EXTENSION -CONSISTS OF REF NOS 116 AND 117-

1шт.

116

CABLE, FUEL GAUGE TERM B TO CONNECTOR -GREEN-

1шт.

117

CABLE, EARTH TO CONNECTOR -BLACK-

1шт.

118

528301R1

CABLE ASSY.

CABLE, BATTERY POSITIVE TO STARTER MOTOR B -VIR AND PVC SHEATH-

1шт.

119

3113066R1

CABLE

CABLE, BATTERY NEGATIVE TO EARTH -SYNCHROMESH DRIVE TRACTORS-

1шт.

119

529967R1

CABLE

CABLE, BATTERY NEGATIVE TO EARTH -HYDROSTATIC DRIVE TRACTORS- -SYNCHROMESH DRIVE TRACTORS W/COLD START ATT- CABLE ASSY, CIGAR LIGHTER AND FUSE -PRE-WIRED- -CONSISTS OF REF NOS 120 AND 121-

1шт.

120

CABLE, CIGAR LIGHTER TO NO 2 FUSE -WHITE/GREEN-

1шт.

121

CABLE, AMMETER TO NO 2 FUSE -WHITE/GREEN- CABLE ASSY, SIDE LIGHTS -PRE-WIRED- -CONSISTS OF REF NOS 122 AND 123-

1шт.

122

CABLE, SIDE LIGHTS TO SIDE AND TAIL LIGHTS CONN -RED-

1шт.

123

CABLE, SIDE LIGHTS TO EARTH CONNECTOR -BLACK- CABLE ASSY, FLASHER LIGHTS -PRE-WIRED- -CONSISTS OF REF NO 124-

1шт.

124

CABLE, FLASHER LIGHT TO FLASHER LIGHT CONNECTOR -BLACK-

1шт.

125

-NOT USED- CABLE ASSY, PLOUGH LAMP -PRE-WIRED- -CONSISTS OF REF NOS 126 AND 127-

1шт.

126

CABLE, PLOUGH LAMP TO PLOUGH LAMP CONN -RED/WHITE-

1шт.

127

CABLE, PLOUGH LAMP TO SIDE AND TAIL LIGHT EARTH CONN -BLACK- CABLE ASSY, TACHOMETER ILLUMINATION LAMP -CONSISTS OF REF NOS 128 AND 129-

1шт.

128

CABLE, TACHOMETER LAMP TO PANEL LIGHTS CONN -RED-

1шт.

129

CABLE, TACHOMETER LAMP TO EARTH -BLACK- CABLE ASSY, POWER SOCKET -PRE-WIRED- -CONSISTS OF REF NOS 130 AND 131-

1шт.

130

CABLE, POWER SOCKET TO POWER SOCKET CONNECTOR -RED-

1шт.

131

CABLE, POWER SOCKET TO POWER SOCKET EARTH CONN -BLACK- CABLE ASSY, REGISTRATION NUMBER PLATE LIGHT -PRE-WIRED- -CONSISTS OF REF NOS 132 AND 133-

1шт.

132

CABLE, REGISTRATION NUMBER PLATE LIGHT TO POWER SOCKET CONN -RED-

1шт.

133

CABLE, REGISTRATION NUMBER PLATE LIGHT TO POWER SOCKET EARTH CONN -BLACK- CABLE ASSY, STOP AND TAIL LIGHTS -PRE-WIRED- -CONSISTS OF REF NOS 134 TO 136-

1шт.

134

CABLE, STOP AND TAIL LIGHTS TO STOP AND TAIL LIGHTS CONN -RED-

1шт.

135

CABLE, STOP AND TAIL LIGHTS TO STOP AND TAIL LIGHTS CONN -GREEN-

1шт.

136

CABLE, STOP AND TAIL LIGHTS TO EARTH -BLACK- CABLE ASSY, HYDROSTATIC SPEEDOMETER -PRE-WIRED- -CONSISTS OF REF NOS 137 + 138-

1шт.

137

CABLE, SPEEDOMETER LIGHT TO SPEEDOMETER CONN -RED-

1шт.

138

CABLE, SPEEDOMETER LIGHT TO EARTH -BLACK-

1шт.

139

TRANSMITTER, HEAT INDICATOR -SEE INSTRUMENT PANEL + GAUGES-

1шт.

140

HORN, 12V -SEE HORN-

1шт.

141

MOTOR. STARTER 12V -SEE STARTER MOTOR-

1шт.

142

BATTERY, 12V

1шт.

143

WIPER, WINDSCREEN

1шт.

144

GENERATOR, 12V -SEE GENERATOR AND CONNECTIONS-

1шт.

145

REGULATOR, 12V -SEE GENERATOR AND CONNECTIONS-

1шт.

146

SWITCH, BRAKE LIGHT -SEE BRAKE LIGHT-

1шт.

147

SWITCH, FLASHER -SEE DIRECTION INDICATOR-

1шт.

148

GAUGE, FUEL -SEE INSTRUMENT PANEL AND GAUGES-

1шт.

149

INDICATOR, HEAT -SEE INSTRUMENT PANEL AND GAUGES-

1шт.

150

FLASHER, 12V -SEE DIRECTION INDICATOR-

1шт.

151

AMMETER, -SEE INSTRUMENT PANEL AND GAUGES-

1шт.

152

376855R92

SWITCH

OIL PRESS WARNING LIGHT -HYDROSTATIC DRIVE TRACTORS- - SYNCHROMESH TRACTORS -, Start Serial: 10244

1шт.

384396R1

SPADE TERMINAL,Male

TERMINAL, OIL PRESSURE SWITCH

1шт.

536726R1

SPARE PART OIL PRESSURE SWITCH

1шт.

152

529796R1

IGNITION SWITCH

ASSY, OIL PRESS WARNING LIGHT -SYNCHROMESH DRIVE TRACTORS-, Serial Range: -10243

1шт.

153

LIGHT, TACHOMETER -SEE INSTRUMENT PANEL AND GAUGES-

1шт.

154

3117435R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

3041099R1

LAMP

PARK BRAKE 12V-2.2W MESS

1шт.

155

LIGHTER, CIGAR -SEE ENGINE CONTROL AND SWITCHES

1шт.

156

BUTTON, HORN -SEE ENGINE CONTROL AND SWITCHES

1шт.

157

3117436R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

3041099R1

LAMP

TRANS, OIL PRESSURE, 12V 2.2W MESS WARNING 12V-2.2W MES

1шт.

158

SWITCH, SAFETY START -SEE SAFETY START SWITCH-

1шт.

159

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

705757R91

LAMP

PANEL 12V-5W MCC

1шт.

751467R1

BULB

LAMP, PANEL, 12V-6V MCC -OPTIONAL-

1шт.

160

3117434R1

HOLDER

LAMP

1шт.

3117437R1

RIVET

CABLE

1шт.

705757R91

LAMP

PANEL 12V-5W MCC

1шт.

751467R1

BULB

PANEL, 12V-6V MCC -OPTIONAL-

1шт.

161

SWITCH, LIGHT -SEE ENGINE CONTROL AND SWITCH-

1шт.

162

FUSE NO 2 25 AMP

1шт.

163

3113048R1

FUSE

NO 1 50 AMP

1шт.

528305R1

SPARE PART FUSE

1шт.

171700

SCREW, PAN HD TAP 8-32 X 1/4

1шт.

164

SWITCH, KEY -SEE ENGINE CONTROL AND SWITCHS-

1шт.

165

LIGHT, SPEEDOMETER -SEE INSTRUMENT PANEL AND GAUGES-

1шт.

166

GAUGE, FUEL TRANSMITTER -SEE FUEL TANK SUPPORTS AND PIPING-

1шт.

167

LIGHT, FLASHER WARNING LH -SEE DIRECTION INDICATOR-

1шт.

168

529461R91

IGNITION SWITCH

PARK BRAKE WARNING

1шт.

534351R1

COVER

WARNING LIGHT SWITCH

1шт.

169

FUSE, AUXILIARY -SEE ENGINE CONTROL AND SWITCHES

1шт.

170

LIGHT, FLASHER WARNING RH -SEE DIRECTION INDICATOR-

1шт.

171

LIGHT, SIDE LH SAFETY CAB

1шт.

172

LIGHT, SIDE LH FENDER -SEE FENDER WIRING AND LAMPS-

1шт.

173

LIGHT, FLASHER LH -SEE DIRECTION INDICATOR-

1шт.

174

LIGHT, FLASHER RH -SEE DIRECTION INDICATOR-

1шт.

175

LIGHT, SIDE RH FENDER -SEE FENDER WIRING AND LAMPS-

1шт.

176

LIGHT, SIDE RH SAFETY CAB

1шт.

177

LIGHT, STOP AND TAIL LH -SEE FENDER WIRING AND LAMPS-

1шт.

178

SOCKET, POWER -SEE NUMBER PLATE W/LIGHT AND POWER SOCKET-

1шт.

179

LIGHT, REGISTRATION NUMBER PLATE, 12V 6W -SEE NUMBER PLATE W/LIGHT AND POWER SOCKET-

1шт.

180

LIGHT, PLOUGH , 12V -SEE PLOUGH LIGHT-

1шт.

181

LIGHT, STOP AND TAIL RH -SEE FENDER WIRING AND LAMPS-

1шт.

182

LIGHT, HEAD LH -SEE HEADLIGHT-

1шт.

183

LIGHT, HEAD RH -SEE HEADLIGHT-

1шт.

539309R1

SPARE PART CLIP, OIL PRESSURE INDICATOR TUBE, NOT ILLUSTRATED

2шт.

708113R1

CLIP

TEMPERATURE SENDING UNIT CABLE, NOT ILLUSTRATED

1шт.

708114R1

SPARE PART MAIN CABLE HARNESS, NOT ILLUSTRATED

2шт.

537024R1

CLIP

MAIN CABLE, NOT ILLUSTRATED

1шт.

708115R1

PLATE ASSY.

CLIP, MAIN CABLE, NOT ILLUSTRATED

1шт.

706843R1

CABLE STRAP/Retired CLIP, PANEL CABLE HARNESS, NOT ILLUSTRATED

2шт.

3070930R1

CLIP

MAIN CABLE HARNESS, NOT ILLUSTRATED

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Not illustrated

2шт.

103321

LOCK WASHER,3/8"

For use w/clip 3070930R1-, Not Illustrated

2шт.

3067819R1

SPARE PART MAIN CABLE HARNESS, NOT ILLUSTRATED

1шт.

537025R1

CLIP

PANEL HARNESS, NOT ILLUSTRATED

1шт.

366460R1

CABLE CLIP

FUEL SENDER CABLE, NOT ILLUSTRATED

1шт.

3067818R1

CLIP, FENDER HARNESS, NOT ILLUSTRATED

2шт.

3025270R1

STRAP, PLASTIC CABLE, NOT ILLUSTRATED

1шт.

894253H1

STRAP

CABLE, NOT ILLUSTRATED

4шт.

3066369R1

STUD

NYLON, NOT ILLUSTRATED

4шт.

3113049R1

ADAPTER

NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY, NOT ILLUSTRATED

1шт.

705903R1

SPARE PART 3 WAY, NOT ILLUSTRATED

2шт.

3113044R1

WIRE, THERMOSTART FLYING -FOR USE W/HARNESS 528304R2-, NOT ILLUSTRATED

1шт.

3113092R91

SERVICE KIT

PACKAGE, MAIN, PANEL AND SIDE AND TAIL LIGHT -CONSISTS OF, NOT ILLUSTRATED

1шт.

3113088R1

HARNESS

PANEL, NOT ILLUSTRATED

1шт.

3113089R1

WIRE HARNESS

MAIN CABLE, NOT ILLUSTRATED

1шт.

3113090R1

WIRE HARNESS

SIDE AND TAIL LIGHT, NOT ILLUSTRATED

1шт.

306132C1

CABLE TIE,14.5" L

CABLE STRAP LOCK 14 in, NOT ILLUSTRATED

2шт.
