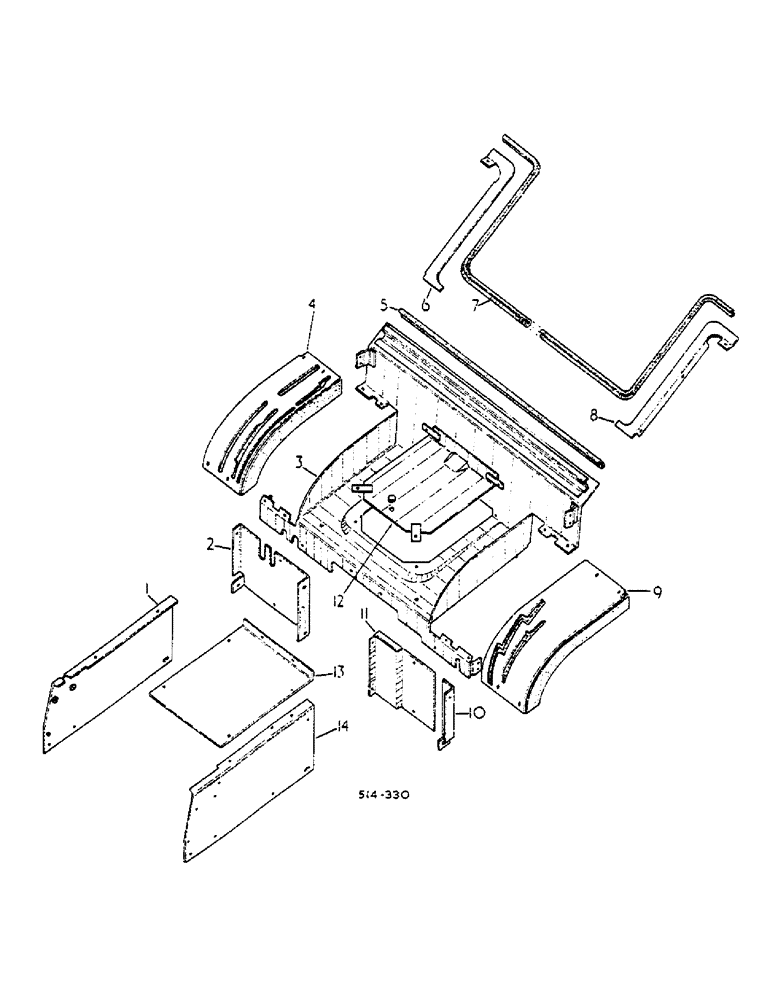

Запчасти Case IH 574 (13-128A) - REAR PANELS, - MACHINES FITTED W/ISO MOUNTED CAB - (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
3116176R1
PLATE ASSY.
PLATE ASSY, TRANS SIDE RH - 475, 574, 674 & 2500 MACHINES -
1шт.
1
3116178R1
PLATE
ASSY, TRANS SIDE R.H. - 454 & 2400 MACHINES -
1шт.
179799
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5
3шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
3шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Side plates to steering support 1/4"
3шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Side plate to platform 1/4"
4шт.
2
3116171R1
CHANNEL
REAR RH
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051 - REAR CHANNEL TO SEAT PLATFORM - - REAR CHANNEL TO TRANS SIDE PLATE - - REAR CHANNEL TO PLATFORM -
4шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
SCREW, 1/4-20 x 3/4 HEX HD CAP
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
109084
NUT,1/4"-20, G5
Rear channel to fender 1/4"-20, G5
1шт.
3
3116157R1
PLATFORM
SEAT CPTE.
1шт.
179795
TILLAGE BLADE
SCREW, 1/4-20 x 3/4 HEX HD CAP
8шт.
109084
NUT,1/4"-20, G5
8шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
8шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
8шт.
4
3116806R1
HOUSING
ASSY, HITCH CONTROL
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
5
3118651R1
SEAL
SEAL, UPPER
1шт.
6
3118650R1
SUPPORT
SEAL R.H.
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
SCREW, 1/4-20 HEX
2шт.
109084
NUT,1/4"-20, G5
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
23985R1
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
SCREW, SELF TAPPING, Hex Wash Hd, #10 x 1/2"
1шт.
7
3118652R1
SEAL
LOWER
1шт.
8
3118649
SUPPORT, SEAL L.H.
1шт.
179795
TILLAGE BLADE
SCREW, 1/4-20 HEX
2шт.
109084
NUT,1/4"-20, G5
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
23985R1
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
SCREW, SELF TAPPING, Hex Wash Hd, #10 x 1/2"
1шт.
9
3116802R1
HOUSING
TRANS SHIFT, CPTE. - SYNCHROMESH DRIVE TRACTORS -
1шт.
9
3116804R1
HOUSING
ASSY - HYDROSTATIC DRIVE TRACTORS -
1шт.
9
3116923R1
HOUSING
ASSY TRANS SHIFT CPTE. - FORWARD AND REVERSE -
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
188773
WASHER, .281 x .625 x .051
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
10
3118810R1
SPRING
CHANNEL, REAR VERTICAL OUTER LH
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Rear channel to platform 1/4"
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
SCREW, 1/4-20 x 3/4
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
109084
NUT,1/4"-20, G5
Rear channel to fenders 1/4"-20, G5
1шт.
11
3116808R1
CHANNEL
VERTICAL INNER L.H. - SYNCHROMESH DRIVE TRACTORS -
1шт.
11
3116927R1
CHANNEL
VERTICAL INNER L.H. - HYDROSTATIC DRIVE TRACTORS -
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Rear channel to seat platform, Rear channel to trans side plate, Rear channel to platforms 1/4"
4шт.
12
3116161R1
PLATE
CPTE. HOUSING COVER
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
538239R1
PLUG
GROMMET, COVER PLATE
1шт.
13
3116183R1
PLATE
TRANS COVER
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Cover plate to side plates 1/4"
4шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
2шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Cover plate to seat platform 1/4"
2шт.
14
3116174R1
PLATE
ASSY, TRANS SIDE L.H.
1шт.
179799
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5
3шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
3шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Side plates to steering support 1/4"
3шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 x .625 x .051
4шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, , Side plates to platform 1/4"
4шт.
Выбрано товаров: 77
