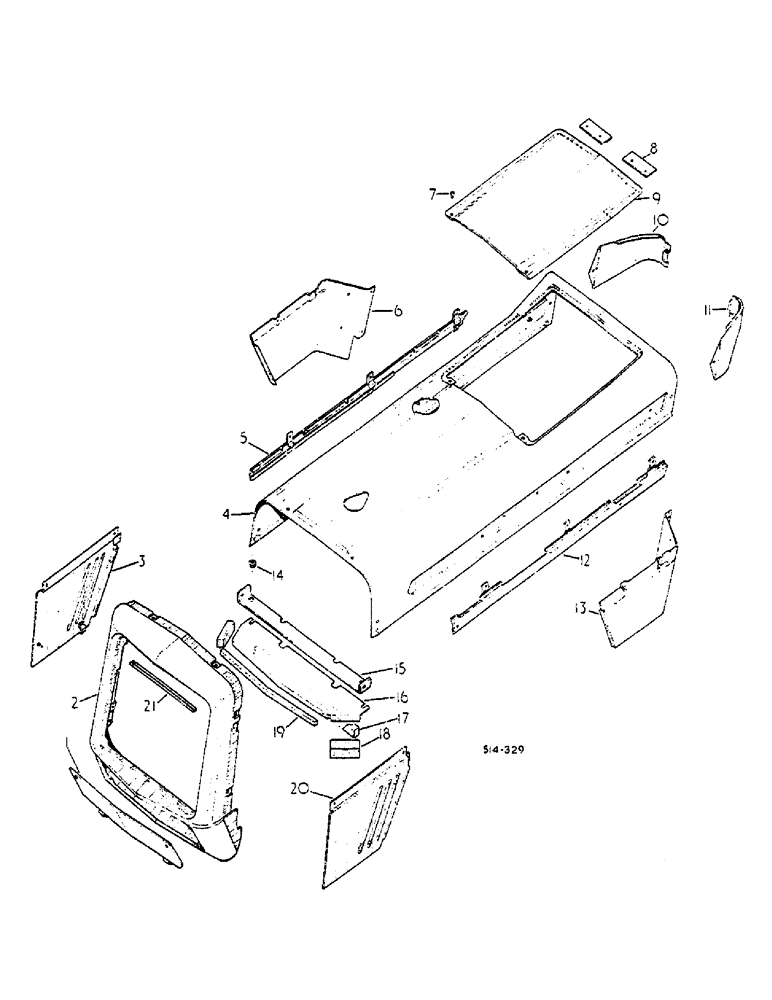

Запчасти Case IH 574 (13-124A) - HOOD AND FRONT PANELS, - MACHINE FITTED W/ISO MOUNTED CAB - (05) - SUPERSTRUCTURE

1

402427R1

PANEL

ASSY, GRILLE LOWER FRONT

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z CR REC TRUSS HD MACH

2шт.

2

537180R2

HOUSING

RADIATOR GRILLE

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

3

3116780R1

PANEL

ASSY, GRILLE SIDE R.H.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

4

3116904R1

HOOD

ASSY - TRACTOR W/UNDERSLUNG EXHAUST -

1шт.

4

3116900R1

HOOD

ASSY - TRACTOR W/VERTICAL EXHAUST -

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

6шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

6шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 GA

6шт.

381052R1

BOLT,Sl Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 C-Z HEX WASHER HD CAP

6шт.

534308R1

SHIELD

SHEET, ASBESTOS

1шт.

534458R1

NUT

HEX 10-24 LOCK

2шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 GA

2шт.

5

3116820R1

PANEL

ASSY, LOWER HOOD R.H.

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z CR REC TRUSS HD MACH

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

306442C1

SPACER

1шт.

6

3116814R1

PANEL

LOWER SIDE REAR RH

1шт.

127750

SCREW,Tap, Sl Rnd Hd, 1/4" - 14 x 1/2"

1/4-14 x 1/2 RD SLTD TAPPING

2шт.

106261

WASHER,1/4"

.312 x .734 x .05 PLAIN - STEERING SUPPORT INSULATOR TO LOWER PANEL -

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

Front lower panel to grille panel 1/4"-20, G5

1шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW

2шт.

376787R1

WASHER

X

2шт.

8

406698R1

STRIP

REAR HOOD COVER RETAINER

2шт.

147791

SCREW,Cross Rec Fil Hd, #10 - 24 x 5/8"

10-24 x 5/8 CR REC F HD MACH

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

110633

NUT,#10-24

Used w/glass fiber cover #10-24

4шт.

9

401933R11

COVER

ASSY, REAR, HOOD -GLASS FIBRE-

1шт.

3113425R1

COVER

ASSY, REAR, HOOD -SHEET METAL- - OPTIONAL -

1шт.

3118071R1

SEAL ASSY.

SEAL

1шт.

3118072R1

SEAL ASSY.

SEAL

2шт.

10

402424R1

PANEL

R.H.

1шт.

11

402423R1

PANEL

L.H.

1шт.

12

3116819R1

PANEL

ASSY, LOWER HOOD L.H.

1шт.

157728

SCREW

1/4-20 x 5/8 C-Z CR REC TRUSS HD MACH

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

306442C1

SPACER

1шт.

13

3116813R1

PANEL

LOWER SIDE REAR LH

1шт.

127750

SCREW,Tap, Sl Rnd Hd, 1/4" - 14 x 1/2"

1/4-14 x 1/2 RD HD SLTD TAP

2шт.

106261

WASHER,1/4"

.312 x .734 x .05 PLAIN - STEERING SUPPORT INSULATOR TO LOWER PANEL -

2шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

Front lower panel to grille panel 1/4"-20, G5

1шт.

14

3116891R1

BUSHING

GRILLE SUPPORT

2шт.

15

3116890R1

SUPPORT

GRILLE HOUSING

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 HEX HD CAP

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120389

WASHER,7/16"

.500 x 1.250 x .083

4шт.

16

402457R1

BAFFLE

RADIATOR LOWER

1шт.

17

394788R1

GASKET

GASKET, RADIATOR BAFFLE

1шт.

18

389838

GASKET, RADIATOR BAFFLE LOWER

2шт.

19

370181R1

GASKET

RADIATOR BAFFLE

1шт.

20

3116779R1

PANEL

ASSY, GRILLE SIDE LH

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

120392

WASHER,1/4", SAE

9/32 x .518 x .051

1шт.

21

- NOT APPLICABLE -

1шт.
