Запчасти Case IH 574 (13-122A) - CAB INSULATION, - MACHINE FITTED W/ISO MOUNTED CAB - (05) - SUPERSTRUCTURE

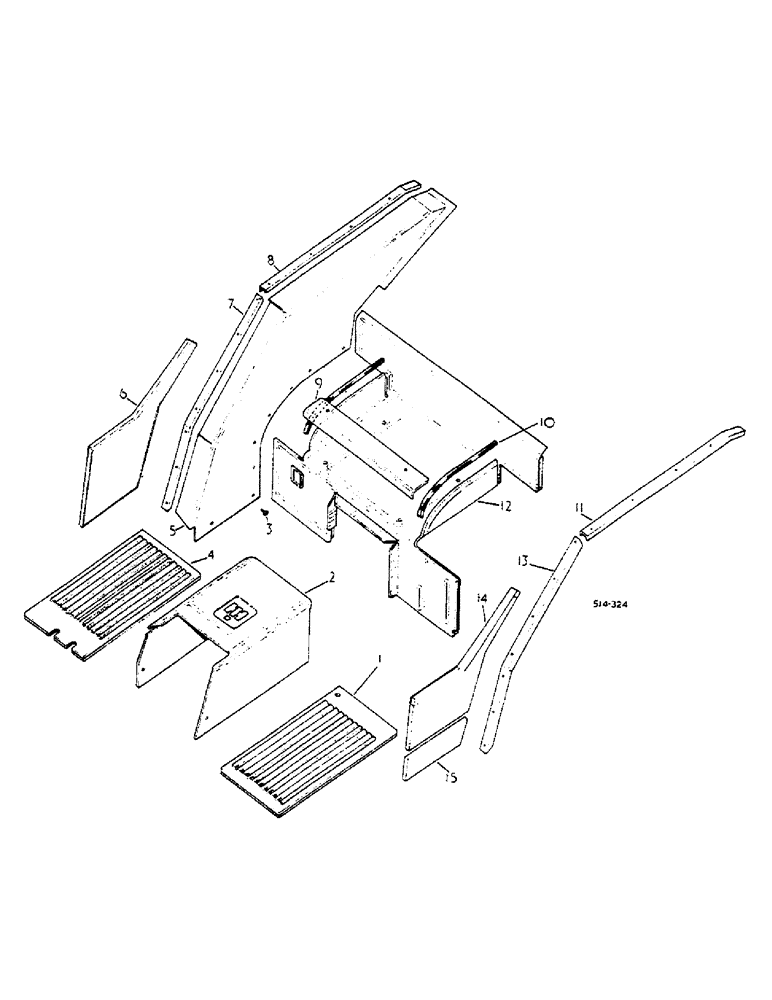

Схема запчастей Case IH 574 - (13-122A) - CAB INSULATION,    - MACHINE FITTED W/ISO MOUNTED CAB - (05) - SUPERSTRUCTURE
8
6
7
11
5
4
1
10
15
14
13
3
9
12
2

Артикул

Название

Примечание

Количество

1

3116832R1

INSULATOR

INSULATION, CPTE, FLOOR L.H.

1шт.

2

3116843R1

INSULATOR

CPTE. TUNNEL -475, 574, 674 & 2500 MACHINES -

1шт.

22470R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

SCREW, 1/4-20 x 3/4 HEX HD CAP

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 PLN

2шт.

2

3116838R1

INSULATOR

CPTE. TUNNEL -454 & 2400 MACHINES-

1шт.

22470R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

SCREW, 1/4-20 x 3/4 HEX HD CAP

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 PLN

2шт.

3

3118451R1

CLIP,ELECTRICAL

STUD, FENDER TRIM RETAINER

18шт.

4

3116833R1

INSULATOR

CPTE. FLOOR R.H.

1шт.

5

3118449R1

INSULATOR

FENDER TRIM L.H.

1шт.

5

3118450R1

INSULATOR

FENDER TRIM R.H.

1шт.

6

3118458R1

INSULATOR

DOOR R.H.

1шт.

7

3118455R1

RETAINER

FENDER FRONT INSULATOR RH

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW, SELF TAPPING, , Type AB Cross Oval Hd, #8 x 3/4"

7шт.

8

3118453R1

RETAINER

FENDER TOP INSULATOR RH

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW, SELF TAPPING, , Type AB Cross Oval Hd, #8 x 3/4"

4шт.

9

3116885R1

RETAINER

SEAT DECK INSULATOR -FRONT

1шт.

10

3118448R1

GASKET

MOULDING, INSULATOR

2шт.

11

3118452R1

RETAINER

FENDER TOP INSULATOR LH

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW, SELF TAPPING, , Type AB Cross Oval Hd, #8 x 3/4"

4шт.

12

3116871R1

INSULATOR

CPTE. SEAT DECK

1шт.

13

3118454R1

RETAINER

FENDER FRONT INSULATOR

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW, SELF TAPPING, , Type AB Cross Oval Hd, #8 x 3/4"

7шт.

14

3118456R1

INSULATOR

DOOR LH

1шт.

15

3118457R1

INSULATOR

DOOR LH LOWER PANEL

1шт.

Выбрано товаров: 25
