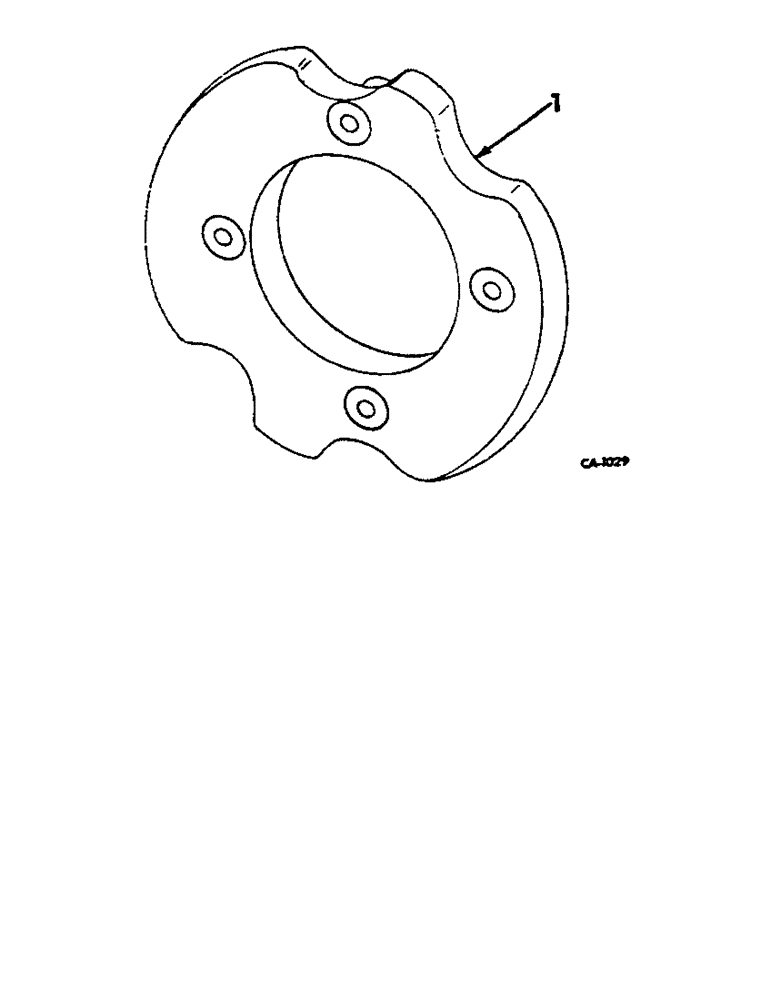

Запчасти Case IH 574 (02-02) - FRONT WHEEL WEIGHT Accessories & Attachments / Miscellaneous

1

3040050R1

WEIGHT

FRONT WHEEL - APPROX 44 LBS - FOR FIRST SET

2шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

SCREW 1/2-13 X 2-3/4 HEX-HD CAP

8шт.

103323

LOCK WASHER,1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.

1

3040050R1

WEIGHT

FRONT WHEEL - APPROX 44 LBS- FOR SECOND SET (INCLUDES 1ST SET)

4шт.

17783R1

BOLT,Hex, 1/2" - 13 x 4 5/8", Gr 2

SCREW 1/2-13 X 4-5/8 HEX-HD CAP

8шт.

103323

LOCK WASHER,1/2"

8шт.

102637

NUT,1/2"-13, G5

8шт.
