Запчасти Case IH 574 (13-120A) - SAFETY CAB - ISO MOUNTED (05) - SUPERSTRUCTURE

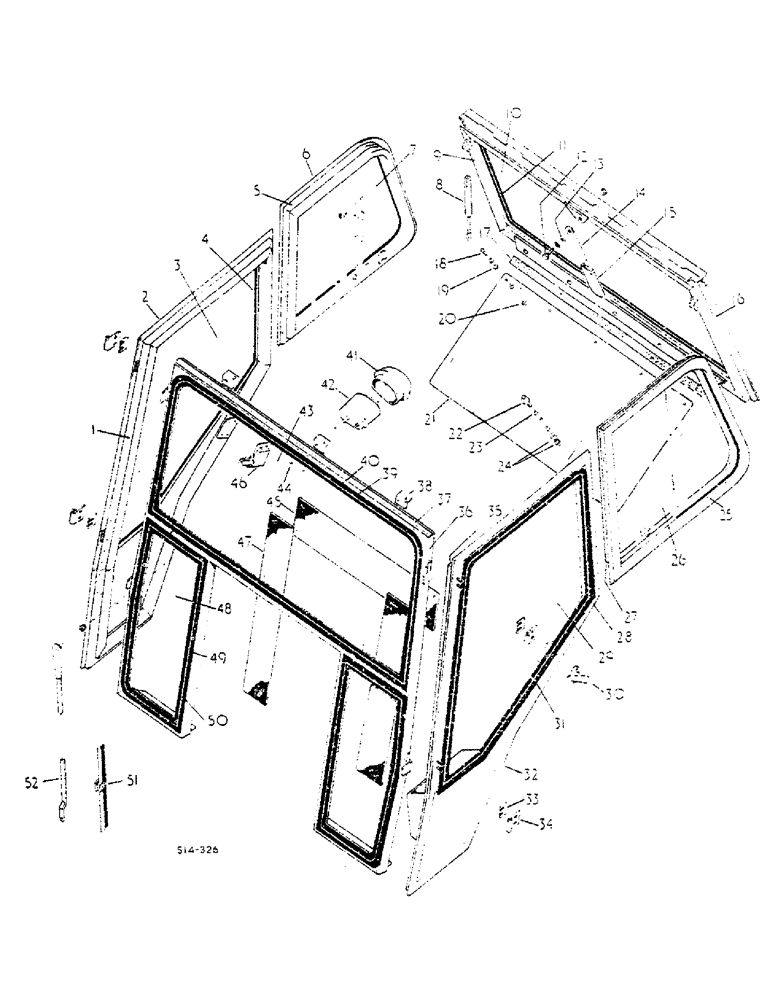

Схема запчастей Case IH 574 - (13-120A) - SAFETY CAB - ISO MOUNTED (05) - SUPERSTRUCTURE
23
10
28
11
42
47
36
39
38
49
15
9
33
21
20
3
46
34
8
6
26
51
1
6
4
5
48
50
12
30
40
19
32
45
18
17
13
52
44
27
37
14
41
7
31
2
25
22
24
43
35
29

Артикул

Название

Примечание

Количество

1

3113568R1

DOOR SEAL

SEAL, DOOR REAR 63.0 IN

1шт.

1

3113567R1

DOOR SEAL

SEAL, DOOR UPPER 25.3 IN

1шт.

1

3113570R1

SEAL

DOOR FRONT 58.0 IN

1шт.

1

3113569R1

DOOR SEAL

SEAL, DOOR LOWER 13.3 IN

1шт.

2

3118688R91

DOOR

CPTE. RH

1шт.

3

3118693R1

GLASS

1шт.

4

3112454R1

MOLDING

SEAL RH

1шт.

3113574R1

STRIP

DOOR BOTTOM 7.5 IN

1шт.

3113573R1

STRIP

DOOR ANGLE 24.7 IN

1шт.

3113572R1

STRIP

DOOR VERTICAL 25.1 IN

1шт.

3113571R1

STRIP

DOOR TOP AND FRONT 61.0 IN

1шт.

5

3113543R1

SEAL

SLIDING WINDOW 67.0 IN

1шт.

3113544R1

SEAL

SLIDING WINDOW 26.12 IN

1шт.

6

3118692R91

GLASS

WINDOW, SLIDING CPTE R.H.

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, 8-32 PAN HD CROSS RECESS TAP

4шт.

7

3118696R1

GLASS

SLIDING

1шт.

8

3118430R1

GAS STRUT

CYLINDER, GAS SPRING

2шт.

3118431R1

CLEVIS PIN

PIN, CLEVIS

2шт.

3118432R1

WASHER

4шт.

3053111R1

RING, SNAP,M10, Ext

RING, RETAINING

4шт.

9

3118424R91

FRAME

PANEL, CPTE. REAR WINDOW

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

6шт.

10

3118697R1

GLASS

1шт.

11

3112496R1

SEAL

1шт.

3113584R1

STRIP

FILLER TOP AND SIDES

1шт.

3113585R1

STRIP

REAR WINDOW BOTTOM

1шт.

12

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

495-21044

WASHER,3/8"

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

13

3062236R1

PAD

FRICTION

1шт.

3118686R1

COVER

REAR FRICTION PAD

1шт.

14

3118655R1

HANDLE

PLATE, LATCH

1шт.

15

3118656R1

GRIP

LATCH

1шт.

16

3112498R1

SEAL, GLASS

REAR WINDOW

2шт.

17

3118662R1

RUBBER SEAL

RUBBER

1шт.

18

3118660R1

BOLT

SHOULDER

5шт.

102394

WASHER

.406 x .812 x .051 PLAIN

5шт.

19

3118661R1

GROMMET

5шт.

20

3119440R1

LOCK NUT

1/4 PHILIDAS

5шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 PLAIN

5шт.

21

3118657R1

GLASS

LOWER REAR WINDOW

1шт.

22

3118658R1

DAMPER

RUBBER

1шт.

23

3118659R1

GROMMET

1шт.

24

3118685R1

LOCK NUT

6MM PHILIDAS W/PLASTIC CAP

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 PLAIN

1шт.

25

3118691R91

GLASS

WINDOW, SLIDING CPTE LH

1шт.

167047

SELF-TAP SCREW,Cross Pan Hd, #8 - 32 x 1/2"

SCREW, 8-32 PAN HD CROSS RECESS TAP TYPE D

4шт.

26

3118696R1

GLASS

SLIDING

1шт.

27

3113543R1

SEAL

SLIDING WINDOW 67.0 IN

1шт.

3113544R1

SEAL

SLIDING WINDOW 26.12 IN

1шт.

28

3113571R1

STRIP

FILLER DOOR TOP AND FRONT 61.0 IN

1шт.

3113573R1

STRIP

FILLER DOOR ANGLE 24.7 INS

1шт.

3113572R1

STRIP

FILLER DOOR VERTICAL 25.1 IN

1шт.

3113574R1

STRIP

FILLER DOOR BTM 7.5 IN

1шт.

29

3118693R1

GLASS

1шт.

30

3113466R91

HANDLE

OUTSIDE DOOR

2шт.

3112459R1

NUT

2BA

4шт.

3112458R1

SCREW

2BA x 5/8 CSK HEAD

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

31

3112453R1

SEAL, GLASS

SEAL, LH

1шт.

32

3118687R91

DOOR

CPTE LH

1шт.

33

3116641R1

BAR

DOOR HINGE - AS REQUIRED -

1шт.

34

3116642R1

SUPPORT

DOOR

1шт.

120392

WASHER,1/4", SAE

.281 x .685 x .051 PLAIN AND ZND - AS REQUIRED -

1шт.

3116643R1

LOCK NUT

PHILIDAS PLASTIC CAP 1/4 UNC

8шт.

35

3113567R1

DOOR SEAL

SEAL, DOOR UPPER 25.3 INS

1шт.

3113568R1

DOOR SEAL

SEAL, DOOR LOWER 13.3 INS

1шт.

3113569R1

DOOR SEAL

SEAL, DOOR REAR 63.0 INS

1шт.

3113570R1

SEAL

DOOR FRONT 58.0 INS

1шт.

36

3118689R91

WINDSHIELD

CPTE

1шт.

NLS

NO LONGER SERVICED

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 PLN

4шт.

37

3112425R1

SEAL

WINDSHIELD TOP

1шт.

38

3113566R1

ANGLE

WINDSHIELD MOUNTING

3шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 PLN

6шт.

39

3113555R1

SEAL

UPPER

1шт.

40

3113556R1

STRIP

FILLER WINDSHIELD TOP AND SIDES 93.4 INS

1шт.

40

3113557R1

STRIP

FILLER WINDSHIELD BOTTOM 45.4 INS

1шт.

41

3113075R2

GUARD

HEAD RUBBER

1шт.

42

3113074R91

ELECTRIC MOTOR

MOTOR CPTE. WINDSHIELD WIPER

1шт.

43

3118694R1

GLASS

UPPER

1шт.

44

3112426R1

GROMMET

RUBBER

2шт.

45

3113564R2

GASKET

SHEET, HORIZONTAL

1шт.

3116384R1

SELF-TAP SCREW

10-16 x 1 HEX HD SLT TAP

9шт.

46

3112460R91

HANDLE

LATCH AND HANDLE, INSIDE L.H.

1шт.

3112461R91

HANDLE

LATCH AND HANDLE, INSIDE R.H.

1шт.

178716

SCREW,#10 - 32 x 3/8"

10-32 x 3/8 TAP

8шт.

47

3112565R2

SHEET, VERTICAL

2шт.

3116384R1

SELF-TAP SCREW

10-16 x 1 HEX HD SLT TAP

10шт.

48

3118695R1

GLASS

LOWER

2шт.

49

3113559R1

SEAL

LOWER -LH-

1шт.

49

3113560R1

SEAL

LOWER -RH-

1шт.

50

3113561R1

STRIP

FILLER LOWER SCREEN OUTSIDE AND BOTTOM 36.6 IN

2шт.

50

3113562R1

STRIP

FILLER LOWER SCREEN INSIDE 27.9 INS

2шт.

50

3113563R1

STRIP

FILLER LOWER SCREEN TOP 10.5 INS

2шт.

51

3113077R1

BLADE

WIPER

1шт.

52

3113076R1

ARM

WIPER

1шт.

ref

Part No.

English

1шт.

3112438R1

GROMMET

WIPER ENTRY , PARTS NOT ILLUSTRATED

2шт.

3112436R91

CABLE

ASSY, WIPER , PARTS NOT ILLUSTRATED

1шт.

1092550R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, CAB WARNING ENGLISH , PARTS NOT ILLUSTRATED

1шт.

1092551R1

PRODUCT-GRAPHIC, CAB WARNING -GERMAN- , PARTS NOT ILLUSTRATED

1шт.

1092552R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, CAB WARNING -FRENCH- , PARTS NOT ILLUSTRATED

1шт.

1092554R1

PRODUCT-GRAPHIC, CAB WARNING -SPANISH- , PARTS NOT ILLUSTRATED

1шт.

1092996R1

PRODUCT GRAPHIC

PRODUCT-GRAPHIC, REAR WINDOW OPERATION -ENGLISH- , PARTS NOT ILLUSTRATED

1шт.

1092009R1

PRODUCT-GRAPHIC, REAR WINDOW OPERATION -GERMAN- , PARTS NOT ILLUSTRATED

1шт.

1093009R1

DECAL

PRODUCT-GRAPHIC, REAR WINDOW OPERATION -GERMAN- , PARTS NOT ILLUSTRATED

1шт.

1093010R1

DECAL

PRODUCT-GRAPHIC, REAR WINDOW OPERATION -FRENCH- , PARTS NOT ILLUSTRATED

1шт.

1093012R1

DECAL

PRODUCT-GRAPHIC, REAR WINDOW OPERATION -SPANISH- , PARTS NOT ILLUSTRATED

1шт.

192413

DRIVE SCREW,U, Rnd Hd, Metallic, #2 x 1/4"

NO. 4 x 1/4 RD HD DRIVE - USED W/SAFETY FRAME APPROVAL PLATE - , PARTS NOT ILLUSTRATED

2шт.

Выбрано товаров: 116
