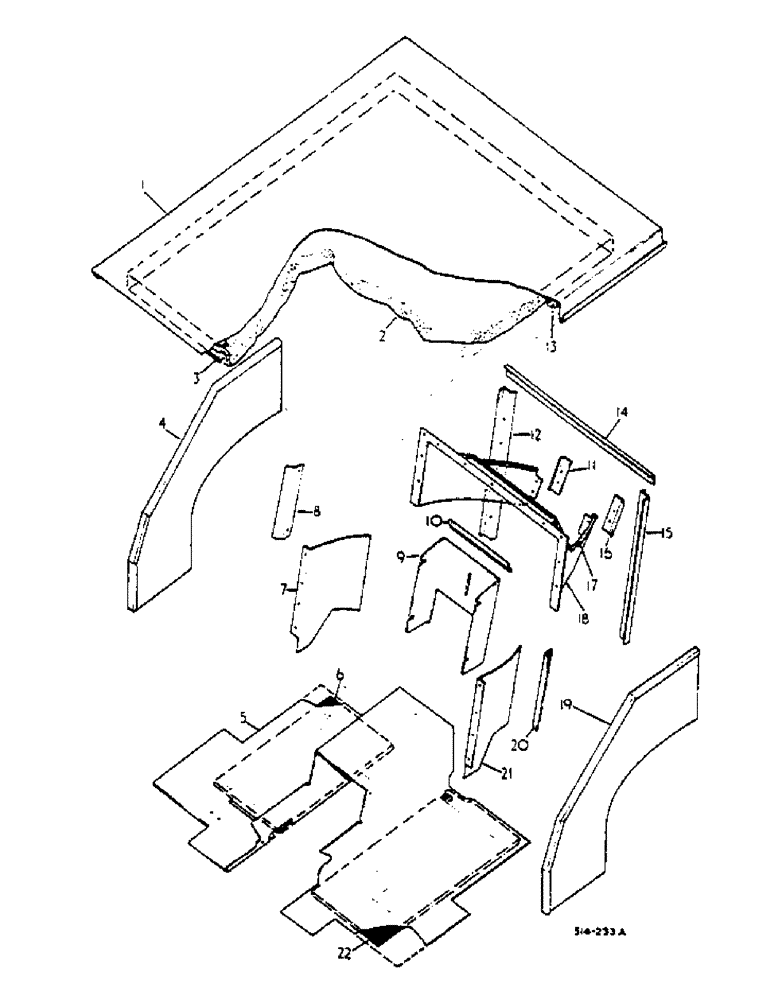

Запчасти Case IH 574 (13-032) - CAB, INSULATION, DE-LUXE (05) - SUPERSTRUCTURE

3116451R91

KIT SAFETY CAB CLADDING -CONSISTS OF UNITS MARKED -A-, BOSCH INJECTION

1шт.

KIT SAFETY CAB CLADDING -CONSISTS OF UNITS MARKED -B- -FACTORY APPLICATION-, BOSCH INJECTION

1шт.

3116459R91

KIT SAFETY CAB CLADDING -CONSISTS OF UNITS MARKED -C-, CAV INJECTION

1шт.

1

3116277R91

ROOF

PANEL, CPTE ROOF -UNIT -B-, CAV INJECTION

1шт.

2

3116278R1

LINING

INSULATOR -UNIT -B-, CAV INJECTION

1шт.

3

3113576R1

RUBBER SEAL

ROOF -UNIT -B-, CAV INJECTION

2шт.

4

3116280R1

PANEL, SIDE

INSULATOR ASSY, FENDER R.H., CAV INJECTION

1шт.

5

3112607R2

MAT

FLOOR CPTE., CAV INJECTION

1шт.

6

3116300R1

INSULATOR

FLOOR PLATE R.H., CAV INJECTION

1шт.

7

3116291R1

INSULATOR

LOWER REAR PANEL R.H., CAV INJECTION

1шт.

8

3116294R1

ANGLE

RETAINING R.H., CAV INJECTION

1шт.

19297R1

SPARE PART 1/4 REG LOCK CAD, CAV INJECTION

2шт.

3116385R1

SCREW

1/4 X 1-1/8 CROSS REC PAN HD MACH, CAV INJECTION

2шт.

9

3116292R1

RUBBER

INSULATOR, STEERING SUPPORT, CAV INJECTION

1шт.

10

3116295R1

RETAINER

INSULATOR, CAV INJECTION

1шт.

11

3116289R1

PLATE

RETAINING R.H., CAV INJECTION

1шт.

24405R1

SCREW

NO. 12-14 X 1 PAN HD CROSS RECESS, CAV INJECTION

2шт.

12

3116298R1

RETAINER

INSULATOR SIDE R.H., CAV INJECTION

1шт.

3116384R1

SELF-TAP SCREW

NO. 10 X 1 HEX WASHER HD, CAV INJECTION

6шт.

13

3113577R1

RUBBER SEAL

ROOF SIDE -UNIT -B-, CAV INJECTION

2шт.

14

3116296R1

RETAINER

INSULATOR TOP, CAV INJECTION

1шт.

3116384R1

SELF-TAP SCREW

NO. 10 X 1 HEX WASHER HD, CAV INJECTION

7шт.

15

3116297R1

RETAINER

INSULATOR SIDE L.H., CAV INJECTION

1шт.

3116384R1

SELF-TAP SCREW

NO. 10 X 1 HEX, CAV INJECTION

6шт.

16

3116288R1

PLATE

RETAINING L.H., CAV INJECTION

1шт.

24405R1

SCREW

NO 12-14 X 1 PAN HD CROSS RECESS, CAV INJECTION

2шт.

17

3116287R1

STRIP

MOULDING, INSULATOR, CAV INJECTION

1шт.

18

3116286R1

PANEL

INSULATOR ASSY, INSTRUMENT PANEL, CAV INJECTION

1шт.

19

3116279R1

PANEL, SIDE

INSULATOR ASSY, FENDER L.H., CAV INJECTION

1шт.

20

3116293R1

ANGLE

RETAINING L.H., CAV INJECTION

1шт.

19297R1

SPARE PART 1/4 REG LOCK CAD, CAV INJECTION

2шт.

3116385R1

SCREW

1/4 X 1-1/8 CROSS REC PAN HD MACH, CAV INJECTION

2шт.

21

3116290R1

PANEL, SIDE

INSULATOR, LOWER REAR PANEL L.H., CAV INJECTION

1шт.

22

3116299R1

PANEL, SIDE

INSULATOR, FLOOR PLATE L.H., AS IN AN ASSEMBLED FORM, CAV INJECTION

1шт.

3116274R91

TOP, FRAME AND FENDERS -UNIT -B-, NOT ILLUSTRATED

1шт.

1092861R1

PRODUCT GRAPHIC

-FUEL CONTROL- -UNITS -A AND B-, NOT ILLUSTRATED

1шт.

1092869R1

DECAL

PRODUCT-GRAPHIC -FUEL CONTROL- -UNIT -C-, NOT ILLUSTRATED

1шт.
