Запчасти Case IH 574 (13-020) - SAFETY FRAME, 574 UP TO S/N 10276, 2500 UP TO S/N 0601 (05) - SUPERSTRUCTURE

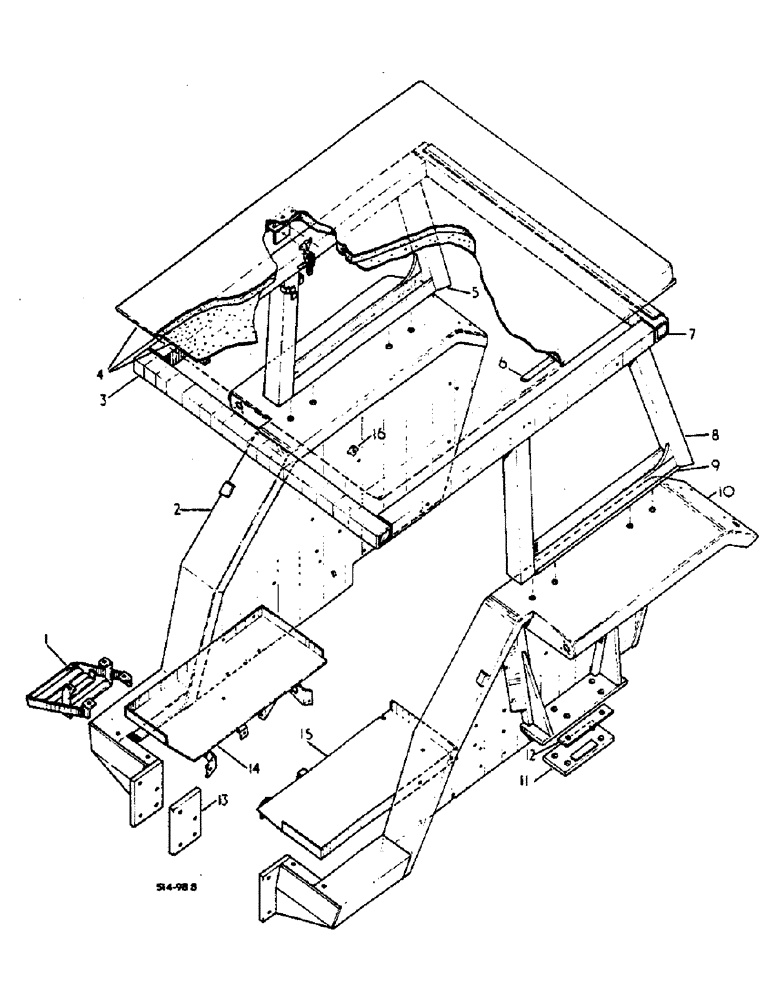

Схема запчастей Case IH 574 - (13-020) - SAFETY FRAME, 574 UP TO S/N 10276, 2500 UP TO S/N 0601 (05) - SUPERSTRUCTURE
13
2
14
3
7
11
16
6
9
10
8
5
1
15
12

Артикул

Название

Примечание

Количество

3113198R91

FRAME ASSY, SAFETY W/FRAME 3112382R91 -ORDER FRAME 3113196R92-

1шт.

3112382R92

FRAME ASSY, SAFETY -CONSISTS OF FRAME 3112383R91 W/PARTS REF NO 1, 2, 3, 4, 7, 9, 10, 11, 12, 13, 14, 15, -ORDER FRAME 3113282R93-

1шт.

3113258R91

FRAME ASSY, SAFETY W/SIDE PANELS 3112406R91 AND 3112407R91 -PART OF CAB ASSY 3111991R92- -CONSISTS OF FRAME 3113259R1- W/PARTS REF NOS 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 -ORDER FRAME 3113258R92, Start Serial: 05983

1шт.

INCLUDING 2500000527/UP

1шт.

INCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

3112405R91

FRAME ASSY, SAFETY W/SIDE PANELS 3112406R91 AND 3112407R91 PART OF CAB ASSY -CONSISTS OF FRAME 3112383R91 W/PARTS REF NO 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, Serial Range: -005982

1шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

3113259R91

FRAME ASSY, SAFETY -ORDER FRAME 3113258R92, Start Serial: 005983

1шт.

INCLUDING 2500000527/UP

1шт.

INCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

3112383R91

FRAME ASSY, SAFETY, Serial Range: -005982

1шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

1

3112533R1

STEP

FOOT

2шт.

1

3112391R1

STEP

FOOT L.H.

1шт.

1

3112392R1

STEP

FOOT R.H.

1шт.

ON ORDERS FOR STEP 3112391R1 OR 3112392R1 FURNISH STEP 3112533R1 W/FENDER DRILLING DIAGRAM.

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

8шт.

2

3112390R1

FENDER

RH -ORDER FRAME 3113258R92-

1шт.

3

3113256R1

FRAME

ASSY, SAFETY TOP-FRONT, Start Serial: 005983

1шт.

INCLUDING 2500000527/UP

1шт.

INCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

3

3112384R1

FRAME

SAFETY TOP-FRONT, Serial Range: -005982

1шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

4

3113246R91

ROOF

TOP ASSY -CONSISTS OF SEAL 3112490R1- -ORDER 3113575R91 W/TWO BOLT 180735 TWO NUT 3067470R1 AND TWO FIBRE WASHER-, Start Serial: 005983

1шт.

INCLUDING 2500000527/UP

1шт.

INCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

109084

NUT,1/4"-20, G5

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

SCREW PAN HD SLTD MACH 1/4-20 X 3/4

4шт.

709353R1

SEAL

WASHER, DOWTY SEALING

4шт.

120392

WASHER,1/4", SAE

5/8 X 9/32 X 16 GA

4шт.

110633

NUT,#10-24

6шт.

110530

SPARE PART 10-24 X 3/8 LONG FILL HD STD

1шт.

106497

LOCK WASHER,#10

6шт.

4

3112465R91

ROOF

TOP ASSY -CONSIST OF PLATE 3112467R1, LATCH 3112491R1 AND SEAL 3112490R1- -ORDER 3113575R91 W/TWO BOLT 180735 TWO NUT 3067470R1 AND TWO FIBRE WASHER-, Serial Range: -005982

1шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

3113236R1

SCREW

SELF TAPPING -USED TO SECURE CAB ROOF PEG BOARD-

1шт.

5

3113255R1

FRAME

ASSY, SIDE RH SAFETY, Start Serial: 005983

1шт.

INCLUDING 2500000527/UP

1шт.

INCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

5

3112387R1

FRAME

SAFETY SIDE RH -ORDER FRAME 3113255R1-, Serial Range: -005982

1шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

HEX HD 3/4 X 2-1/4

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

2шт.

280954

NUT,3/4"-10, G5

2шт.

495-11053

WASHER,1/2", SAE

PLAIN

4шт.

3112947R2

WASHER, PACKING

2шт.

3113328R1

INSERT

SAFETY FRAME

1шт.

6

3112490R1

STRIP

SEAL, ROOF

1шт.

7

3113257R1

FRAME

ASSY, SAFETY TOP-REAR, Start Serial: 005983

1шт.

INCLUDING 2500000527/UP

1шт.

INCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

7

3112385R1

FRAME

SAFETY TOP-GEAR, Serial Range: -005982

1шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

8

3113252R1

FRAME

ASSY, SAFETY SIDE LH, Start Serial: 005983

1шт.

INCLUDING 2500000527/UP

1шт.

INCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

8

3112386R1

FRAME

SAFETY SIDE LH -ORDER FRAME 3113252R1-, Serial Range: -005982

1шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

BOLT HEX HD 3/4 X 2-1/4

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

2шт.

220056

NUT HEX 3/4

2шт.

495-11053

WASHER,1/2", SAE

PLAIN

4шт.

3112947R2

WASHER, PACKING

2шт.

3113328R1

INSERT

SAFETY FRAME

1шт.

9

3112388R1

SEAL

SEAL, WING PIPING

2шт.

10

3112389R1

FENDER

LH -ORDER FRAME 3113258R92-

1шт.

11

3112396R1

PLATE

AXLE CLAMPING

2шт.

17287R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

HEX HD 3/4 X 7-1/2

8шт.

220081

NUT

HEX 3/4

8шт.

12

3112534R1

SHIM

AXLE CARRIER

2шт.

13

3112395R1

PLATE

SPARE PART FRONT SPACER

2шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

BOLT HEX HD 3/4 X 2-1/4

8шт.

14

3112394R2

PLATFORM RH

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8 X 3/4 SQ NK COACH

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120394

WASHER,3/8", SAE

13/32 X 13/16 X .051

2шт.

15

3112393R1

PLATE

PLATFORM, LH

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

3/8 X 3/4 SQ NK COACH

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120394

WASHER,3/8", SAE

13/32 X 13/16 X .051

2шт.

16

3113107R1

SUPPORT ASSY.

SOCKET, REAR WINDOW RETAINING

2шт.

109084

NUT,1/4"-20, G5

2шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

SCREW 1/4 X 5/8 HEX HD CAP

2шт.

103319

LOCK WASHER,1/4"

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

Fender Mounting Hardware

6шт.

80681

LOCK WASHER,5/16"

To rear top cover, Fender mounting hardware

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

Fender Mounting Hardware

2шт.

80681

LOCK WASHER,5/16"

To transmission shift control housing or draft control housing, Fender mounting hardware

2шт.

103320

LOCK WASHER,5/16"

Fender mounting hardware

2шт.

103321

LOCK WASHER,3/8"

Fender mounting hardware

4шт.

9635082

NUT,5/16" - 18, Gr 5

Fender Mounting Hardware

8шт.

103026

NUT,3/8"-24, G5

To fuel tank, Fender mounting hardware

4шт.

708194R92

BOX

TOOL CPTE, NOT ILLUSTRATED

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

HEX HD MACH 7/16 X 3/4, NOT ILLUSTRATED

2шт.

271500

SOCKET

HEX 7/16, NOT ILLUSTRATED

2шт.

103322

LOCK WASHER,7/16"

Lamp -side- -stop and tail- -see electrical group, not illustrated

2шт.

LAMP, PLOUGH -TRACTORS W/CAB- -SEE DETAIL LIST-, NOT ILLUSTRATED

1шт.

3112397R91

HARNESS

SPARE PART LH FENDER, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY LH FENDER, NOT ILLUSTRATED

1шт.

3112398R91

HARNESS

RH FENDER, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY RH FENDER, NOT ILLUSTRATED

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY RH FENDER, NOT ILLUSTRATED

1шт.

3112399R1

PLUG, FLASHER LAMP BLANKING, NOT ILLUSTRATED

2шт.

530043R1

GROMMET

NOT ILLUSTRATED

2шт.

3067818R1

CLIP, CABLE REAR AXLE LOCATION, NOT ILLUSTRATED

2шт.

192413

DRIVE SCREW,U, Rnd Hd, Metallic, #2 x 1/4"

DRIVE 4 X 1/4 RD HD -USED W/ SERIAL NO PLATE-, NOT ILLUSTRATED

4шт.

1092550R1

PRODUCT GRAPHIC

CAB WARNING, NOT ILLUSTRATED

1шт.

3112467R1

PLATE, EDGING, NOT ILLUSTRATED, Serial Range: -005982

2шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

3112491R1

LATCH

NOT ILLUSTRATED, Serial Range: -005982

2шт.

INCLUDING UP TO/ 2500000526

1шт.

EXCLUDING 5749 TO 5754, 5979 AND 5980

1шт.

3113421R91

KIT

PACKAGE, CAB ROOF FIELD -EXPORT- -FOR UP DATING MACHINES FITTED W/ROOF 3112465R91-, NOT ILLUSTRATED

1шт.
