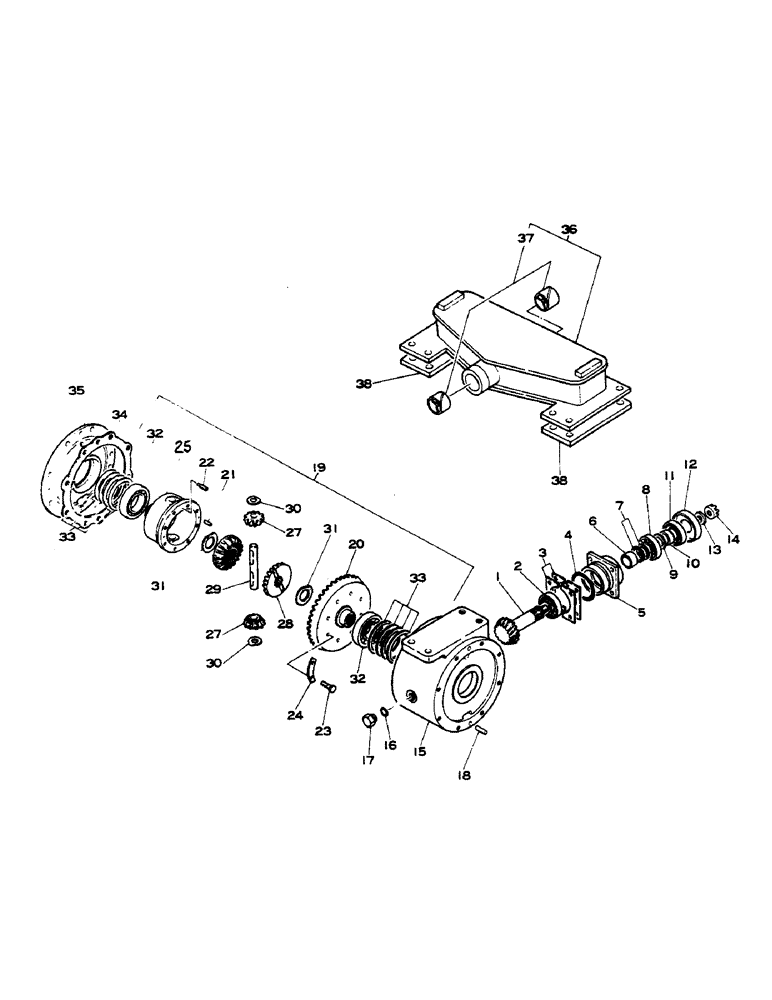

Запчасти Case IH 574 (07-116A) - DIFFERENTIAL, - 4 WHEEL DRIVE - (04) - Drive Train

1

1014543C91

GEAR-SET

SET, BEVEL GEAR GEAR BEVEL SHAFT PINION

1шт.

2

984144C2

BEARING

PINION, FRONT

1шт.

3

984143C1

SHIM

0.02 (0.5mm)

1шт.

984142C1

SHIM

0.008 (0.2mm) - AS REQUIRED -

1шт.

4

1014680C1

O-RING

1шт.

5

984633C2

RETAINER

PINION

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

131099

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

984636C1

SPARE PART

COLLAR

1шт.

7

984621C2

SHIM

0.004 (0.1mm)

1шт.

984622C2

SHIM

0.002 (0.05mm) - AS REQUIRED -

1шт.

8

984634C1

ROLLER BEARING,31.75 mm ID x 62.001 mm OD

PINION, REAR

1шт.

9

984635C1

GASKET

1шт.

10

984631C1

SPARE PART

COLLAR

1шт.

11

973559C1

OIL SEAL

SEAL, OIL

1шт.

12

1002409C1

COVER

OIL SEAL

1шт.

13

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

1шт.

14

425-1310

SLOTTED NUT,5/8"-18, G5

NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

15

984203C4

BOX

CASE, DIFFERENTIAL

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

17

9410360

PLUG

2шт.

18

974173C1

PIN

4шт.

19

984164C93

GEAR

ASSY, DIFFERENTIAL

1шт.

20

1014543C91

GEAR-SET

SET, BEVEL GEAR GEAR, BEVEL SHAFT, PINION

1шт.

21

1014966C1

PIN

DOWEL

2шт.

22

973686C2

BOLT,28mm L

SET

1шт.

23

931542R1

BOLT

8шт.

24

973687C1

LOCK WASHER

LOCK

4шт.

25

984117C2

CARRIER

DIFFERENTIAL

1шт.

26

984163C91

SET

GEAR - CONSISTS OF:

1шт.

27

984880C91

GEAR

PINION

2шт.

28

984078C1

GEAR

SIDE

2шт.

29

973692C3

PIN

PINION GEAR

1шт.

30

984882C1

THRUST WASHER

THRUST

2шт.

31

973694C2

THRUST WASHER

THRUST 0.085 (2.15mm)

1шт.

974001C2

THRUST WASHER

THRUST 0.08 (2.0mm)

1шт.

32

1014679C1

BEARING, BALL

BEARING

2шт.

33

973697C1

SHIM

0.002 (0.05mm)

1шт.

973698C1

SHIM

0.008 (0.2mm)

1шт.

973699C1

SHIM

0.012 (0.3mm)

1шт.

973700C1

SHIM

0.02 (0.5mm) - AS REQUIRED -

1шт.

34

973639C2

GASKET

REAR AXLE

1шт.

35

984205C1

CARRIER

1шт.

36

984781C94

SUPPORT

ASSY

1шт.

539128R1

SHAFT ASSY.

SHAFT ASSY FRONT AXLE PIVOT

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

173352

FITTING

1/8-27 PTF 90 DEG

1шт.

37

984912C1

BUSHING

PIVOT

2шт.

38

1014546C2

SPACER

2шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

6шт.

752904R1

NUT

NUT, LOCK 5/8-11 L.H. FRONT, REAR & R.H. FRONT

6шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, , RH rear - 475 Only 5/8"

2шт.

38

3121578R1

SPACER

2шт.

24882R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

6шт.

752904R1

NUT

NUT LOCK 5/8-11 L.H. FRONT, REAR & R.H. FRONT

6шт.

25510R1

BOLT,Hex, 5/8" - 11 x 3 3/4", Gr 8

SCREW, 5/8-11 x 3-3/4

2шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, , RH rear 5/8"

2шт.
