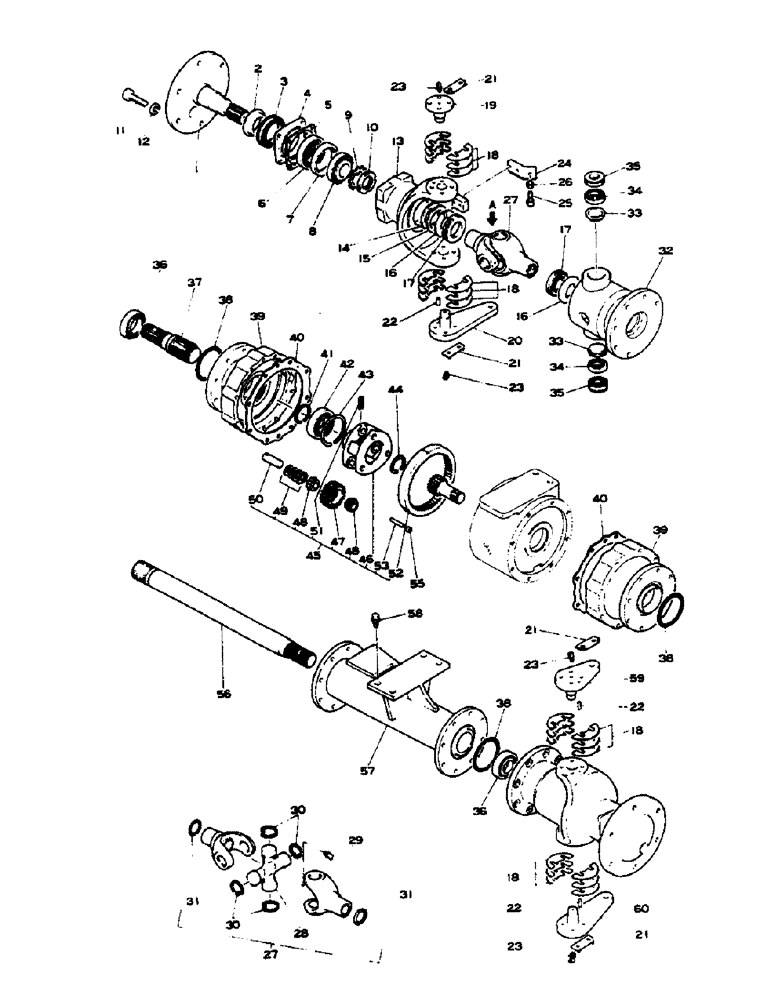

Запчасти Case IH 574 (07-114A) - FRONT AXLE, - 4 WHEEL DRIVE - (04) - Drive Train

1

1002930C1

SHAFT

AXLE

2шт.

2

984236C2

BUSHING

2шт.

3

973636C2

SEAL

WATER

2шт.

4

984482C1

SPARE PART

RETAINER

2шт.

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

SCREW, 5/16-18 x 1

8шт.

120638

LOCK WASHER

WASHER

8шт.

5

973640C1

GASKET,0.8mm Thk

2шт.

6

984232C1

TAPERED BEARING

OUTER

2шт.

7

984485C3

SPACER

2шт.

8

984488C2

BEARING, ROLLER

BEARING, INNER

2шт.

9

983235C3

LOCK WASHER

WASHER, LOCK

2шт.

10

983234C3

NUT

2шт.

11

979037C1

BOLT

12шт.

12

1014377C1

WASHER

12шт.

13

984204C8

HOUSING

KNUCKLE

2шт.

14

984497C1

SPRING

BELLEVILLE

2шт.

15

984498C1

WASHER

2шт.

16

984499C2

WASHER

4шт.

17

984147C4

SEAL

WATER

4шт.

18

984251C2

SHIM

0.002 (0.05mm)

1шт.

984137C3

SHIM

0.008 (0.2 mm)

1шт.

984138C2

SHIM

0.02 (0.05 mm)

1шт.

984653C2

SHIM

0.04 (1.0 mm) - AS REQUIRED -

1шт.

19

1002080C12

SHAFT

ASSY

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

SCREW, 1/2-13 x 1-3/8

4шт.

20

1002689C12

ARM

ASSY, STEERING

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

SCREW, 1/2-13 x 1-3/8

4шт.

21

984481C1

PLATE

LOCK

8шт.

22

19846R1

DOWEL,1/2" x 1 1/4"

PIN, DOWEL

6шт.

23

1005530C1

FITTING

GREASE

4шт.

24

984206C2

BRACKET

STOPPER

2шт.

101896R1

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 8, Full Thd

4шт.

131099

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

STOPPER 1/2-13 x 1-1/2

2шт.

26

25526R1

NUT,1/2"-13, G8

1/2-13

2шт.

27

984647C2

JOINT ASSY.

JOINT ASSY

2шт.

28

885518H1

SPIDER ASSY.

SPIDER, ASSY

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

30

181943H1

SEALING RING

RING, SNAP

8шт.

31

971220C1

RING

SNAP

4шт.

32

984122C6

HOUSING

AXLE

2шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 TO PLANET CARRIER HOUSING

8шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

SCREW, 1/2-20 x 2 TO CENTRE AXLE HOUSING

8шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, LOCK 1/2-20

16шт.

33

984613C2

PLUG

4шт.

34

984718C94

SPHERICAL BEARING,25mm ID x 52mm OD x 15.5mm W

4шт.

35

984146C2

SPRING

SEAL, WATER

4шт.

36

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING

2шт.

37

984130C4

SHAFT

R.H.

1шт.

38

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3шт.

39

984125C4

HOUSING

PLANET CARRIER

2шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

SCREW, 1/2-13 x 3, R.H.

8шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

SCREW, 1/2-13 x 2-3/4, L.H. TO DIFFERENTIAL CASE

8шт.

40

973639C2

GASKET

2шт.

41

327068R1

RING, SNAP

2шт.

42

1014679C1

BEARING, BALL

BEARING

2шт.

43

398334R1

SNAP RING

RING, SNAP

2шт.

44

1014353C1

RING

SNAP

2шт.

45

984165C91

SET

PLANET GEAR

2шт.

46

973612C1

SPARE PART

CARRIER, PLANET

2шт.

47

973613C1

GEAR

PLANET

6шт.

48

973614C1

ROLLER BEARING,20 mm ID x 33.5 mm OD

CONE

12шт.

49

973616C1

SHIM

0.008 (0.2mm)

1шт.

973617C1

SHIM

0.012 (0.3mm)

1шт.

973618C1

SHIM

0.02 (0.5mm)

1шт.

973619C1

SHIM

0.002 (0.05mm) - AS REQUIRED -

1шт.

50

973620C1

PIN

PLANET

6шт.

51

932448R1

LOCK PIN,M6 x 16, Slotted

PIN, ROLL

6шт.

52

973621C1

GEAR WHEEL

GEAR, RING

2шт.

53

973622C1

PIN

6шт.

54

984118C2

GEAR

SUN

2шт.

55

984141C1

SPACER

6шт.

56

984132C4

SHAFT

L.H.

1шт.

57

984786C3

HOUSING

AXLE CENTRE

1шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

SCREW, 1/2-20 x 2-1/4

8шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, LOCK 1/2-20 TO PLANET CARRIER HOUSING

8шт.

58

897218C1

BREATHER

1шт.

59

1002081C13

ARM

ASSY, CYLINDER

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

SCREW, 1/2-13 x 1-3/8

4шт.

60

1002690C12

ARM

ASSY, STEERING L.H.

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

SCREW, 1/2-13 x 1-3/8

4шт.
