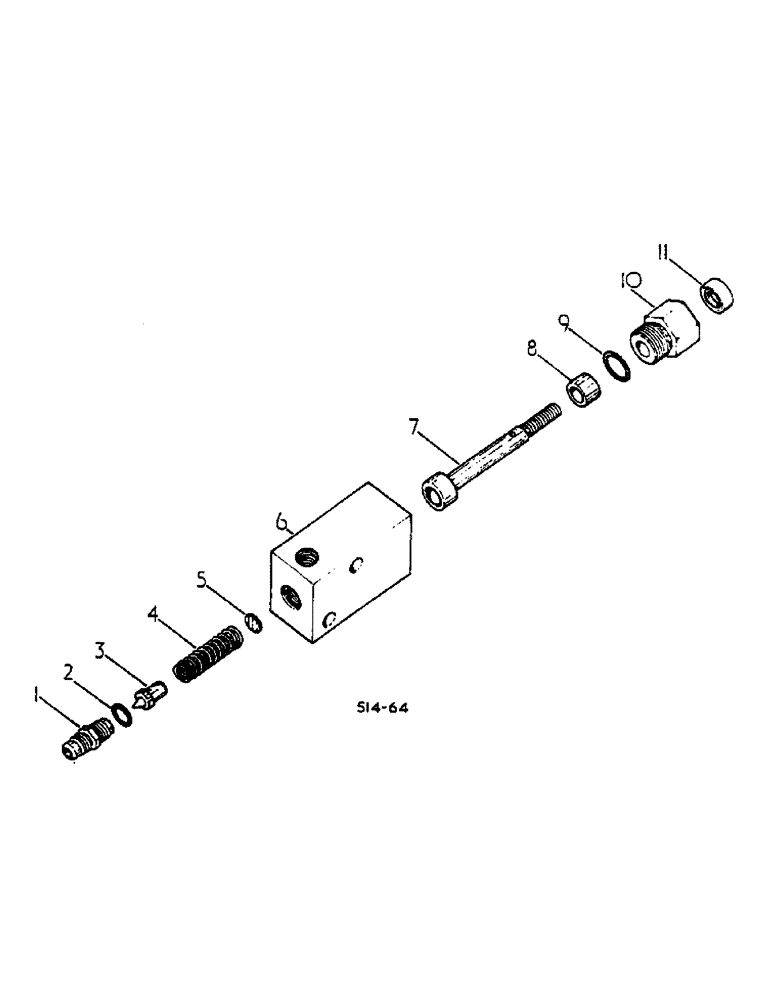

Запчасти Case IH 574 (07-086) - DECELERATOR VALVE, TWO POSITION (04) - Drive Train

404211R91

VALVE

ASSY DECELERATOR -INDUSTRIAL TRACTORS-

1шт.

1

398709R1

SEAT

POPPET VALVE

1шт.

3

398710R1

VALVE POPPET

1шт.

4

398731R1

SPRING

VALVE

1шт.

5

401293R91

PACKAGE

RELIEF VALVE SHIM (SERVICE)

7шт.

6

BODY, VALVE -ORDER VALVE 404211R91-

1шт.

7

398708R1

STOP

VALVE

1шт.

8

404212R1

SLEEVE

VALVE STOP

1шт.

9

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

1шт.

10

398707R1

GUIDE

VALVE SPRING STOP

1шт.

11

398701R1

SEAL

OIL -OPTIONAL TO 530101R1

1шт.

11

530101R1

SEAL, OIL -OPTIONAL TO 398701R1

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.
