Запчасти Case IH 574 (07-077) - DRIVE CONTROL AND FOOT-N-INCH VALVE TUBING, TRACTORS FITTED W/ HAND SPEED (04) - Drive Train

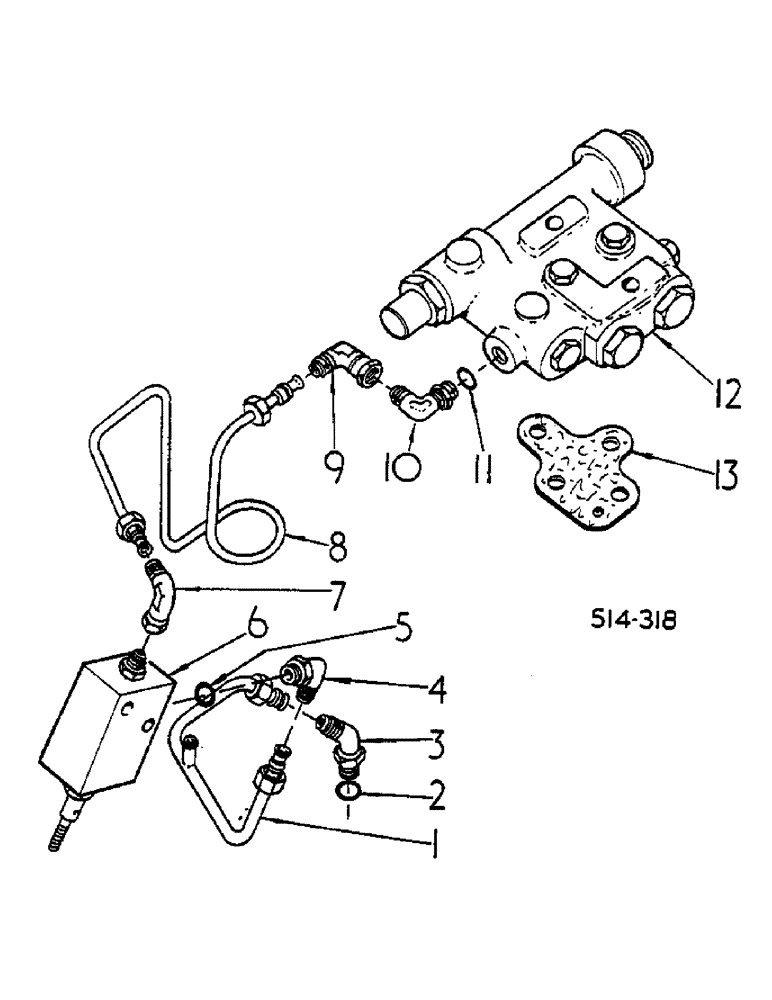

Схема запчастей Case IH 574 - (07-077) - DRIVE CONTROL AND FOOT-N-INCH VALVE TUBING, TRACTORS FITTED W/ HAND SPEED (04) - Drive Train
9
13
12
11
4
3
10
5
1
7
8
2
6

Артикул

Название

Примечание

Количество

1

529627R1

TUBE ASSY.

SPARE PART PILOT VALVE DUMP, CONTROLS

1шт.

3

9411103

ELBOW,45 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 45 DEG HS DRIVE UNIT

1шт.

4

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG FOOT-N-INCH

1шт.

6

398705R91

VALVE

VALVE ASSY, FOOT-N-INCH -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF FOOT-N-INCH VALVE-, CONTROLS

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW 3/8-16 X 2 ZND HEX-HD CAP

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

UNION, 7/16-20 C-Z 37 DEG HYD FLARED TUBE 90 DEG SWIVEL PILOT VALVE PRESSURE, CONTROLS

1шт.

8

3116968R1

TUBE ASSY.,0.25" OD, 6.54, 9.5" Length

PILOT VALVE PRESSURE

1шт.

8

529626R1

TUBE

ASSY, PILOT VALVE PRESSURE - ORDER TUBE 3116988R1 W/ELBOW 9410278 -

1шт.

9

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

7/16-20 C-Z 37 DEG. HYD FLARED

1шт.

10

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG DRIVE CONTROL

1шт.

12

401852R91

LOCK VALVE

ASSY, DRIVE CONTROL-FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF DRIVE CONTROL VALVE-, TUBE

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32

1шт.

13

405032R1

GASKET

DRIVE CONTROL VALVE

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW 3/8-16 X 3 ZND HEX-HD CAP

2шт.

42947V

CLEVIS PIN,1/4" x 1 1/8"

1/4 X 1-1/8 ROD END

1шт.

95-11028

WASHER,1/4"

9/32 X 5/8 X .051

1шт.

103362

COTTER PIN,1/16" x 3/4"

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube

1шт.

5

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube

1шт.

11

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Drive control valve

1шт.
