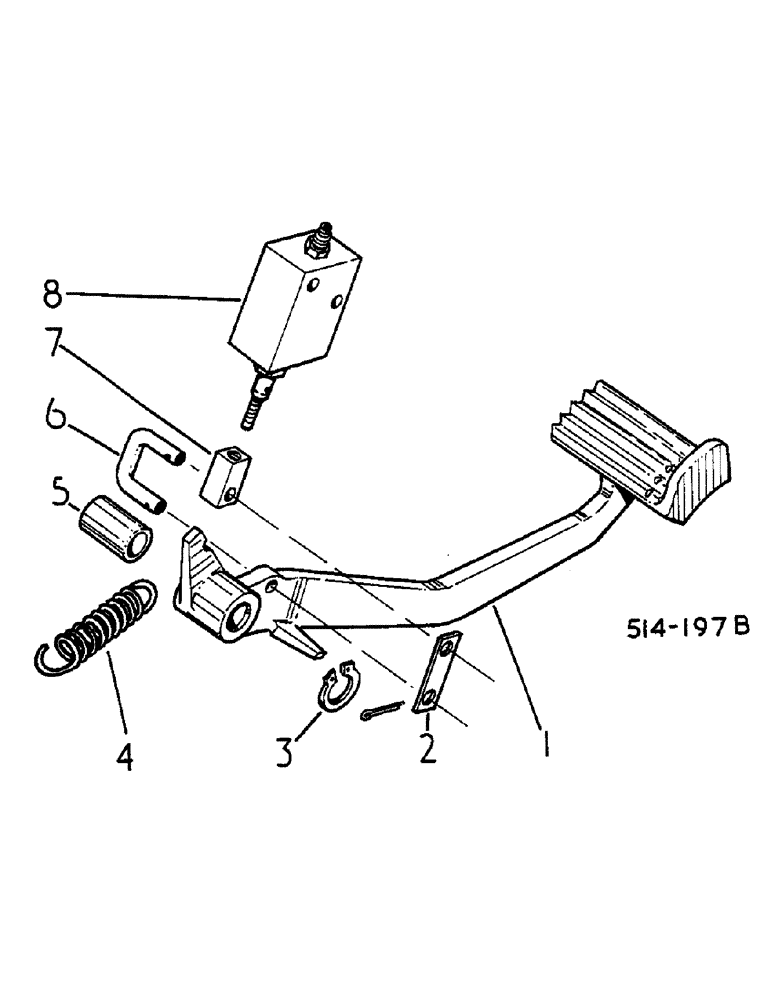

Запчасти Case IH 574 (07-076) - FOOT-N-INCH CONTROLS, TRACTOR FITTED W/H/SPEED CONTROLS (04) - Drive Train

1

530617R1

PEDAL ASSY, FOOT-N-INCH VALVE

1шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA

1шт.

21739R1

WASHER

11/32 X 9/16 X .054

1шт.

2

539557R1

PLATE

VALVE LINK

1шт.

3

454331R1

SNAP RING,#87, Ext

Clutch pedal

1шт.

4

539556R1

SPRING

RELIEF VALVE PEDAL RETURN

1шт.

5

539246R1

BUSHING

1шт.

6

534463R2

LINK ASSY.

FOOT-N-INCH VALVE

1шт.

103384

COTTER PIN,1/8" x 3/4"

2шт.

7

398766R1

UNION

CONNECTION, FOOT-N-INCH VALVE

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

8

398705R91

VALVE

ASSY, FOOT-N-INCH -FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF FOOT-N-INCH VALVE-

1шт.

399740R1

SHAFT

SHAFT PEDAL SUPPORT, NOT ILLUSTRATED

1шт.
