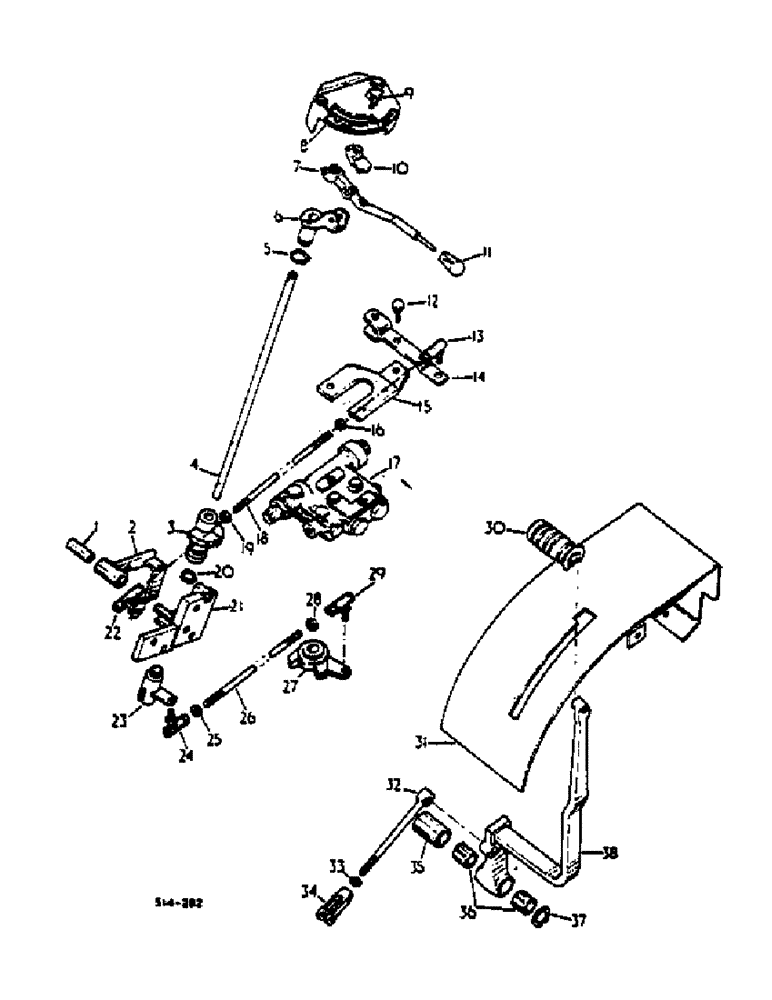

Запчасти Case IH 574 (07-071) - TRANSMISSION CONTROLS, HYDROSTATIC DRIVE, HAND SPEED CONTROL (04) - Drive Train

1

531350R1

BUSHING

1шт.

2

531348R22

LEVER

ASSY SHUTTLE CONTROL

1шт.

19962R1

DOWEL,3/8" x 3/4"

ALSO INCLUDES BUSHING 531350R1

1шт.

3

531360R1

SPARE PART

GATE ASSY, HYDROSTATIC CONTROL

1шт.

21072R1

PIN,3/16" x 1", Coiled

3/16" x 1", Coiled

1шт.

4

531344R1

ROD

CONTROL HANDLE

1шт.

20064R1

PIN,4.78mm OD x 31.75mm L

PIN 3/16 X 1-1/4

1шт.

5

454331R1

SNAP RING,#87, Ext

Control handle pivot bracket

1шт.

6

3112834R1

BRACKET

CONTROL HANDLE PIVOT

1шт.

82635H

CLEVIS PIN,5/16" x 1 3/8"

5/16 X 1-3/8 ROD END

1шт.

NLS

NO LONGER SERVICED

7/16 X 3/4 COTTER

1шт.

NLS

NO LONGER SERVICED

.750 X .312 X .051

1шт.

7

531341R2

HANDLE

HYDROSTATIC CONTROL

1шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

3/16 X 1-1/4 DOWEL

1шт.

8

534363R1

HOUSING

ASSY, HYDROSTATIC CONTROL

1шт.

154041

SCREW 5/16-18 X 2 C-Z CR-REC-FIL-HD MACH

2шт.

9

531340R1

KNOB

HYDROSTATIC CONTROL HANDLE FLUTED

1шт.

10

531339R2

STOP

HYDROSTATIC CONTROL HANDLE

1шт.

11

402584R1

BUTTON

CONTROL HANDLE

1шт.

21830R1

LOCK PIN,3/16" x 1 1/4", Slotted

3/16" x 1 1/4", Slotted

1шт.

12

531375R1

BOLT,3/8" - 16 x 1 1/16"

PIVOT

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

13

534930R1

BALL JOINT

3/8-24 X 1-11/32 LH-THD.

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

14

531373R11

LEVER ASSY.

SPARE PART SHUTTLE SPOOL CONTROL ROD

1шт.

21061R1

DOWEL,3/8" x 1/2"

PIN 3/8 X 1/2

2шт.

15

531372R1

BRACKET

SHUTTLE SPOOL CONTROL ROD

1шт.

16

23460R1

NUT,Jam, 3/8"-24, G5, LH

1шт.

17

401852R91

LOCK VALVE

ASSY, DRIVE CONTROL -FOR COMPONENTS, SEE LIST OF PARTS UNDER DRIVE CONTROL VALVE

1шт.

18

531359R1

ROD

SHUTTLE SPOOL CONTROL

1шт.

19

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

20

269181R1

SNAP RING,#75, Ext

speed control arm hub #75, Ext

1шт.

21

3113982R91

LATCH ASSY NEUTRAL GATE W/PIN

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

25562R1

PIN,1/2" x 2 1/4"

DOWEL 1/2 X 2-1/4

1шт.

22

392594R1

END ASSY.

JOINT 3/8-24 X 1-11/32 BALL

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

1шт.

23

531345R1

ARM ASSY.

SPEED CONTROL

1шт.

24

310673R1

BALL JOINT

5/16 X 2-3/8 C-Z

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

25

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

26

531358R1

ROD

SPEED CONTROL

1шт.

27

403516R1

ARM

CAM ACTUATING

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1 1/2", Coiled

1шт.

28

455332

NUT,Jam, 5/16"-18, G5, LH

5/16-24 ZN PLTD LH-THD HEX

1шт.

29

25472R1

BALL JOINT

5/16-24 X 2-3/8 CD PLTD LH THD HEX

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

80681

LOCK WASHER,5/16"

1шт.

30

528138R1

HANDLE

RANGE SHIFT UPPER LEVER

1шт.

426372

HEX SOC SCREW,3/8" - 16 x 2 3/4"

3/8-16 X 2-3/4 ZN SOC-HD CAP

1шт.

31

529385R21

HOUSING ASSY.

TRANSMISSION SHIFT PATTERN

1шт.

UP TO 000740 ORDER 529384R21 W/FIVE BOLT 181593 FIVE NUT 120368R1 AND FIVE WASHER 120214

1шт.

32

528739R1

ROD ASSY, RANGE SHIFT REAR

1шт.

33

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

34

213-316

ADJUSTABLE CLEVIS,3/8" - 24

3/8-24 X 2-3/16 SHORT ROD END

1шт.

34

161003C1

NO LONGER SERVICED

CLEVIS CLEVIS, 3/8-24 X 2-1/4 ROD END -OPTIONAL-

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

3/8 X 1-7/32 ROD END

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

2шт.

103373

COTTER PIN,3/32" x 3/4"

2шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

3/8 X 1-11/32 ROD END

1шт.

35

530934R1

SPACER

LEVER

1шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA

1шт.

36

539245R1

BUSHING

2шт.

37

454331R1

SNAP RING,#87, Ext

Shift lever w/bushings, item 36

1шт.

38

530536R1

LEVER

SPARE PART ASSY, RANGE SHIFT

1шт.

ref

Part No.

English Remarks

1шт.

533595R1

DECAL

PRODUCT-GRAPHIC -HYDROSTATIC CONTROL-, NOT ILLUSTRATED

1шт.
