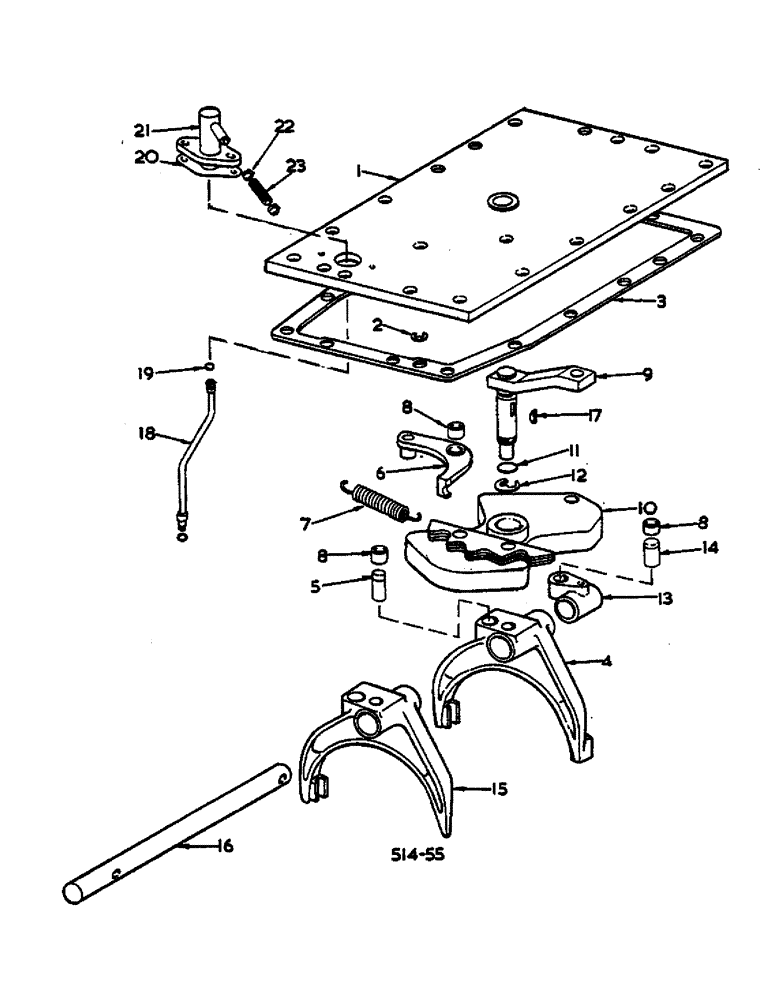

Запчасти Case IH 574 (07-065) - GEAR SHIFT MECHANISM, SPEED TRANSMISSION, UP TO S/N 10243, ALSO USED ON TRACTORS W/FORWARD & REVERSE (04) - Drive Train

1

402597R2

COVER

ASSY, CLUTCH HOUSING TOP

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

16шт.

11002VA

WASHER

17/32 X 7/8 X 1/16

1шт.

1

401618R11

COVER

ASSY, CLUTCH HOUSING TOP -TRACTORS W/TORQUE AMPLIFIER OR FORWARD AND REVERSE ATTACHMENT-

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

9410359

PLUG

3/4-16 STD-THD O-RING BOSS

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

2

370290R1

SNAP RING,#50, .392" Dia, E-Type

shifter control arm pivot pin #50, .392" Dia, E-Type

1шт.

3

401019R2

GASKET

CLUTCH HOUSING TOP COVER

1шт.

3

401621R2

GASKET

CLUTCH HOUSING TOP COVER -TRACTORS W/TORQUE AMPLIFIER OR FORWARD AND REVERSE ATTACHMENT-

1шт.

4

401697R91

YOKE

FORK ASSY, 3RD + 4TH SPEED SHIFT

1шт.

5

383438R1

DOWEL

1/2 X 1 DOWEL

1шт.

6

382565R21

ARM ASSY.

SHIFTER CONTROL

1шт.

7

383997R1

SPRING

SHIFTER CONTROL ARM

1шт.

8

380115R2

ROLLER

CAM

3шт.

9

404734R1

ARM ASSY.

CAM ACTUATING

1шт.

10

399454R92

CAM

ASSY, CLUTCH HOUSING SHIFT -15 MPH TRANSMISSION-

1шт.

10

399455R92

CAM

ASSY, CLUTCH HOUSING SHIFT -20 MPH TRANSMISSION-

1шт.

104186

RIVET

SPARE PART 5/16 X 1-3/8 CSK-HD SOLID

2шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 X 3/4 X 3/32 CAM PIVOT SHAFT

1шт.

12

603570R1

SNAP RING,#75, .574" Dia, E-Type

cam pivot shaft #75, .574" Dia, E-Type

1шт.

13

401694R11

HUB ASSY.

SPARE PART 1ST + 2ND SPEED SHIFT

1шт.

14

383438R1

DOWEL

1/2 X 1 DOWEL

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

2шт.

15

401695R2

FORK

1ST + 2ND SPEED SHIFT

1шт.

16

401696R1

ROD

1ST + 2ND SPEED SHIFT

1шт.

17

106751

KEY

3/16 X 3/4 WOODRUFF CAM PIVOT SHAFT

1шт.

18

534412R1

TUBE

ASSY, TRANSMISSION LUB.

1шт.

19

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 X 3/8 X 1/16

2шт.

20

534420R1

GASKET

PRESSURE LUB BODY COVER

1шт.

21

534415R91

SPARE PART CPTE PRESSURE LUB

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

1/4-28 X 5/8 HEX-HD CAP

2шт.

103319

LOCK WASHER,1/4"

2шт.

22

20894R1

NO LONGER SERVICED

CLAMP

1шт.

22

3112550R1

CLAMP

SCREW TYPE HOSE -OPTIONAL-

1шт.

23

537612R1

HOSE

1шт.
