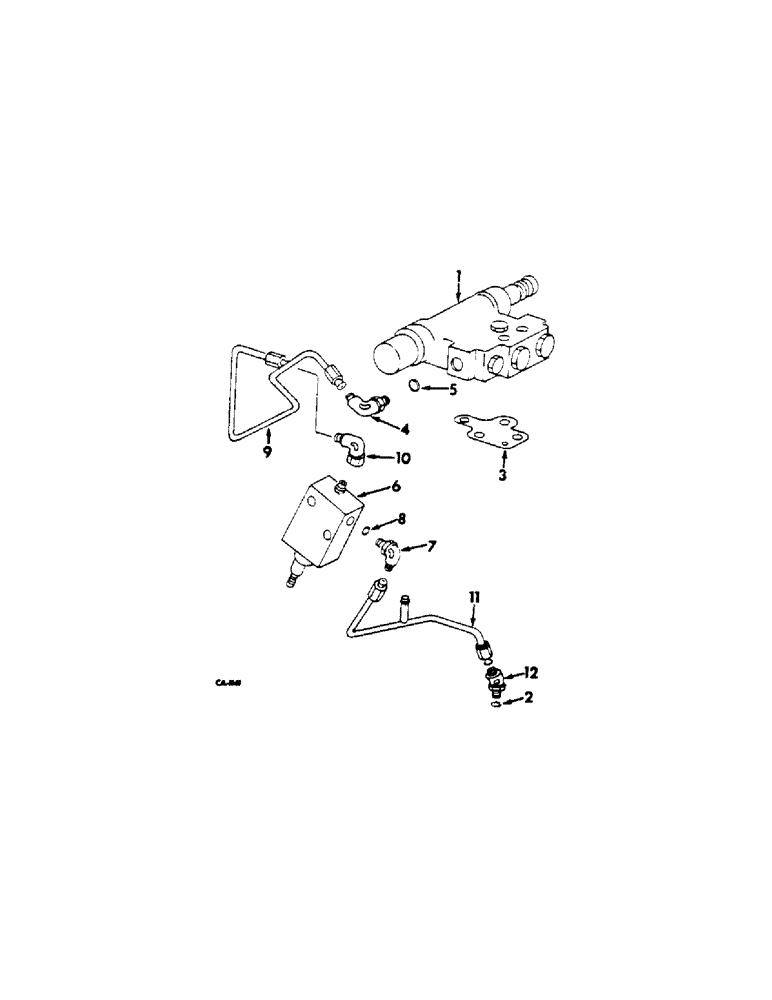

Запчасти Case IH 454 (07-44) - DRIVE TRAIN, DRIVE CONTROL AND FOOT-N-INCH VALVE TUBING (04) - Drive Train

1

401852R92

VALVE

ASSY, drive control, for components, see list of parts under details of drive control valve

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

3

405032R1

GASKET

drive control valve

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 znd hex-hd cap

2шт.

42947V

CLEVIS PIN,1/4" x 1 1/8"

PIN, 1/4 x 1-1/8 rod end

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .051

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

4

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

5

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

6

398705R91

VALVE

ASSY, foot-n-inch, for components, see list of parts under details of foot-n-inch valve

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

7

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 C-Z 37 deg hyd flared tube adj str thd 90 deg

1шт.

9

529626R1

TUBE

ASSY, pilot valve pressure

1шт.

10

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

UNION, 7/16-20 C-Z 37 deg hyd flared tube 90 deg swivel

1шт.

11

529627R1

TUBE ASSY.

TUBE ASSY, pilot valve dump

1шт.

12

9411103

ELBOW,45 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 C-Z 37 deg hyd flared tube adj str thd 45 deg

1шт.

2

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

8

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
