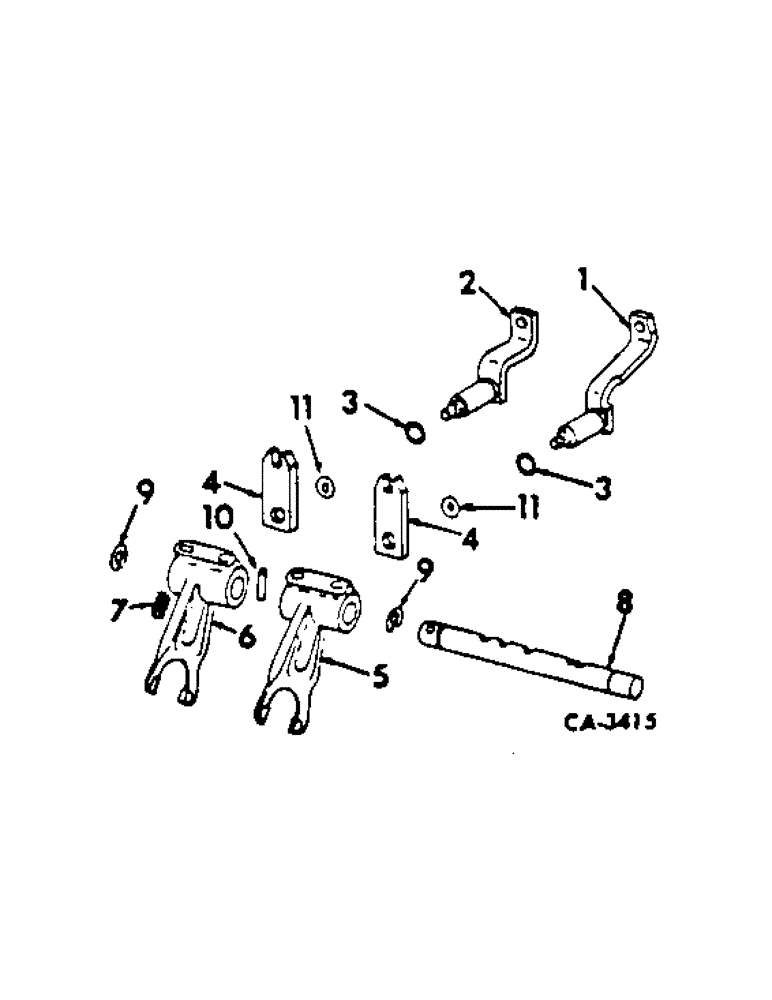

Запчасти Case IH 454 (07-33) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION (04) - Drive Train

1

405164R3

ARM ASSY.

ARM ASSY, range shift outer front, synchromesh transmission tractors

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 nylon insert

1шт.

2

405167R2

ARM

ASSY, range shift outer rear

1шт.

19605R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 nylon insert

1шт.

3

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 shift arm shaft, 1 used w/hydrostatic drive tractors, 2 used w/synchromesh transmission tractors

1шт.

4

405169R2

ARM

range shift inner, 1 used w/hydrostatic drive tractors, 2 used w/synchromesh transmission tractors

1шт.

5

402146R1

FORK, front, synchromesh transmission tractors, for service replacement on tractors w/skidded unit no. 19039 and below, furnish front fork 538911R3, rear fork 538912R3, 4 washer Q3501, fork rail 537473R1 and spring pin 20122R1

1шт.

5

537470R1

NO LONGER SERVICED

FORK, front, synchromesh transmission tractors, for service replacement on, tractors w/skidded unit no. 19040 and above, furnish front fork 538911R3 and 2 washer Q3501

1шт.

5

538911R3

FORK

front, synchromesh transmission tractors

1шт.

6

402146R1

FORK, rear, synchromesh transmission tractors, for service replacement on tractors w/skidded unit no. 19039 and below, furnish front fork 538911R3, rear fork 538912R3, 4 washer Q3501, fork rail 537473R1 and spring pin 20122R1

1шт.

6

402146R1

FORK, rear, hydrostatic drive tractors, for service replacement on tractors w/skidded unit no. 19039 and below furnish rear fork 538913R3 and 2 washer Q3501

1шт.

6

537472R1

NO LONGER SERVICED

FORK, rear, synchromesh transmission, tractors, for service replacement on tractor w/skidded unit no. 19040 and above, furnish rear fork 538912R3 and 2 washer Q3501

1шт.

6

402148R91

NO LONGER SERVICED

FORK, rear, hydrostatic drive tractors, for service replacement on, tractors w/skidded unit no. 19040 and above, furnish rear fork 538913R3 and 2 washer Q3501

1шт.

6

538912R3

NO LONGER SERVICED

FORK, rear, synchromesh transmission tractors

1шт.

6

538912R3

NO LONGER SERVICED

FORK, rear, hydrostatic drive tractors

1шт.

7

534053R1

SPRING

poppet ball, 1 used w/hydrostatic drive tractors, 2 used w/synchromesh transmission tractors

2шт.

17013R1

BALL,13/32" Dia

l, 1 used w/hydrostatic drive tractors, 2 used w/synchromesh transmission tractors 13/32" Dia

2шт.

8

402149R1

RAIL ASSY.

RAIL, range shift fork, synchromesh transmission tractors, for service replacement on tractors w/skidded unit no. 19039 and below, furnish front fork 538911R3, rear fork 538912R3, 4 washer Q3501, fork rail 537473R1 and spring pin 20122R1

1шт.

8

537473R1

RAIL ASSY.

RAIL, range shift fork, synchromesh transmission tractors, tractors w/skidded unit no. 19040 and above

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

8

402150R1

RAIL

range shift fork, hydrostatic drive tractors

1шт.

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

9

661652R1

SNAP RING,#75, Ext

Shift fork rail, 1 used w/hydrostatic drive tractors, 2 used w/synchromesh transmission tractors #75, Ext

1шт.

10

20122R1

PIN,1/4" x 1 1/2", Coiled

Tractors w/skidded unit no. 19040 and above 1/4" x 1 1/2", Coiled

1шт.

11

Q3501

WASHER

25/32 x 1-1/4 x .060, 2 used hydrostatic drive, 4 used synchromesh transmission tractors, tractors w/skidded unit no. 19040 and above

1шт.
