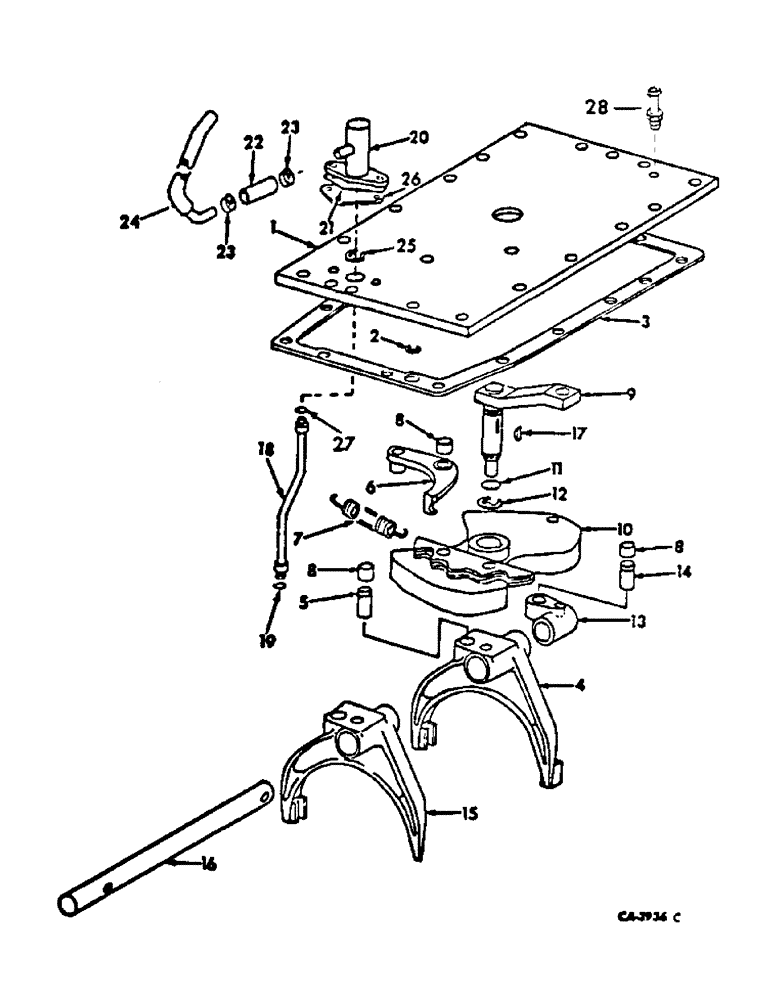

Запчасти Case IH 454 (07-31) - DRIVE TRAIN, GEAR SHIFT MECHANISM, SPEED TRANSMISSION (04) - Drive Train

1

105827C1

COVER

ASSY, clutch housing top, tractors without forward-reverse or draft control, on orders for cover 402597R2, furnish cover 105827C1 and adapter 105826C1

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

16шт.

11002VA

WASHER

17/32 x 7/8 x .065

1шт.

9410359

PLUG

3/4-16 std-thd o-ring boss

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

1

105829C1

COVER

ASSY, clutch housing top, tractors with draft control, on orders for cover 67197C2 furnish cover 105829C1 and adapter 105826C1

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

16шт.

11002VA

WASHER

17/32 x 7/8 x .065

1шт.

9410359

PLUG

3/4-16 std-thd o-ring boss

1шт.

570828T1

O-RING, 1/2 OD tube

1шт.

1

105828C1

COVER

ASSY, clutch housing top, tractors with forward-reverse, on orders for cover 401618R12 furnish cover 105828C1 and adapter 105826C1

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

14шт.

2

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, , shifter control arm pivot pin #50, .392" Dia, E-Type

1шт.

3

401019R2

GASKET

clutch housing top cover, tractors without forward-reverse and with or without draft control

1шт.

3

401621R2

GASKET

clutch housing top cover, tractors with forward-reverse

1шт.

4

401697R91

YOKE

FORK ASSY, 3rd & 4th speed shift, includes ref no. 5

1шт.

5

383438R1

DOWEL

PIN, 1/2 x 1 dowel

1шт.

6

382565R21

ARM ASSY.

ARM ASSY, shifter control

1шт.

7

383997R1

SPRING

shifter control arm

1шт.

8

380115R2

ROLLER

cam

3шт.

9

404734R1

ARM ASSY.

ARM ASSY, cam actuating

1шт.

10

399455R93

CAM

ASSY, clutch housing shift

1шт.

104186

RIVET

5/16 x 1-3/8 csk-hd solid

2шт.

11

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32 cam pivot shaft o-ring

1шт.

12

603570R1

SNAP RING,#75, .574" Dia, E-Type

Ring, Retaining, , cam pivot shaft #75, .574" Dia, E-Type

1шт.

13

401694R11

HUB ASSY.

HUB ASSY, 1st and 2nd speed shift, includes ref no. 14

1шт.

14

383438R1

DOWEL

PIN, 1/2 x 1 dowel

1шт.

25155R1

PIN,1/4" x 1 1/4", Coiled

1/4" x 1 1/4", Coiled

2шт.

15

401695R2

FORK

1st and 2nd speed shift

1шт.

16

401696R1

ROD

1st and 2nd speed shift

1шт.

17

106751

KEY

3/16 x 3/4 Woodruff cam pivot shaft key

1шт.

18

534412R1

TUBE

ASSY, transmission lub, 454 tractors and 2400 series A tractors with serial no. 100003 and below

1шт.

18

66199C2

TUBE ASSY, transmission lub, 2400 series A tractors with serial no. 100004 and above without forward-reverse

1шт.

18

65736C1

TUBE,0.25" OD, 7.26, 0.62" Length

ASSY, transmission lub, 2400 series A tractors with serial no. 100004 and above with forward-reverse

1шт.

19

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16

1шт.

20

534415R91

BODY COMPLETE, pressure lub, 454 tractors and 2400 series A tractors with serial no. 100003 and below

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

56548C1

BODY ASSY, pressure lub, 2400 series A gasoline engine tractors with serial no. 100004 and above with forward-reverse

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

534420R1

GASKET

pressure lub body cover

1шт.

22

537612R1

HOSE

to lub regulator valve, replaces 530129R1, 454 tractors and 2400 series A tractors with serial no. 100003 and below

1шт.

22

66201C1

HOSE,0.25" ID x 6.00", SAE 30R2 Type 1 Class 1

Lubrication Tube, 2400 Series A Tractors with Serial No. 100004 and Above with Draft Control 0.25" ID x 6.00", SAE 30R2 Type 1 Class 1

1шт.

22

530127R1

HOSE,0.31" ID x 1.70"

2400 Series A gasoline engine tractors with serial no. 100004 and above with forward-reverse 0.31" ID x 1.70"

1шт.

23

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

24

56549C1

TUBE, pressure lub, 2400 series A gasoline engine tractors with serial no. 100004 and above with forward-reverse

1шт.

25

269181C1

RING, external retaining, 2400 series A tractors with serial no. 100004 and above

1шт.

26

539536R1

COVER

lub pressure, 2400 series A tractors with serial no. 100004 and above with flat plate

1шт.

181311

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

SCREW, 1/4-28 x 5/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/4 x 1/16, used with tube 534412R1 and 65736C1

1шт.

27

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 x 1/16, used with tube 69199C2

1шт.

28

105826C1

ADAPTER

1шт.
