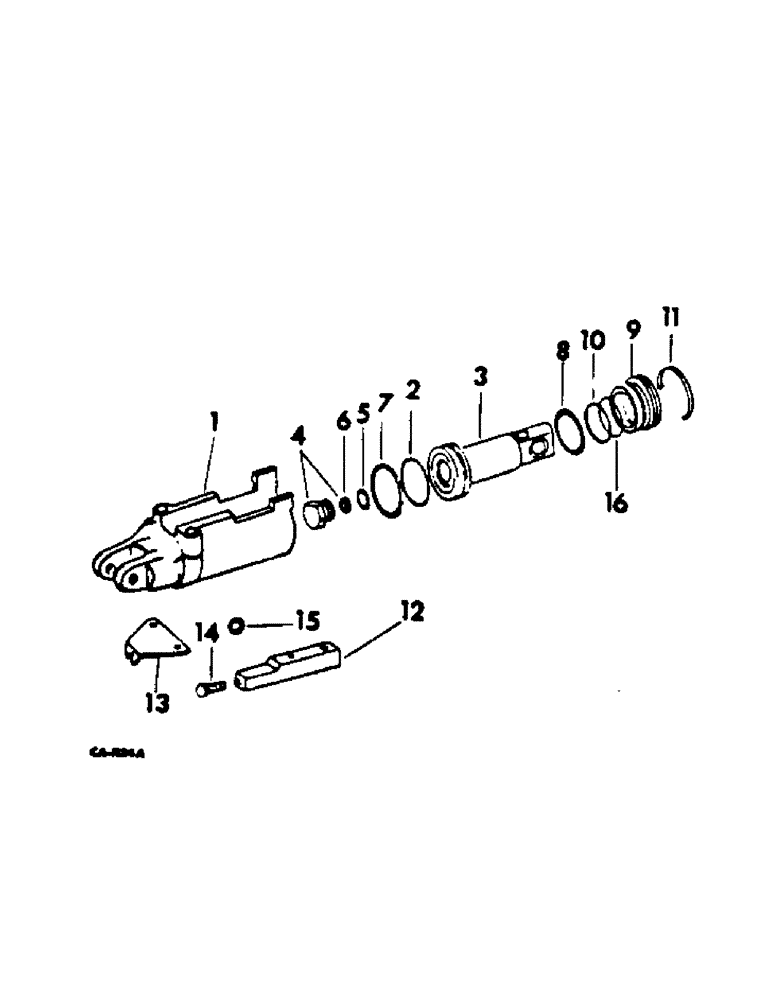

Запчасти Case IH 454 (07-10) - DRIVE TRAIN, PUMP SERVO CYLINDER (04) - Drive Train

CYLINDER ASSY, pump servo

1шт.

1

401079R1

BODY

1шт.

2

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1-3/8 x 1-9/16 x 3/32

1шт.

3

401080R1

PISTON

1шт.

4

401082R11

PLUG

ASSY, fixed orifice, tractors with hand controls

1шт.

4

535851R11

PLUG

ASSY, fixed orifice, tractors with foot controls

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

6

529960R1

STRAINER ELEMENT

STRAINER

1шт.

7

405311R1

RING

piston sealing

1шт.

8

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 x 1-13/16 x 3/32

1шт.

9

401084R1

GUIDE

1шт.

10

405310R1

RING

guide sealing inner

1шт.

11

388968R1

ELECTRICAL WIRE

WIRE, retaining

1шт.

12

401086R1

BLOCK

tractors with hand controls

1шт.

12

401086R12

BLOCK ASSY.

BLOCK W/PIN, variable orifice adj, tractors with foot controls

1шт.

69786C1

PIN

5/16 x 7/8 dowel

1шт.

13

401087R1

BRACKET

adj block

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 11/16 hex-hd cap

2шт.

14

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

adj block

1шт.

15

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

16

347070R1

O-RING,1.301" ID x 0.07" Width

1-15/16 x 1-7/16 x 1/16

1шт.

401088R91

STRIPPER PACKAGE

1шт.

PACKAGE, pump servo cylinder o-ring and seal service, consists of (1) o-ring 379141R1 (NSS), (1) ring 405311R1 (NSS), (1) o-ring 570828R1 (NSS), (1) ring 405310R1 (NSS), (1) o-ring 328138R1 (NSS), (1) o-ring 392385R1 (NSS), (1) ring 396109R1 (NSS), (1) o-ring 369751R1 (NSS), (1) sleeve 134630H1 (NSS), (1) o-ring 347070R1 (NSS)

1шт.
