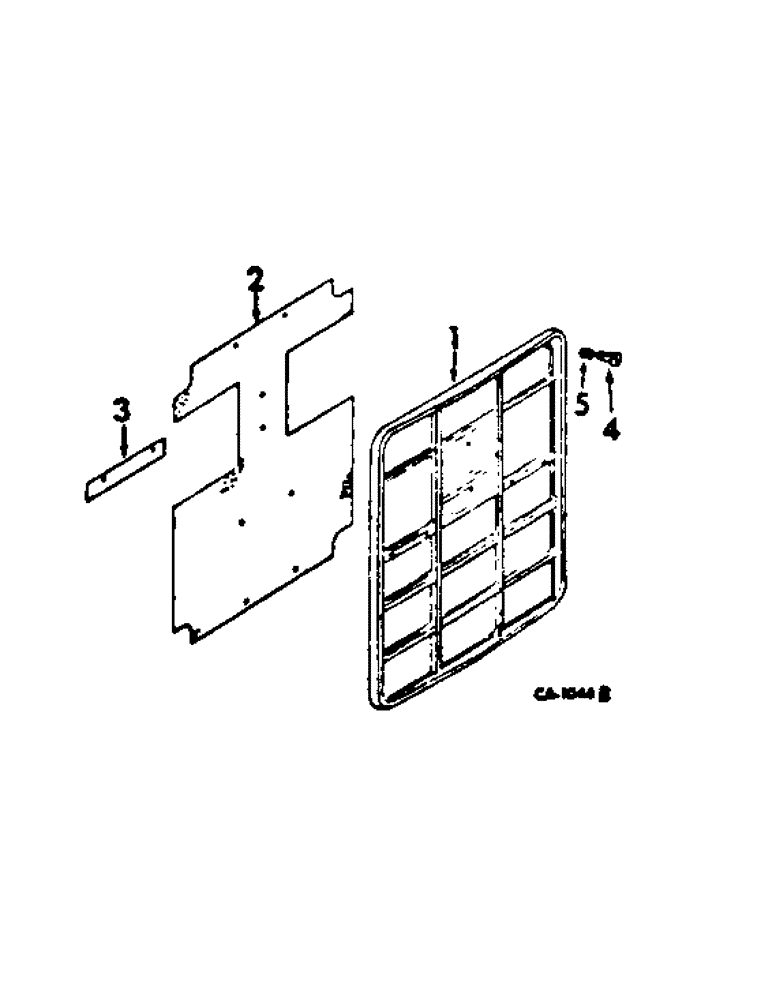

Запчасти Case IH 454 (06-07) - COOLING, RADIATOR GRILLE Cooling

1

528153R2

GRILLE

radiator, die cast, on order for grille 528153R2 furnish 537496R1, two latch 3113470R1, two washer Q397, two pin 26052R1 and two screws 436750

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 hex-washer-hd tap

4шт.

1

537496R1

GRILLE

radiator, plastic

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 hex-washer hd tap

2шт.

2

528155R3

SCREEN

grille

1шт.

3

532192R1

BRACKET

grille retaining

1шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

2шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 hex-washer-hd tap

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 slt-pan-hd mach, used w/grille 66521C1

2шт.

4

532178R1

LATCH

ASSY, grille, used w/grille 528153R2

2шт.

22971R1

PIN

5/32 x 1-1/4 HV-coiled spring

1шт.

4

3113470R1

PIN

LATCH ASSY, grille, used w/grille 537496R1

2шт.

26052R1

PIN,3/16" x 1 1/2", Coiled

1шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

5

532180R1

SPRING

grille latch

2шт.
